Currently, due to the increasing amount of concurrent access by service consumers, the runtime performance of both the Client and Vendor services has worsened and has therefore reduced their effectiveness as service composition members. Additionally, a review of the logic of both services has revealed that some of the business rules used by the Client and Vendor services are actually the same. What steps can be taken to improve performance and reduce redundant business rule logic?

  • A. The Rules Centralization pattern can be applied by extracting the business rule logic from the Client and Vendor services and placing it into a new Rules service, thereby reducing the redundancy of business rules logic. The Redundant Implementation pattern can then be applied to establish a scalable Rules service that is capable of supporting concurrent access from many service consumers.
  • B. The Redundant Implementation pattern can be applied to the Client and Vendor services, thereby establishing duplicate service implementations that can be accessed when a service reaches its runtime usage threshold. The Intermediate Routing pattern can be further applied to provide load balancing logic that can, at runtime, determine which of the redundant service implementations is the least busy for a given service consumer request.
  • C. The Rules Centralization pattern can be applied to isolate business rules logic into a central and reusable Rules service. Additionally, the Service Abstraction principle can be applied to hide the implementation details of new the Rules service.
  • D. None of the above.


Answer : A

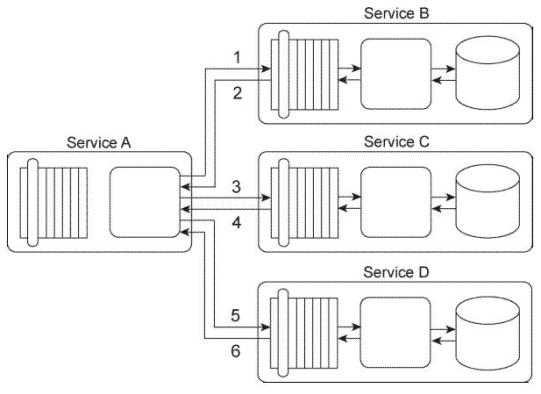

Service A is a task service that is required to carry out a series of updates to a set of databases in order to complete a task. To perform the database updates Service A must interact with three other services, each of which provides standardized data access capabilities.
Service A sends its first update request message to Service B (1), which then responds with a message containing a success or failure code (2). Service A then sends its second update request message to Service C (3), which also responds with a message containing a success or failure code (4). Finally, Service A sends a request message to Service D (5), which responds with its own message containing a success or failure code (6).


You've been given a requirement that all database updates must either be completed successfully or not at all. This means that if any of the three response messages received by Service A contain a failure code, all of the updates carried out until that point must be reversed. Note that if Service A does not receive a response message back from Services
B, C, or D, it must assume that a failure has occurred. How can this service composition architecture be changed to fulfill these requirements?

  • A. The Reliable Messaging pattern can be applied to guarantee the delivery of positive or negative acknowledgements. This way, Service A will always be informed of whether a failure condition has occurred with any of the database updates performed by Services B, C, and D. Furthermore, the Service Loose Coupling principle can be applied to ensure that the request and response messages exchanged by the services do not contain any implementation details that would indirectly couple Service A to any of
  • B. The Atomic Service Transaction pattern can be applied individually to Services B, C, and D so that each of these services performs its own database update within the scope of an atomic transaction. If anyone update fails, that change can be rolled back on that database. Furthermore, the Service Loose Coupling principle can be applied to ensure that Service A is kept out of the scope of the atomic transaction so that it is not negatively coupled to the proprietary database technologies that are r
  • C. The Compensating Service Transaction can be applied to Service A so that when any one response message containing a failure code is received by Service A, it can invoke exception handling logic that will log the failed database updates. The Service Loose Coupling principle can be further applied to ensure that Services B, C, or D are not indirectly coupled to the exception handling logic, especially if Service A requires additional access to Services B, C, or D in order to collect more informati
  • D. None of the above.


Answer : D

  • A. The Legacy Wrapper pattern can be applied together with the Standardized Service Contract principle to position a standardized service contract between the legacy system and any services that require access to it. This effectively establishes a new utility service dedicated to the encapsulation of the legacy system. When the legacy system is replaced, the utility service can keep its standardized service contract. To build the utility service, the Data Format Transformation pattern is applied to
  • B. The Legacy Wrapper pattern can be applied together with the Official Endpoint pattern so that the Service A service contract is positioned as the sole access point for the legacy system. The Data Format Transformation pattern is applied to enable the conversion between the proprietary legacy system file format and the XML format used in the Service A service contract. Finally, the Contract Centralization pattern is applied so that Service A is forced to only access the legacy system via its publ
  • C. The Legacy Wrapper pattern can be applied together with the Data Format Transformation pattern and the Standardized Service Contract principle in order to establish an intermediate layer of standardized transformation logic that is positioned between the legacy system and Services A, B, and C. This way, if the legacy system is replaced, the services will not be affected because of the abstraction established by the standardized transformation layer.
  • D. None of the above.


Answer : A

Service A is an orchestrated task service that is invoked by a separate composition initiator
(1) and then sends a request message to Service C (2). Service C queries Database B to retrieve a large data record (3) and provides this data in a response message that is sent

  • A. Atomic Service Transaction
  • B. Compensating Service Transaction
  • C. Data Format Transformation
  • D. Data Model Transformation
  • E. Event-Driven Messaging
  • F. Intermediate Routing
  • G. Policy Centralization
  • H. Process Centralization
  • I. Protocol Bridging
  • J. Redundant Implementation K. Reliable Messaging L. Service Data Replication M. State Repository


Answer : H,L,M

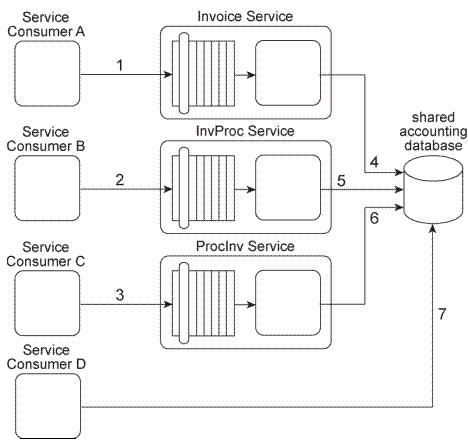

Our service inventory contains the following three services that provide invoice-related data access capabilities: Invoice, InvProc, and Proclnv. These services were created at different times by different project teams and were not required to comply to any design standards.
Therefore each of these services has a different data model for representing invoice data.
Currently each of these three services has one service consumer: Service Consumer A accesses the Invoice service(1). Service Consumer B (2) accesses the InvProc service, and Service Consumer C (3) accesses the Proclnv service. Each service consumer invokes a data access capability of an invoice-related service, requiring that service to interact with the shared accounting database that is used by all invoice-related services (4,
5, 6).
Additionally, Service Consumer D was designed to access invoice data from the shared accounting database directly (7). (Within the context of this architecture. Service Consumer
D is labeled as a service consumer because it is accessing a resource that is related to the illustrated service architectures.)


A project team recently proclaimed that it has successfully applied the Contract
Centralization pattern to the service inventory in which the Invoice service, InvProc service, and ProcInv service reside. Upon reviewing the previously described architecture you have doubts that this is true. After voicing your doubts to a manager, you are asked to provide specific evidence as to why the Contract Centralization is not currently fully applied. Which of the following statements provides this evidence?

  • A. The Contract Centralization pattern is not fully applied to the Invoice, InvProc, and ProcInv services because they are being accessed by different service consumers and because they have redundant logic that introduces denormalization into the service inventory.
  • B. The Contract Centralization pattern is not fully applied because Service Consumer D is accessing the shared accounting database directly.
  • C. The Contract Centralization pattern is not fully applied because none of the invoice- related services are carrying out data access logic via a centralized and standardized invoice service. This is primarily because the Standardized Service Contract principle was not consistently applied during the delivery processes of the individual services.
  • D. None of the above.


Answer : B

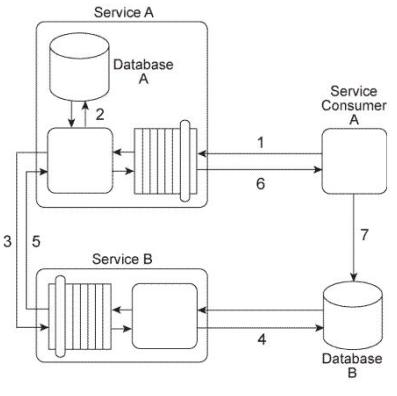

Service Consumer A sends a message with a business document to Service A (1), which writes the business document to Database A (2). Service A then forwards the business document to Service B (3), which writes the business document to Database B (4).
Service B then responds to Service A with a message containing a failure or success code
(5) after which Service A responds to Service Consumer A with a message containing a failure or success code (6). Upon receiving the message, Service Consumer A updates a log table in Database B (7). The log entry is comprised of the entire business document.
Database A is dedicated to the Service A service architecture and Database B is a shared database.


You are told that the database updates performed by Service A and Service B must be either both successful or they cannot happen at all. The database update performed by
Service Consumer A must happen after it is given the outcome of the database updates performed by Service A and Service B . Given that Service Consumer A must also update
Database B as part of this service composition architecture, how is it possible to fulfill these requirements?

  • A. The State Repository pattern can be applied so that Service A writes the business document data to a separate state database until it receives a response message from Service B . If the response message contains a success code, Service A writes the business document to Database A. If the response contains a failure code, Service A discards the data that was written to the state database.
  • B. The Service Data Replication pattern can be applied to Service Consumer A and Service B so that separate dedicated databases can be established allowing Service Consumer A to make updates independently of Service B . Service A is simply redesigned to not write the business document to Database A until after it receives a message containing a success code from Service B.
  • C. The Atomic Service Transaction pattern can be applied to encompass Service A, Service B and Service Consumer A. This will guarantee that all of the actions performed by the service composition participants will either be successful or will be rolled back if anyone is not successful.
  • D. None of the above.


Answer : D

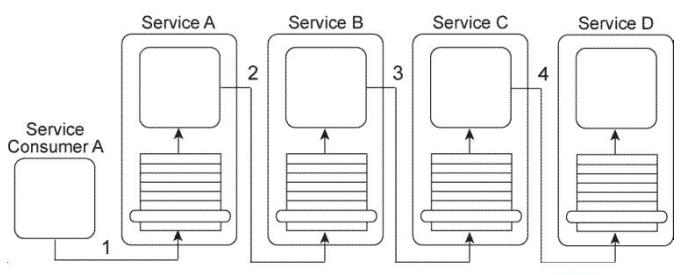

Service Consumer A sends a message to Service A (1), which then forwards the message to Service B (2). Service B forwards the message to Service C (3), which finally forwards the message to Service D (4).
Services A, B, and C each contain logic that reads the content of the message and, based on this content, determines which service to forward the message to. As a result, what is shown in the Figure is one of several possible runtime scenarios.


Currently, this service composition architecture is performing adequately, despite the number of services that can be involved in the transmission of one message. However, you are told that new logic is being added to Service A that will require it to compose one other service in order to retrieve new data at runtime that Service A will need access to in order to determine where to forward the message to. The involvement of the additional service will make the service composition too large and slow. What steps can be taken to improve the service composition architecture while still accommodating the new requirements and avoiding an increase in the amount of service composition members?

  • A. The Rules Centralization pattern can be applied to establish a centralized service that contains routing-related business rules. This new Rules service would replace Service B and could be accessed by Service A and Service C in order for Service A and Service C to determine where to forward a message to at runtime. The Service Composability principle can be further applied to ensure that all remaining services are designed as effective service composition participants.
  • B. The Asynchronous Queuing pattern can be applied together with the Rules Centralization pattern to establish a Rules service that encapsulates a messaging queue. This new Rules service would replace Service B and could be accessed by Service A and Service C in order for Service A and Service C to determine where to forward a message to at runtime. The Service Composability principle can be further applied to ensure that all remaining services are designed as effective service composition particip
  • C. The Intermediate Routing pattern can be applied together with the Service Agent pattern by removing Service B or Service C from the service composition and replacing it with a service agent capable of intercepting and forwarding the message at runtime based on pre- defined routing logic. The Service Composability principle can be further applied to ensure that all remaining services are designed as effective service composition participants.
  • D. None of the above.


Answer : C

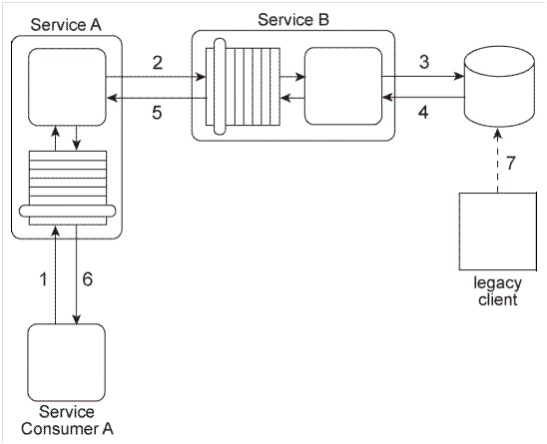

Service A is an entity service that provides a Get capability that returns a data value that is frequently changed.
Service Consumer A invokes Service A in order to request this data value (1). For Service
A to carry out this request, it must invoke Service B (2), a utility service that interacts (3.4) with the database in which the data value is stored, Regardless of whether the data value changed. Service B returns the latest value to Service A (5), and Service A returns the latest value to Service Consumer A (6).
The data value is changed when the legacy client program updates the database (7). When this change happens is not predictable. Note also that Service A and Service B are not always available at the same time.
Any time the data value changes. Service Consumer A needs to receive it as soon as possible. Therefore, Service Consumer A initiates the message exchange shown in the
Figure several times a day. When it receives the same data value as before, the response from Service A is ignored. When Service A provides an updated data value, Service
Consumer A can process it to carry out its task.


Because Service A and Service B are not always available at the same times, messages are getting lost and several invocation attempts by Service Consumer A fail. What steps can be taken to solve this problem?

  • A. The Asynchronous Queuing pattern can be applied so that messaging queues are established between Service A and Service B and between Service Consumer A and Service A . This way, messages are never lost due to the unavailability of Service A or Service B .
  • B. The Asynchronous Queuing pattern can be applied so that a messaging queue is established between Service A and Service B . This way, messages are never lost due to the unavailability of Service A or Service B . The Service Agent pattern can be further applied to establish a service agent that makes a log entry and issues a notification when re-transmission attempts by the messaging queue exceeds a pre-determined quantity.
  • C. The Asynchronous Queuing pattern can be applied so that a messaging queue is established between Service Consumer A and Service A. This way, messages are never lost due to the unavailability of Service A or Service B. The Service Agent pattern can be further applied to establish a service agent that makes a log entry each time a runtime exception occurs.
  • D. None of the above.


Answer : A

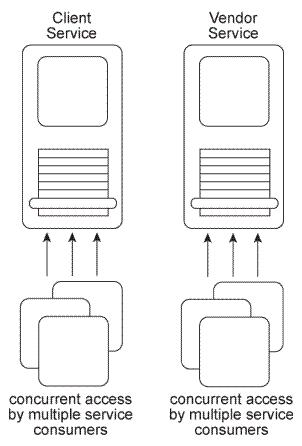

The Client and Vendor services are agnostic services that are both currently part of multiple service compositions. As a result, these services are sometimes subjected to concurrent access by multiple service consumers.
The Client service is an entity service that primarily provides data access logic to a client database but also provides some calculation logic associated with determining a client's credit rating. The Vendor service is also an entity service that provides some data access logic but can also generate various dynamic reports.
After reviewing historical statistics about the runtime activity of the two services, it was discovered that the majority of concurrent runtime access is related to the processing of business rules. With the Client service, it is the calculation logic that is frequently required and with the Vendor service it is the dynamic reporting logic that needs to be accessed separately from the actual report generation.


Currently, due to the increasing amount of concurrent access by service consumers, the runtime performance of both the Client and Vendor services has worsened and has therefore reduced their effectiveness as service composition members. What steps can be taken to solve this problem without introducing new services?

  • A. The Rules Centralization pattern can be applied by extracting the business rule logic from the Client and Vendor services and placing it into a new Rules service. This will naturally improve the runtime performance of the Client and Vendor services because they will no longer be subjected to the high concurrent access of service consumers that require access to the business rules logic.
  • B. The Redundant Implementation pattern can be applied to the Client and Vendor services, thereby establishing duplicate implementations that can be accessed when a service reaches its runtime usage threshold. The Intermediate Routing pattern can be further applied to provide load balancing logic that can, at runtime, determine which of the redundant service implementations is the least busy for a given service consumer request.
  • C. The Rules Centralization pattern can be applied together with the Redundant Implementation pattern to establish a scalable Rules service that is redundantly implemented and therefore capable of supporting high concurrent access from many service consumers. The Service Abstraction principle can be further applied to hide the implementation details of the Rules service.
  • D. None of the above.


Answer : B

  • A. The Contract Centralization pattern can be applied so that when the new service capability is added, the Service A service contract will become the primary contact point for Service A . This will avoid Service Consumer A or any other potential service consumer from being designed to access the shared database directly. The Service Abstraction principle can be applied to further hide the implementation details so that Service Consumer A and other service consumers are unaware of the fact that the
  • B. The Legacy Wrapper pattern can be applied to establish a new wrapper utility service that will provide standardized data access service capabilities for the shared database. This will avoid Service A from having to access the shared database directly and will further support the application of the Service Loose Coupling principle between Service A and the new utility service. By abstracting the data access logic into the wrapper service, there is no need to add the new service capability to each
  • C. The Standardized Service Contract principle is applied to ensure that the new service capability is consistently added to the service contract of each implementation and that it extends the existing Service A service contract in a manner that is compliant with current design standards. The Service Loose Coupling principle is applied to ensure that the new service capability remains decoupled from the underlying logic and implementation so that Service Consumer A does not become indirectly couple
  • D. None of the above.


Answer : C

  • A. The Standardized Service Contract principle is applied to ensure that the new service capability extends the existing service contract in a manner that is compliant with current design standards. The Redundant Implementation pattern is applied to establish separate implementations of Service A that include duplicate databases with copies of the data that Service A requires from the shared database.
  • B. The Service Autonomy principle is applied to further isolate the individual implementations of Service A by separating them onto different physical servers. When the new service capability is added, the Service Data Replication pattern is applied to give each implementation of Service A its own copy of the data it requires from the shared database.
  • C. The Service Loose Coupling principle is applied together with the Standardized Service Contract principle to ensure that Service Consumer A is not indirectly coupled to the shared database after the new service capability is added to the service contract. The Legacy Wrapper pattern can be applied to establish a new utility service that will provide standardized data access service capabilities for the shared database. D. None of the above.


Answer : B

Upon reviewing these requirements it becomes evident to you that the Orchestration compound pattern will need to be applied. However, there are additional requirements that need to be fulfilled. To build this service composition architecture, which patterns that is not associated with the Orchestration compound pattern need to also be applied? (Be sure to choose only those patterns that relate directly to the requirements described above.
Patterns associated with the Orchestration compound pattern include both the required or core patterns that are part of the basic compound pattern and the optional patterns that can extend the basic compound pattern.)

  • A. Atomic Service Transaction
  • B. Compensating Service Transaction
  • C. Data Format Transformation
  • D. Data Model Transformation
  • E. Event-Driven Messaging
  • F. Intermediate Routing
  • G. Policy Centralization
  • H. Process Centralization
  • I. Protocol Bridging
  • J. Redundant Implementation K. Reliable Messaging L. Service Data Replication M. State Repository


Answer : C,L

Service A has become increasingly difficult to maintain. Its core service logic has become bloated and convoluted because it has been updated numerous times during which additional functionality was added to interact with the database and the legacy system and to support interaction with Service Consumers A and B (via the two service contracts) as well as interaction directly with Service Consumer C.


What steps can be taken to solve these problems and to prevent them from happening again in the future?

  • A. The Service Facade pattern can be applied to position a Facade component between the core service logic and the implementation resources (the database and the legacy system) and to also position a Facade component between the two service contracts and Service Consumers A and
  • B. The Official Endpoint pattern can be applied to limit access to Service A to one of its two published service contracts. The Service Loose Coupling principle can be applied so that Service Consumer C does not negatively couple itself directly to the core service logic of Service A . B. The Service Facade pattern can be applied to position a Facade component between the core service logic and the implementation resources (the database and the legacy system) and to position a faade component betwe
  • C. The Service Faade pattern can be applied to position a Facade component between the core service logic and the two service contracts. The Contract Centralization pattern can be applied to limit access to Service A to one of its two published service contracts. The Service Loose Coupling principle can be applied so that Service Consumer C does not negatively couple itself directly to the core service logic of Service A .
  • D. None of the above.


Answer : B

Service A is a task service that sends Service B a message (2) requesting that Service B return data back to Service A in a response message (3). Depending on the response received. Service A may be required to send a message to Service C (4) for which it requires no response.
Before it contacts Service B, Service A must first retrieve a list of code values from its own database (1) and then place this data into its own memory. If it turns out that it must send a message to Service C, then Service A must combine the data it receives from Service B with the data from the code value list in order to create the message it sends to Service C.
If Service A is not required to invoke Service C, it can complete its task by discarding the code values.

  • A. The Protocol Bridging pattern can be applied by establishing an intermediate processing layer between Service A and Service B that can convert SOAP 1.1 messages to SOAP 1.2 messages and vice versa. The Service Data Replication pattern can be applied to Service B so that it is given a dedicated database with its own copy of the data it needs to access. The Service Normalization pattern can then be applied to ensure that the data within the replicated database is normalized with the shared databas
  • B. The Protocol Bridging pattern can be applied by establishing an intermediate processing layer between Service A and Service B that can convert SOAP 1.1 messages to SOAP 1.2 messages and vice versa. The Service Statelessness principle can be applied with the help of the State Repository pattern so that Service A can write the code value data to a state database while it is waiting for Service B to respond.
  • C. The Protocol Bridging pattern can be applied by establishing an intermediate processing layer between Service A and Service B that can convert SOAP 1.1 messages to SOAP 1.2 messages and vice versa. The Intermediate Routing pattern can be applied to dynamically determine whether Service A should send a message to Service C. The Service Autonomy principle can be applied to Service A to further increase its behavioral predictability by reducing the amount of memory it is required to consume.
  • D. None of the above.


Answer : B

Service A is an entity service with a functional context dedicated to invoice-related processing. Service B is a utility service that provides generic data access to a database.
In this service composition architecture, Service Consumer A sends a SOAP message containing an invoice XML document to Service A(1). Service A then sends the invoice
XML document to Service B (2), which then writes the invoice document to a database.
The data model used by Service Consumer A to represent the invoice document is based

  • A. The Data Model Transformation pattern can be applied so that the invoice document sent by Service Consumer A is transformed into an invoice document that is compliant with the XML Schema B used by Service A . The Data Model Transformation pattern can be applied again to ensure that the invoice document sent by Service A is compliant with XML Schema A used by Service B.
  • B. The service composition can be redesigned so that Service Consumer A sends the invoice document directly to Service B. Because Service Consumer A and Service B use XML Schema A, the need for transformation logic is avoided. This naturally applies the Service Loose Coupling principle because Service Consumer A is not required to send the invoice document in a format that is compliant with the database used by Service B.
  • C. The Standardized Service Contract principle can be applied to the service contract of Service A so that it is redesigned to use XML Schema A. This would make it capable of receiving the invoice document from Service Consumer A and sending the invoice document to Service B without the need to further apply the Data Model Transformation pattern.
  • D. None of the above.


Answer : C
