Nokia Scalable IP Networks v1.0
Question 1
Which compact flash on a Control/Switch processor of a Nokia 7750 router stores the runtime image and running configuration?
- A. CF 1
- B. CF 2
- C. CF 3
- D. Both A and B
Answer : C
Question 2
One of the tasks of the boot options file (BOF) is to:
- A. Specify authorization information to control access to the router.
- B. Define an IP address for the CPM Ethernet port.
- C. Initialize the hardware.
- D. Set the date/time for the system.
Answer : B
Question 3
Which of the following user interface sessions are accessible through Telnet and Secure Shell (SSH) on the Nokia 7750 SR and 7450 ESS?
- A. Graphic User Interface (GUI).
- B. Node Management Terminal Interface (NMTI).
- C. Command Line Interface (CLI).
- D. All of the above.
Answer : C
Question 4
You are working from a particular Command Line Interface (CLI) context, and want to see the commands available from your current context. What command can you issue to view this information?
- A. view tree
- B. tree
- C. info detail
- D. info
Answer : B
Question 5
What is available for auto completion of commands within the CLI on the Nokia 7750 SR Service Router?
- A. Type the first letters of the command, then press Ctrl C
- B. Type the first letters of the command, then press Esc
- C. Type the first letters of the command, then press Tab
- D. Type the first letters of the command, then type ?
Answer : C
Question 6
Which of the following is a File command in the File System context of the Command Line Interface (CLI)?
- A. time-display
- B. help
- C. type
- D. terminal
Answer : C
Question 7
What must occur for a LAG to become operational?
- A. There must be multiple ports assigned to the LAG.
- B. All ports in the LAG must be configured with the same characteristics.
- C. Auto-negotiation must be enabled on all ports in the LAG.
- D. All of the above.
Answer : B
Question 8
If a 4-port LAG is configured with the option of 'port-threshold 2' and 'action down' what will happen if the total operational links in the LAG is 2?
- A. If dynamic-cost is enabled it will adjust the cost for routing protocols such as OSPF.
- B. If dynamic-cost is not enabled it will adjust the cost for routing protocols such as OSPF by dividing the link bandwidth by 2.
- C. The LAG will be changed to an operational state of 'down'.
- D. The LAG will function with only 2 ports. There will be no change to the routing metric.
Answer : C
Question 9

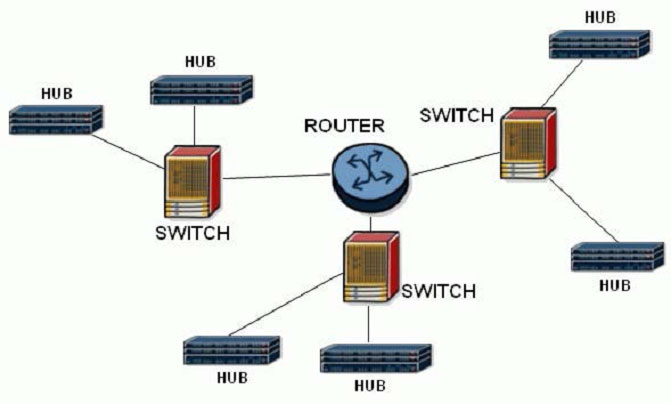

An Ethernet Local Area Network (LAN) consists of the components shown in the diagram.
How many broadcast and collision domains are on this LAN?
- A. 9 broadcast domains, 3 collision domains.
- B. 3 broadcast domains, 3 collision domains.
- C. 3 broadcast domains, 9 collision domains.
- D. 1 broadcast domain, 9 collision domains.
Answer : C
Question 10
As described by the CSMA/CD algorithm, what is the first thing to happen when Host A and Host B begin transmitting data at the same time?
- A. Host A and B will generate a jam signal.
- B. Listening hosts will request retransmission.
- C. Host A or B will retry the transmission.
- D. A back-off timer is started by Host A or B.
Answer : A
Question 11

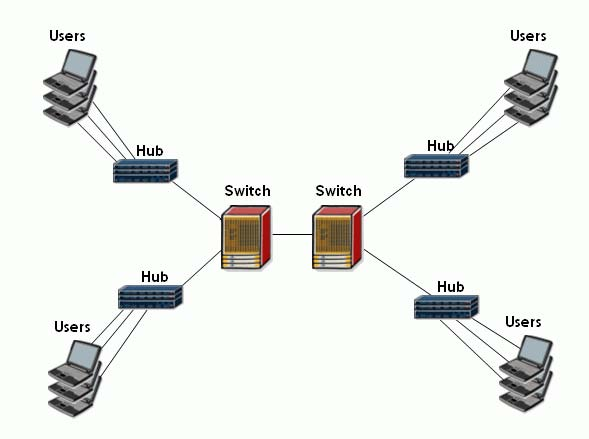

(Click the Exhibit Button below) An Ethernet Local Area Network (LAN) consists of the following components:
- Four 24-port hubs & Two 16-port switches
How many broadcast domains are on this LAN?
- A. 1
- B. 2
- C. 5
- D. 32
Answer : A
Question 12
Which of the following best describes an Ethernet bridge?
- A. A passive device simply used to connect two or more cables. Does not generate or amplify any signals.
- B. A device that receives and retransmits a signal out its other ports, but does not do any Layer 2 analysis of the data.
- C. A device that receives a signal and based on the Layer 2 destination address, makes a decision on which ports the signal should be retransmitted.
- D. A device that receives a signal and based on the Layer 3 destination address, makes a decision on which ports the signal should be retransmitted.
Answer : C
Question 13
What happens immediately after an Ethernet switch receives an Ethernet frame?
- A. It records the destination MAC address and the interface on which it arrived.
- B. It records the source MAC address and the interface on which it arrived.
- C. It floods the frame out of all its interfaces except the interface on which the frame arrived.
- D. It transmits the frame out of the appropriate interface.
Answer : B
Question 14
What is the behavior of a typical Ethernet switch when it receives a frame with a uncast destination MAC address? (Choose two)
- A. The switch floods the frame out of all ports except the port on which it was received.
- B. The switch looks in its FDB. If the source address is unknown it discards the frame.
- C. The switch looks in its FDB. If the destination address is known it forwards the frame out the appropriate interface.
- D. The switch looks in its FDB. If the destination address is unknown it floods the frame out all ports except the port on which it was received.
- E. The switch looks in its FDB. If the destination address is unknown it discards the frame.
Answer : CD
Question 15
Which technologies can be used with Ethernet switches to achieve redundancy? (Choose two)
- A. LAG
- B. OSPF
- C. RIP
- D. STP
Answer : AD
