NetApp Certified Storage Installation Engineer, ONTAP v1.0
Question 1
After properly cabling the NetApp CN1610 cluster switches, you see that joining the second node to a cluster fails because the node is not able to communicate with the other node.
In this scenario, what is causing this problem?
- A. The cluster switches must be Cisco for more than two nodes in a cluster.
- B. The RCF file is not loaded properly.
- C. CN1610 is unsupported in newer ONTAP versions.
- D. The NTP server is not set.
Answer : B
Question 2
According to NetApp best practices, how many NTP servers should you associate with an ONTAP cluster?
- A. 2
- B. 1
- C. 3
- D. 4
Answer : C
Reference:
https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-sag%2FGUID-1E923D05-447D-4323-8D87-12B82F49B6F1.html
Question 3
You are planning the deployment of a new 8-node ONTAP 9.5 cluster. To prepare for the installation, you want to create a custom configuration worksheet with all the information that the customer provided. You also want to use the worksheet to generate CLI commands for your installation.
In this scenario, which NetApp tool will help you achieve your goal?
- A. Fusion
- B. ConfigBulider
- C. Config Advisor
- D. Config Validator
Answer : C
Question 4
You finished a new installation and executed Config Advisor successfully. You review the physical racking and cabling on one of the controllers, and notice an amber light that was not previously on.
Which two actions should you perform before you turn over the cluster for production? (Choose two.)
- A. Remove cables connected to the controller until you find the one responsible for the controller issue.
- B. Review AutoSupport messages which could explain the controller state.
- C. Execute Config Advisor again to check for new errors.
- D. Let the customer know the cluster is operating normally while the amber LED is on.
Answer : AC
Question 5
When you set up a new 2-node switchless cluster running ONTAP 9.5, which IP subnet is used for the automatic IP assignment on cluster ports?
- A. 10.10.0.0/16
- B. 10.0.0.0/8
- C. 169.254.0.0/16
- D. 192.168.1.0/24
Answer : B
Question 6
You are adding two new nodes to an existing switchless 2-node cluster.
In this scenario, which two statements are true? (Choose two.)
- A. You must make sure that the existing nodes are healthy and that all cluster links are up.
- B. You need to schedule downtime to add these two nodes.
- C. The existing cluster must use clustered Data ONTAP 8.1 or later software.
- D. You first need to install the cluster interconnect switches to the existing cluster.
Answer : AD
Reference:
https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-sag%2FGUID-B13FF812-785E-4E62-9914-30E7A8F51A4C.html
Question 7
You have to disable a switch that is connected to a port on your FAS2750. You notice that the LIFs that are associated with this port are migrated to a port that is not expected.
In this scenario, what would cause this behavior?
- A. The network port is configured incorrectly.
- B. The broadcast domain is configured incorrectly.
- C. There are no online ports within the same failover group.
- D. The network failover port is not licensed.
Answer : C
Question 8
Which type of partitioning would you use when installing a FAS8200 with 24 SAS drives running ONTAP 9.5?
- A. root-root-data partitioning
- B. root-data-data partitioning
- C. root-data partitioning
- D. root-root-data-data partitioning
Answer : B
Reference:
https://library.netapp.com/ecm/ecm_download_file/ECMLP2496263
Question 9
Your customer wants to buy four new DS212C shelves with an 8 TB SATA drive. The customer also wants to know the usable aggregate size of this configuration.
In this scenario, which resource would you use to accomplish this task?
- A. Fusion
- B. Hardware Universe (HWU)
- C. Interoperability Matrix Tool (IMT)
- D. Config Advisor
Answer : B
Reference:
https://library.netapp.com/ecm/ecm_download_file/ECMP1119629
Question 10

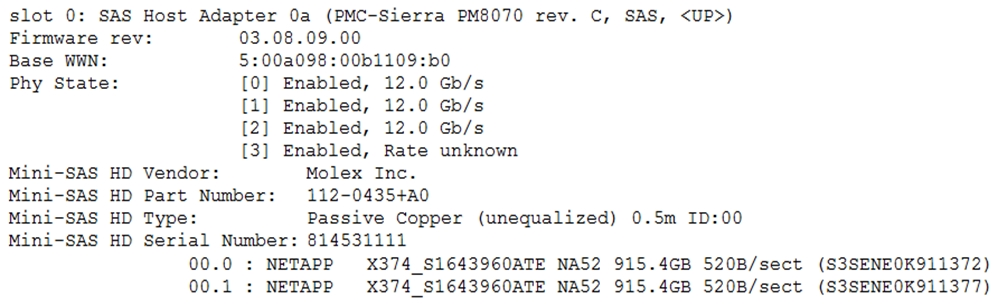

After completing the installation of a DS224C shelf, you observe the error shown in the exhibit.
Which action should you take to troubleshoot the error? (Choose two.)
- A. Re-seat the IOM module.
- B. Re-seat the SAS card.
- C. Perform a takeover-giveback.
- D. Reconnect the SAS cable.
Answer : AD
Question 11
What is the maximum number of data disks that a RAID-TEC RAID group has?
- A. 26
- B. 20
- C. 29
- D. 24
Answer : C
Question 12
You want to create a new intercluster LIF for cross-cluster replication and use the CLI. After you create the nac101_intercluster_lif_icl LIF, you are not able to see the LIF in the list of local intercluster LIFs.
Referring to the exhibit, what is the problem?
- A. The assigned port for the intercluster e1c LIF is in the down admin state.
- B. The intercluster LIF has assigned an IP address that is not in the intercluster VLAN.
- C. The LIF that was created has the wrong role type.
- D. The home node of the new intercluster LIF has reached the maximum of four intercluster LIFs.
Answer : B
Question 13
You are creating an aggregate on a new FAS8200 with two DS224C shelves. Your customer wants to be able to use the Disk Maintenance Center.
In this scenario, what is the minimum number of spare disks required per node and disk type?
- A. 4
- B. 3
- C. 2
- D. 1
Answer : C
Reference:
https://library.netapp.com/ecm/ecm_download_file/ECMLP2496263
Question 14
You installed a new AFF A800 2-node ONTAP 9.5 cluster and are asked to run diagnostics to validate the hardware.
Which command is used from the loader prompt to enter diagnostics?
- A. printenv
- B. savenv
- C. sldiag
- D. boot_diags
Answer : D
Reference:
https://library.netapp.com/ecm/ecm_download_file/ECMLP2802058
Question 15
Which two commands verify that AutoSupport is working as expected?
- A. autosupport test show
- B. autosupport history show
- C. autosupport check show
- D. autosupport show
Answer : B
Reference:
https://kb.netapp.com/app/answers/answer_view/a_id/1070605/~/troubleshooting-workflow%3A-autosupport%3A-autosupport-message-created-with- missing
