Implementing a Hybrid and Secure Messaging Platform v1.0

Page:    1 / 11
Exam contains 158 questions

SIMULATION -
Use the following login credentials as needed:
To enter your username, place your cursor in the Sign in box and click on the username below.
To enter your password, place your cursor in the Enter password box and click on the password below.
Microsoft 365 Username: [email protected]
Microsoft 365 Password: b#nqvZG*0w*4
The following information is for technical support purposes only:

Lab instance: 10658557 -


You need to create a public folder named Project. The solution must ensure that senders on the Internet can add posts to the Project folder by sending email messages to [email protected]$Global:O365 tenant.
To complete this task, sign in to the Microsoft 365 admin center.



Answer : See explanation below.

Explanation:
You can create a public folder in the Exchange Admin Center. You will need to create a public folder mailbox first if one doesn"™t exist.
1. Go to the Exchange Admin Center and select Public Folders.
2. Click on "˜public folder mailboxes"™ to see if a one exists. If it doesn"™t, plus (+) sign to create a new public folder mailbox.
3. Name the public folder mailbox "˜Project"™ and click save.
4. Click on "˜public folders"™.
5. Click the plus (+) sign to create a new public folder.
6. Name the public folder "˜Project"™ and click save.
7. Select the new public folder and click the "˜Enable"™ link under Mail settings.
8. Click Yes to confirm.
9. Go back to the public folder and click the edit icon (pencil icon).
10. Select "˜Email Address"™ and click the plus (+) to add an email address.
11. Enter the email address and click Save.

SIMULATION -
Use the following login credentials as needed:
To enter your username, place your cursor in the Sign in box and click on the username below.
To enter your password, place your cursor in the Enter password box and click on the password below.
Microsoft 365 Username: [email protected]
Microsoft 365 Password: b#nqvZG*0w*4
The following information is for technical support purposes only:

Lab instance: 10658557 -


Your organization contains an on-premises SMTP host that has a public email address of 131.107.200.200.
You need to ensure that all outbound email messages from the SMTP host can be routed via your Exchange Online subscription.
To complete this task, sign in to the Microsoft 365 admin center.



Answer : See explanation below.

Explanation:
You need to set up a connector in Exchange Online to route email from the on-premises SMTP server.
1. Go to the Exchange Admin Center.
2. Click "˜mail flow"™ then click "˜connectors"™.
3. Click the plus (+) sign to add a new connector.
4. In the "˜From"™ drop-down list, select "˜Your organization"™s email server"™.
5. In the "˜To"™ drop-down list, select "˜Office 365"™.
6. Click Next.
7. Give the connector a name such as "˜on-premise-to-office365"™ and click Next.
8. In the "˜How should Office 365 identify email from your email server"™ section, select the second option, "˜By verifying that the IP address of the sending server matches on of these IP addresses that belong to your organization"™.
9. Click the plus (+) sign to add a new IP.
10. Enter the IP address: 131.107.200.200 and click OK.
11. Click Next.
12. Click Save.

You have a Microsoft Exchange Server 2019 hybrid deployment. The on-premises Exchange organization contains 500 mailboxes. The Exchange Online tenant contains 200 mailboxes.
You need to ensure that all users can use the Microsoft Outlook mobile app to access their mailbox.
What should you do first?

  • A. For each on-premises user, purchase a Microsoft Office 365 Enterprise E1 license.
  • B. From Exchange Online, create a mobile device access policy.
  • C. Add a TXT record to the public DNS zone of the Exchange organization.
  • D. From the on-premises organization, create a mobile device access policy.


Answer : D

You have a Microsoft Exchange Server 2019 organization.
You need to import an Edge Subscription on a Mailbox server.
Which cmdlet should you run?

  • A. Start-EdgeSynchronization
  • B. New-EdgeSubscription
  • C. Set-TransportAgent
  • D. Set-EdgeSubscription


Answer : B

Reference:
https://docs.microsoft.com/en-us/exchange/architecture/edge-transport-servers/edge-subscriptions?view=exchserver-2019

Your company has a Microsoft Exchange Server 2019 hybrid deployment.
You are migrating mailboxes to Exchange Online by using remote mailbox move requests.
A recent security breach at the company required that the passwords of all privileged accounts be changed.
Since the password change, mailbox move requests are failing.
You need to ensure that the mailbox migration can resume.
What should you do first?

  • A. From Exchange on-premises, run Set-MigrationEndpoint.
  • B. From Exchange on-premises, run Set-MigrationConfig.
  • C. From Exchange Online, run Set-MigrationConfig.
  • D. From Exchange Online, run Set-MigrationEndpoint.
  • E. Run iisreset /noforce on all the Exchange servers that have MRSProxy enabled.


Answer : A

Reference:
https://docs.microsoft.com/en-us/powershell/module/exchange/move-and-migration/set-migrationendpoint?view=exchange-ps

Your company has a Microsoft Exchange Server 2019 hybrid deployment.
The company has a finance department.
You need to move all the on-premises mailboxes of the finance department to Exchange Online. The bulk of the move operation must occur during a weekend when the company"™s Internet traffic is lowest. The move must then be finalized the following Monday. The solution must minimize disruption to end users.
What should you do first?

  • A. Run the New-MigrationBatch cmdlet and specify the StartAfter parameter.
  • B. Create a batch migration and select the Automatically complete the migration batch check box.
  • C. Run the New-MigrationBatch cmdlet and specify the CompleteAfter parameter.
  • D. Create a script that moves most of the mailboxes on Friday at 22:00 and the remaining mailboxes on Monday at 09:00.


Answer : A

SIMULATION -

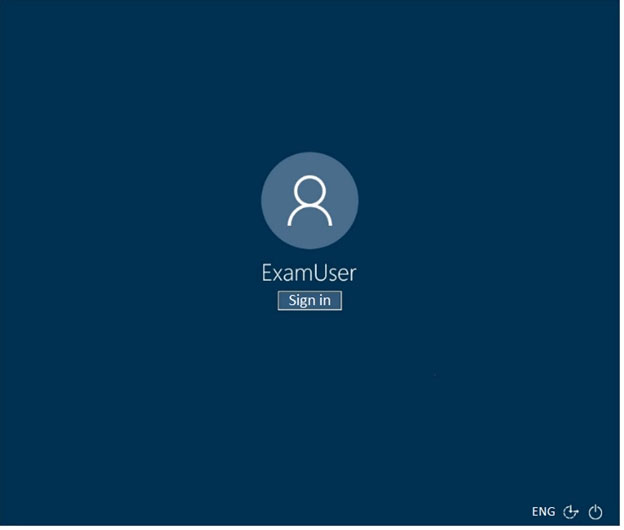

Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g., copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn"™t matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may more than one lab that you must complete. You can use as much time as you would like to complete each lab.
But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.

Username and password -


Use the following login credentials as needed:
To enter your username, place your cursor in the Sign in box and click on the username below.
To enter your password, place your cursor in the Enter password box and click on the password below.
Microsoft 365 Username: [email protected]
Microsoft 365 Password: [email protected]^g%g
If the Microsoft 365 portal does not load successfully in the browser, press CTRL-K to reload the portal in a new browser tab.
The following information is for technical support purposes only:

Lab Instance: 11024416 -
You need to create a public folder named Folder1 to meet the following requirements:
-> Any users in your organization must be able to send email to Folder1.
-> A user named Lee Gu must have Full Control permissions on Folder1.
To complete this task, sign in to the Microsoft 365 admin center.



Answer : See explanation below

Explanation:
You need to create a public folder, mail enable it and configure the permissions.
1. Go to the Exchange Admin Center.
2. Click Public folders.
3. Select Public Folder Databases. If a database exists, skip to step 6. If there is no public folder database, you"™ll need to create one.
4. Click the plus (+) sign to add a new public folder database.
5. Give the new public folder database a name and click Save.
6. Select Public Folders.
7. Click the plus (+) sign to add a new public folder.
8. Name the public folder "˜Folder1"™ and click Save.
9. Select the public folder. Under "˜Mail settings "" Disabled"™, select the "˜Enable"™ link.
10. Click Yes to confirm.
11. Under "˜Folder Permissions"™, select the "˜Manage"™ link.
12. Click the plus (+) sign to add a user.
13. Click the Browse button to find and select Lee Gu.
14. In the Permission Level drop-down list, select "˜Owner"™.
15. Click Save to add the user.
16. Click Save again to save the changes.

SIMULATION -

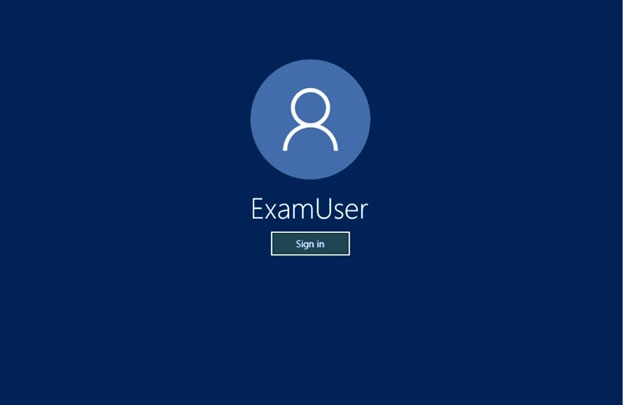

Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g., copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn"™t matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may more than one lab that you must complete. You can use as much time as you would like to complete each lab.
But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.

Username and password -


Use the following login credentials as needed:
To enter your username, place your cursor in the Sign in box and click on the username below.
To enter your password, place your cursor in the Enter password box and click on the password below.
Microsoft 365 Username: [email protected]
Microsoft 365 Password: [email protected]^g%g
If the Microsoft 365 portal does not load successfully in the browser, press CTRL-K to reload the portal in a new browser tab.
The following information is for technical support purposes only:

Lab Instance: 11024416 -
You need to ensure that all the mobile devices using Exchange ActiveSync to connect to their Exchange Online mailbox encrypt all the data stored on the device.
To complete this task, sign in to the Microsoft 365 admin center.



Answer : See explanation below

Explanation:
You need to edit the default mobile device mailbox policy.
1. Go to the Exchange Admin Center.
2. Click on Mobile in the left navigation pane.
3. Click on "˜Mobile device mailbox policies"™.
4. Select the default policy and click the Edit icon (pencil icon).
5. In the policy settings, click on Security.
6. Tick the checkbox labelled "˜Require encryption on device"™.
7. Click Save to save the changes.

HOTSPOT -

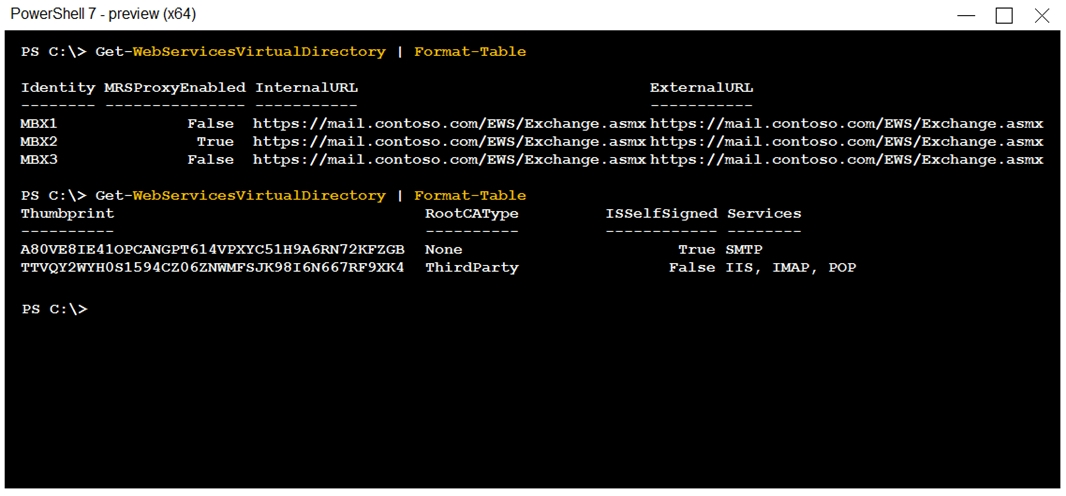

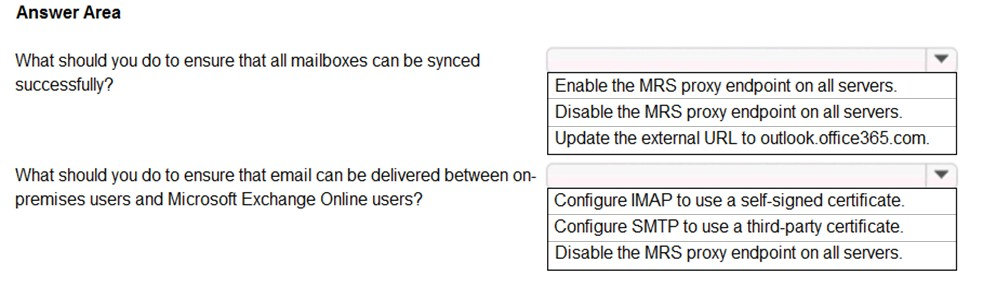

You run the Get-WebServicesVirtualDirectory cmdlet as shown in the following exhibit.


Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.
Hot Area:

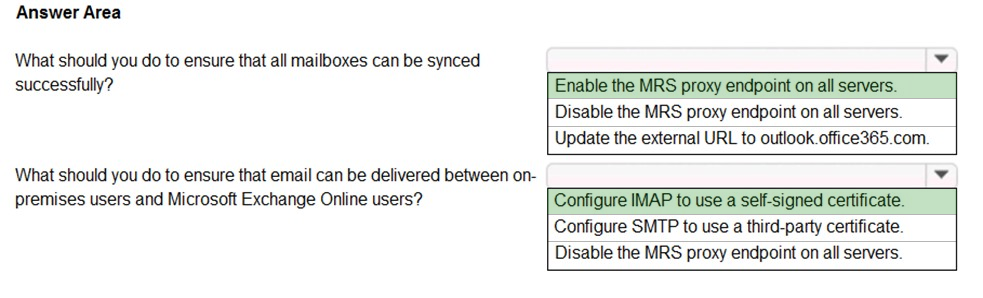

Answer :

Explanation:
Mailbox replication service (MRS) proxy is used for cross forest mailbox move and remote move migration between on premise exchange and exchange online
(Office 365)
Reference:
https://docs.microsoft.com/en-us/Exchange/architecture/mailbox-servers/mrs-proxy-endpoint?view=exchserver-2019

HOTSPOT -

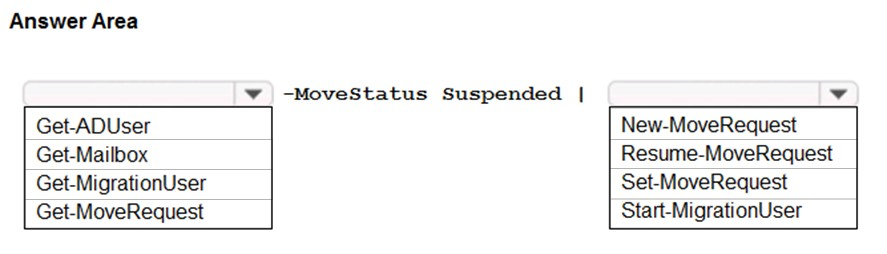

You are migrating mailboxes from a Microsoft Exchange Server 2016 organization to Exchange Online. The mailbox migrations are configured to suspend, and you plan to perform a coordinated cutover.
Which PowerShell command should you run to complete all the suspended mailbox migrations? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

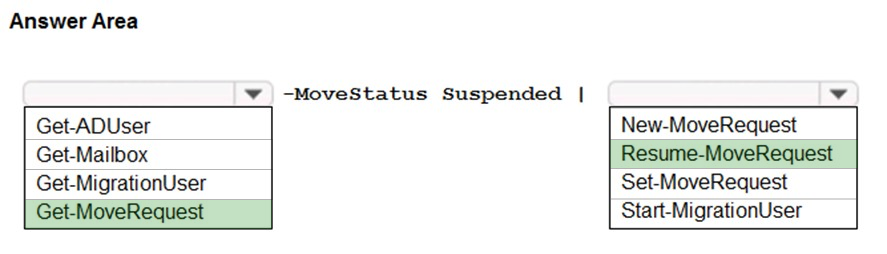

Hot Area:




Answer :

Explanation:

Box 1: Get-MoveRequest -
The Get-MoveRequest cmdlet gets the status of an ongoing asynchronous mailbox move that was initiated by using the New-MoveRequest cmdlet.

Box 2: Resume-MoveRequest -
The Resume-MoveRequest cmdlet is used to resume a move request that has been suspended or has failed.
Reference:
https://docs.microsoft.com/en-us/powershell/module/exchange/move-and-migration/get-moverequest?view=exchange-ps https://docs.microsoft.com/en-us/powershell/module/exchange/move-and-migration/resume-moverequest?view=exchange-ps

You have a Microsoft Exchange Server 2019 organization.
You plan to migrate all mailboxes to Exchange Online.
You need to provide a user with the ability to perform the mailbox migrations. The solution must use the principle of least privilege.
Which role should you assign to the user?

  • A. Help Desk
  • B. Recipient Management
  • C. Server Management
  • D. Organization Management


Answer : B

Explanation:
The Recipient Management role or the Organization Management role is required.
-> Administrators that are members of the Organization Management role group have administrative access to the entire Exchange organization and can perform almost any task against any Exchange object.
-> Administrators who are members of the Recipient Management role group have administrative access to create or modify Exchange recipients within the
Exchange organization.
The Recipient Management role would adhere to the principle of least privilege.
Incorrect Answers:
D: Administrators that are members of the Organization Management role group have administrative access to the entire Exchange organization and can perform almost any task against any Exchange object. This does not adhere to the principle of least privilege.
References:
https://docs.microsoft.com/en-us/Exchange/permissions/feature-permissions/recipient-permissions?redirectedfrom=MSDN&view=exchserver-2019#mailbox- move-and-migration-permissions https://docs.microsoft.com/en-us/exchange/recipient-management-exchange-2013-help?redirectedfrom=MSDN https://docs.microsoft.com/en-us/exchange/organization-management-exchange-2013-help

DRAG DROP -
You have a Microsoft Exchange Server 2019 hybrid deployment.
All Mailbox servers and domain controllers are in the same site.
You deploy an Edge Transport server.
You need to ensure that all SMTP traffic between the on-premises organization and Exchange Online is routed through the Edge Transport server.

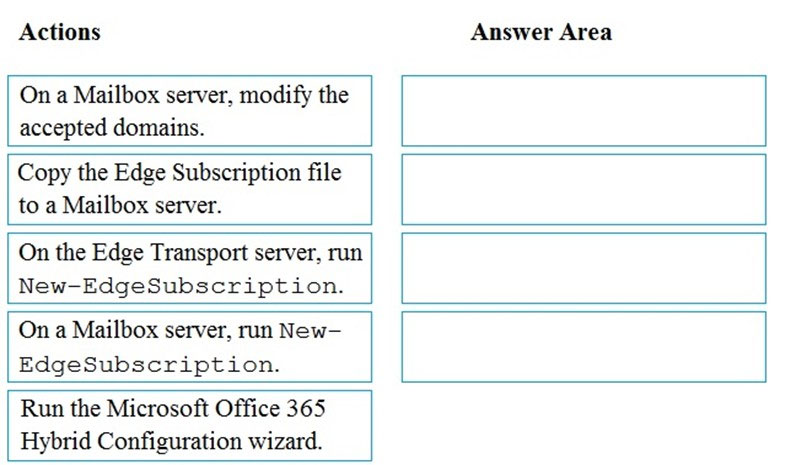

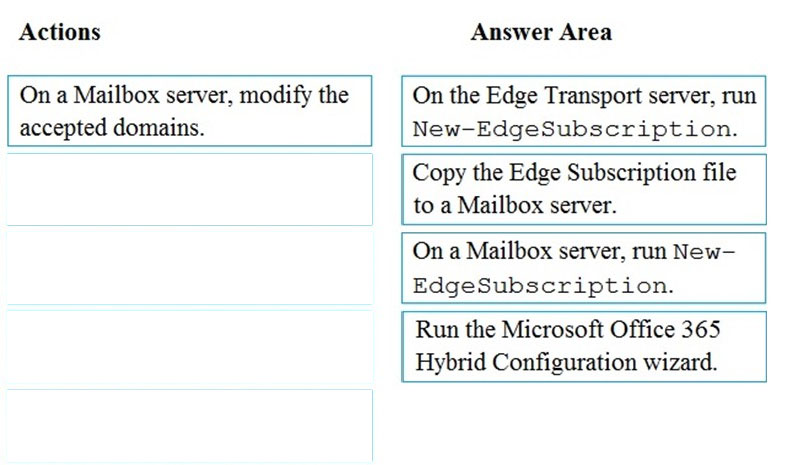

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:




Answer :

DRAG DROP -
You have a Microsoft Exchange Online tenant.

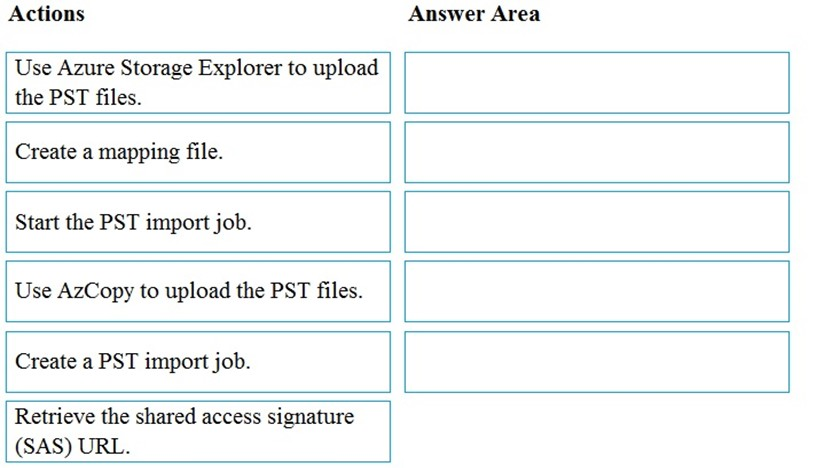

You need to import PST files from a legacy archiving solution to Exchange Online. You will import the PST files over the internet.
Which five actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:

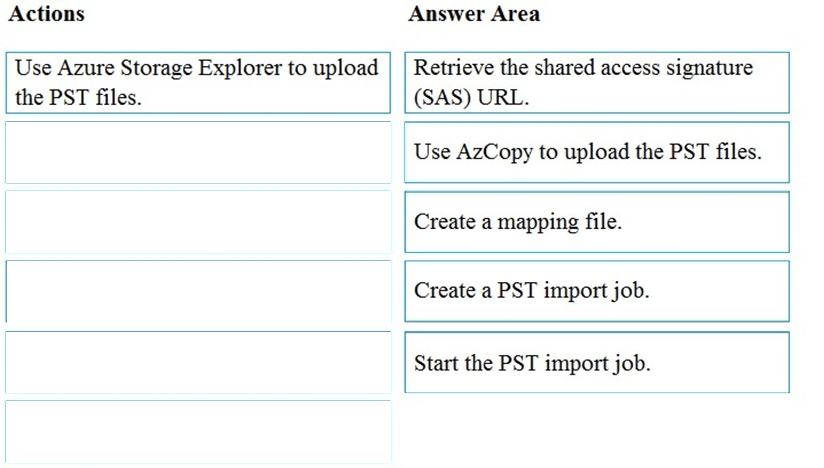

Answer :

Reference:
https://docs.microsoft.com/en-us/microsoft-365/compliance/use-network-upload-to-import-pst-files?view=o365-worldwide

Your company has a Microsoft Exchange Server 2019 hybrid deployment.
The company has a finance department.
You need to move all the on-premises mailboxes of the finance department to Exchange Online. The bulk of the move operation must occur during a weekend when the company"™s Internet traffic is lowest. The move must then be finalized the following Monday. The solution must minimize disruption to end users.
What should you do first?

  • A. Run the New-MoveRequest cmdlet and specify the Suspend parameter.
  • B. Run the New-MigrationBatch cmdlet and specify the MoveOptions parameter.
  • C. Run the New-MigrationBatch cmdlet and specify the StartAfter parameter.
  • D. Run the New-MigrationBatch cmdlet and specify the CompleteAfter parameter.


Answer : C

Plan and Implement a Hybrid Configuration and Migration

Case Study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.

To start the case study -
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.

Overview -

General Overview -
Contoso, Ltd. is a national freight company in the United States. The company has 15,000 employees.

Physical Locations -
Contoso has a main office in Houston and 10 branch offices that each contains 1,000 employees.

Existing Environment -
Active Directory and Microsoft Exchange Server Environments
The network contains an Active Directory forest named contoso.com. The forest contains one root domain named contoso.com and 10 child domains. All domain controllers run Windows Server 2019.
The forest has Active Directory Certificate Services (AD CS) and Active Directory Federation Services (AD FS) deployed.
You have a hybrid deployment of Exchange Server 2019 and Microsoft Office 365.
There are 2,000 user mailboxes in Exchange Online.
Each office contains two domain controllers and two Mailbox servers. the main office also contains an Edge Transport server.
The organization contains 100 public folders. The folders contain 80 GB of content.
All email messages sent to contoso.com are delivered to Exchange Online. All messages sent to on-premises mailboxes are routed through the Edge Transport server.
Advanced Threat Protection (ATP) is enabled and configured for the Office 365 tenant.

Network Infrastructure -
Each office connects directly to the Internet by using a local connection. The offices connect to each other by using a WAN link.

Requirements -

Planned Changes -
Contoso plans to implement the following changes:
For all new users in the on-premises organization, provide an email address that uses the value of the Last Name attribute and the first two letters of the
First Name attribute as a prefix.
Decommission the public folders and replace the folders with a Microsoft 265 solution that maintains web access to the content.

Technical Requirements -
Contoso identifies the following technical requirements:
All email messages sent from a SMTP domain named adatum.com must never be identified as spam.
Any solution to replace the public folders must include the ability to collaborate with shared calendars.

Security Requirements -
Contoso identifies the following security requirements:
The principle of least privilege must be applied to all users and permissions.
All email messages sent from an SMTP domain named fabrikam.com to contoso.com must be encrypted.
All users must be protected from accessing unsecure websites when they click on URLs embedded in email messages.
If a user attempts to send an email message to a distribution group that contains more than 15 members by using Outlook, the user must receive a warning

before sending the message.

Problem statements -
Recently, a user named HelpdeskUser1 erroneously created several mailboxes. Helpdesk1User1 is a member of the Recipient Management management role group.
Users who have a mailbox in Office 365 report that it takes a long time for email messages containing attachments to be delivered.

Exhibit -

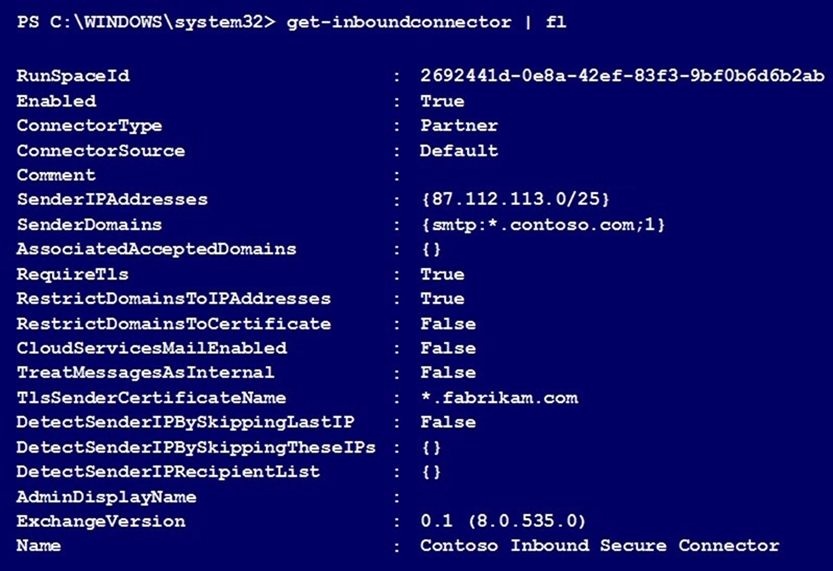

Exchange Online Connector -
You configure a connector as shown in the following exhibit.


You need to recommend a solution for the public folders that supports the planned changes and meets the technical requirements.
What should you recommend?

  • A. Microsoft SharePoint site mailboxes
  • B. Office 365 groups
  • C. Resource mailboxes
  • D. Public folder replicas


Answer : B

References:
https://docs.microsoft.com/en-us/exchange/collaboration/public-folders/migrate-to-office-365-groups?view=exchserver-2019
Plan and Implement a Hybrid Configuration and Migration

Page:    1 / 11
Exam contains 158 questions

Talk to us!


Have any questions or issues ? Please dont hesitate to contact us

Certlibrary doesn't offer Real Microsoft Exam Questions.
Certlibrary Materials do not contain actual questions and answers from Cisco's Certification Exams.
CFA Institute does not endorse, promote or warrant the accuracy or quality of Certlibrary. CFA® and Chartered Financial Analyst® are registered trademarks owned by CFA Institute.
