Using HPE OneView v1.0

Page:    1 / 4
Exam contains 52 questions

Within HPE OneView you can configure SNMPv1 read community string.
What is the purpose of this feature?

  • A. This is an SNMP community string that will be used when traps are forwarded to a WBEM Provider
  • B. This is an SNMP community string that will be used when traps are forwarded to other SNMP applications
  • C. This is an SNMP community string that will be used to receive a trapג€™s SNMP Agent
  • D. This is an SNMP community string that will be used to receive traps from HPE Onboard Administrators


Answer : C

Reference:
https://www.dnsstuff.com/snmp-community-string

What is the best practice when deploying an HPE OneView appliance?

  • A. deploy the appliance in a hypervisor cluster that is not managed by OneView
  • B. use thin-provisioning for the HPE OneView appliance to save storage capacity
  • C. enable VMware Fault Tolerance if the appliance is deployed to a VMware hypervisor
  • D. deploy two HPE OneView appliances and configure then in HA mode


Answer : A

Reference:
https://support.hpe.com/hpesc/public/docDisplay?docId=emr_na-c03943722

How will setting the Purpose field within the network definition of a server profile impact the network traffic?

  • A. network purpose can give higher priority for a specific type of traffic
  • B. network purpose will impact the traffic only if Virtual Connect modules are used
  • C. network purpose will define QoS within Logical Interconnect
  • D. network purpose does not affect the behavior of the network


Answer : C

You are creating a Logical Interconnect Group for a three-frame HPE Synergy solution with HPE Virtual Connect SE100Gb F32 Modules for Synergy.
In which scenario should you set redundancy for master modules to be highly available?

  • A. When storm control or loop protection will be enabled for Virtual Connect modules
  • B. When each of the frames has two Virtual Connect modules installed
  • C. When each Virtual Connect module is installed in different frame
  • D. When each Virtual Connect module is installed in different fabric


Answer : A

Your customer wants to manage their HPE Superdome Flex using HPE OneView.
Which component must be added to HPE OneView to accomplish this task?

  • A. Baseboard Management Controller (BMC)
  • B. Rack Management Controller (RMC)
  • C. all nPARs created within the complex
  • D. only the base chassis from the complex


Answer : A

Reference:
http://itdoc.hitachi.co.jp/manuals/rv3000/hard/SDF/Server/SDF280/P06150-401a.pdf

Which statement about an HPE OneView server profile is true?

  • A. A server profile can be used to update firmware and drivers when the operating system on the server is up and running
  • B. A server profile created for a specific server hardware type cannot be moved to a server with a different server hardware type
  • C. A server profile can be used to configure a local storage controller, but cannot be used to configure SAN-based storage
  • D. A server profile can be created only for HPE BladeSystem, HPE Synergy, and HPE Superdome Flex servers.


Answer : C

Where is the association between an HPE OneView network and uplink port defined?

  • A. Within an Enclosure Group definition
  • B. Within an HPE OneView network definition
  • C. At the network set level
  • D. At the Logical Interconnect Group level


Answer : D

Reference:
https://techlibrary.hpe.com/docs/synergy/Synergy_D3940/setup_install/238847.htm

Which statement about server hardware types is true?

  • A. Once selected in the server profile, the server hardware type cannot be changed, and a server profile can be moved only between the same type of servers
  • B. Server hardware type can be defined only for HPE Synergy and HPE BladeSystem, but it cannot be defined for HPE ProLiant or Apollo systems
  • C. Administrator has to manually define the server hardware type for any unique server architecture and mezzanine card combination
  • D. The server hardware type is automatically created when a server with unique architecture and mezzanine card configuration is added to HPE OneView


Answer : A

Your customer plans to use HPE OneView to manage a small environment based on HPE ProLiant servers that includes G7 and Gen10 systems.
What should you explain to this customer?

  • A. HPE ProLiant G7 and Gen10 cannot be managed using the same appliance
  • B. HPE Management Agent must be installed for HPE ProLiant Gen10 servers
  • C. Not all of the features will be available for HPE ProLiant G7 systems
  • D. HPE ProLiant Gen10 servers do not need an HPE OneView license


Answer : D

Reference:
https://support.hpe.com/hpesc/public/docDisplay?docLocale=en_US&docId=emr_na-a00036908en_us

Which action is allowed on storage pools managed by HPE OneView?

  • A. Volume provisioning
  • B. Setting storage pool replication
  • C. Changing storage pool RAID level
  • D. Changing storage pool capacity


Answer : D

Reference:
https://support.hpe.com/hpesc/public/docDisplay?docId=emr_na-c03934110

Which operation can be performed using HPE OneView for VMware vCenter Server?

  • A. Remove a new node from an existing cluster.
  • B. Configure VMware cluster properties for HA and ORS.
  • C. Create a new distributed switch for cluster connectivity.
  • D. Create a new VMware cluster within vCenter Server.


Answer : D

You need to configure a RoCE network to enable lossless networking for HPE J2000 Flash Enclosure support.
Which interconnects are able to support this connection? (Choose two.)

  • A. HPE VirtualConnect FlexFabric 10Gb/24-Port Module
  • B. HPE Synergy Virtual Connect SE 32Gb FC Module
  • C. HPE Virtual Connect SE 40Gb F8 Module
  • D. HPE Virtual Connect FlexFabric-20/40 F8 Module
  • E. HPE Virtual Connect SE 100 Gb F32 Module


Answer : CE

Reference:
https://support.hpe.com/hpesc/public/docDisplay?docId=a00118216en_us&docLocale=en_US&page=s_network-roce.html

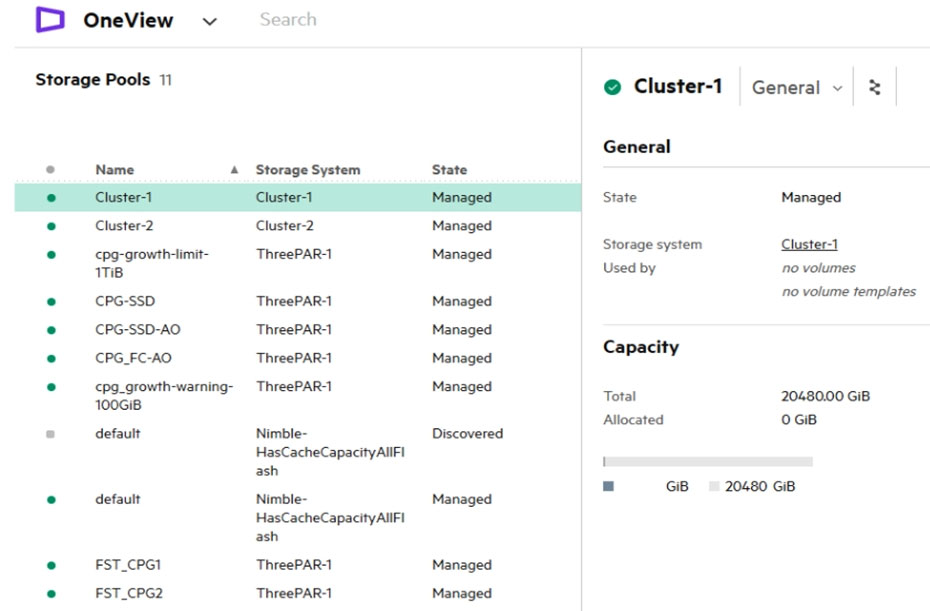

Refer to the exhibit.


Which statement about the presented storage pools is true?

  • A. All storage pools in managed state have a valid HPE OneView license applied.
  • B. All storage pools from the system named ThreePAR-1 can be used for volume provisioning.
  • C. Storage pools in discovered state can be removed from HPE OneView.
  • D. HPE OneView can be used to configure replication only between managed storage pools.


Answer : A

Which statement about logical JBODs configured using HPE OneView and D3940 Storage Modules is true?

  • A. A logical JBOD cannot be created during server profile creation and must be prepared in advance.
  • B. A logical JBOD lifecycle can be associated with a server profile lifecycle and drives can be securely erased.
  • C. Different types of the drives can be used within & logical JBOD as long as they have the same capacity.
  • D. Logical JBOD functionality must be enabled on the Enclosure Group level by a storage administrator.


Answer : C

Your customer plans to monitor HPE ProLiant DL systems and HPE BladeSystem using HPE OneView.
Which license is required to accomplish this task?

  • A. HPE Composer 2 license
  • B. HPE OneView Advanced license
  • C. HPE OneView Global Dashboard license
  • D. HPE OneView Standard license


Answer : D

Page:    1 / 4
Exam contains 52 questions
