Building HPE Hybrid IT Solutions v1.0
Question 1
A customer is planning to deploy a branch office server rack. The environment will have the following requirements:
✑ Single rack with 20 HPE ProLiant DL360 Gen10 Servers.
✑ Each Server will have 6 x 10G SFP+ Ports.
✑ Each Server will have a dedicated iLO port.
✑ The customer requires that only two switches be used.
✑ The customer requires separate control planes.
Which switch configuration can meet these requirements?
- A. 2 ֳ— HPE 5945 Series switch with IRF
- B. 2 ֳ— Aruba 8325 Series switches with VSX
- C. 2 ֳ— HPE 5945 Series switches standalone
- D. 2 ֳ— Aruba 8325 Series switches with backplane stacking.
Answer : C
Question 2
HPE Support asks you to generate an SSD wear gauge report for local storage on an HPE DL360 Gen10 server running VMware.
Which procedure will ensure that the server will boot directly into a maintenance state so you can generate the requested report?
- A. Changing the one-time boot option to Smart Storage Administrator in iLO web-based user interface
- B. Use Always On functionality of Intelligent Provisioning
- C. Changing the one-time boot option to Intelligent Provisioning in iLO web-based user interface
- D. Click Boot to System Setup Utilities in iLO web-based user interface
- E. Changing the one-time boot option to Intelligent Provisioning in HPE OneView
Answer : A
Reference:
https://support.hpe.com/hpesc/public/docDisplay?docId=emr_na-a00051235en_us
Question 3
DRAG DROP -

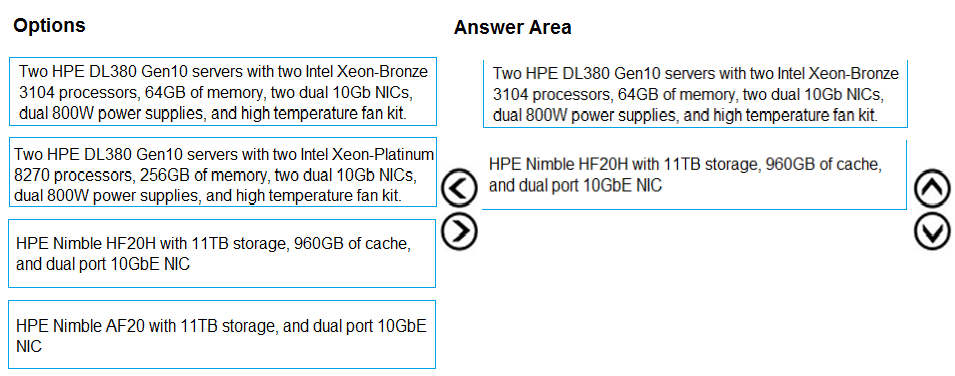

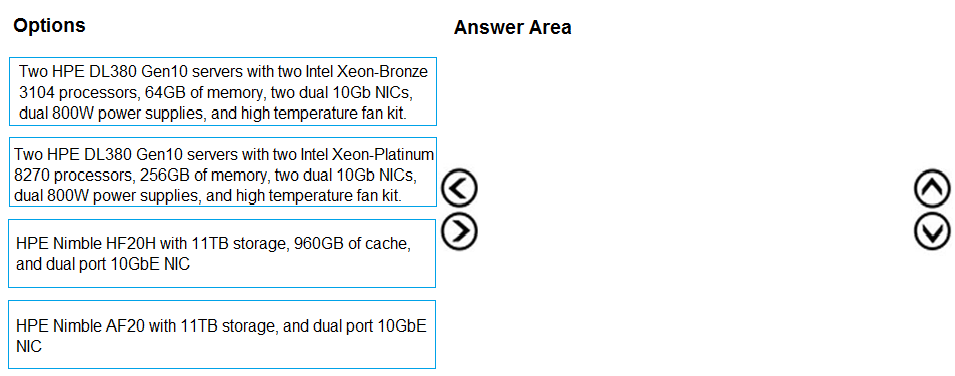

A customer needs a new VMware environment for a critical stock trading application and will need high performance compute and low latency storage.
Identify the correct component configurations on the left and drag them to the answer area on the right. (Choose two.)
Select and Place:
Answer :
Question 4
HOTSPOT -
A solution integrator is installing new equipment to the rack.

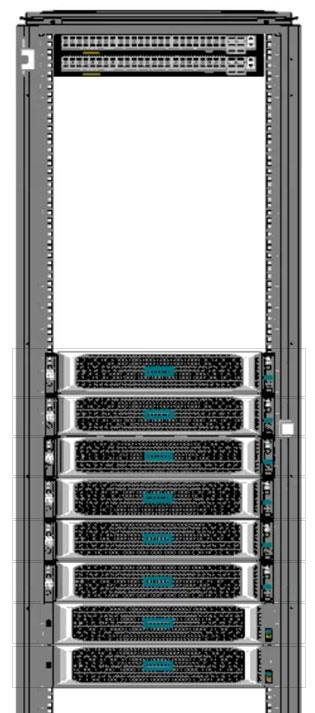

Click the recommended location for HPE R/T3000 Extended Runtime Module.
Hot Area:
Answer :
Question 5
Which HPE solution brings together CPU, Memory, and Disk with an unpredictable workload into a single management infrastructure?
- A. dHCI
- B. SimpliVity
- C. Nimble
- D. Primera
Answer : B
Reference:
https://community.hpe.com/t5/Around-the-Storage-Block/Accelerating-hyperconvergence-with-end-to-end-25GbE-storage/ba-p/7001560
Question 6
Which protocol can be used to access a shared directory on a network-attached storage device?
- A. SNMP
- B. SMB
- C. FCP
- D. BGP
Answer : B
Reference:
https://en.wikipedia.org/wiki/Network-attached_storage
Question 7
DRAG DROP -
Refer to the exhibit.

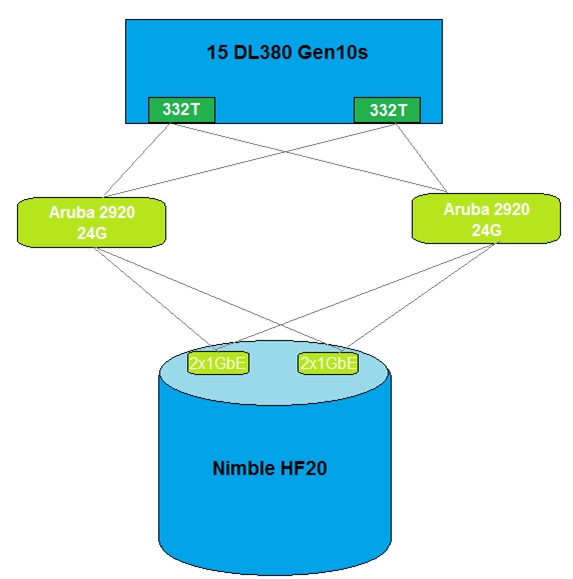

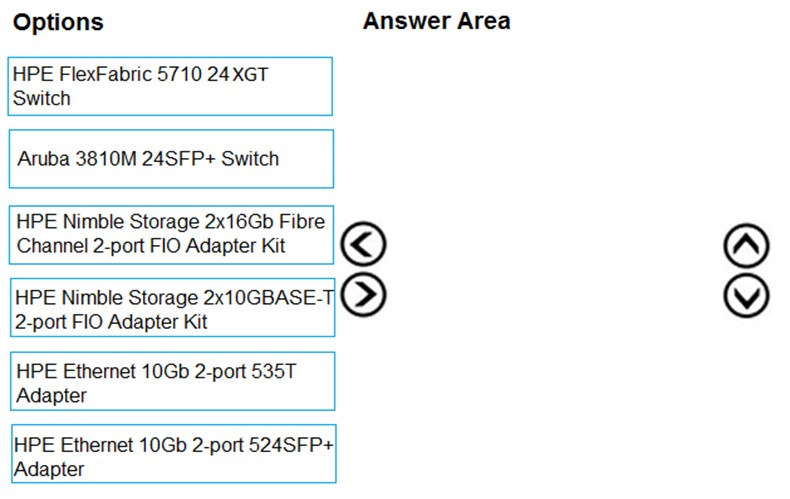

A customer purchased a server/storage environment shown in the exhibit with 1 Gb networking connectivity.
The customer is now experiencing performance issues.

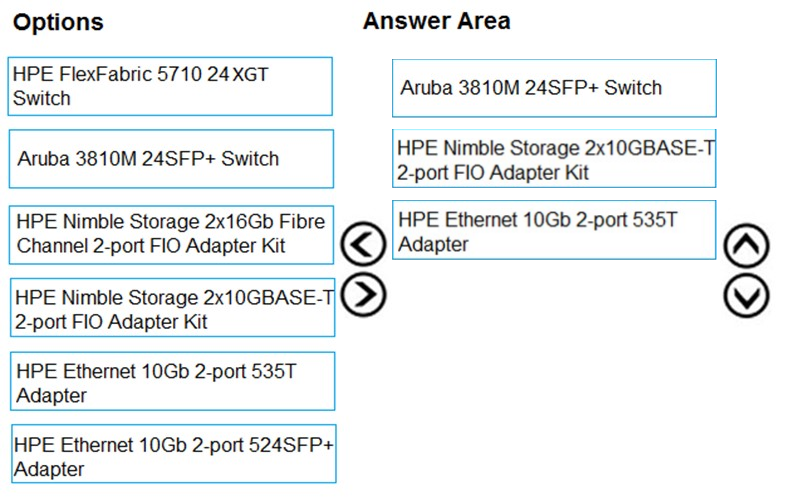

Identify the correct components to upgrade the network connections and improve performance on the left. Then drag those components to the answer area on the right. (Choose three.)
Select and Place:
Answer :
Question 8
A customer needs a virtual desktop infrastructure environment to quickly deploy new desktop images to more than 70 onsite contractors. They plan to use HPE
ProLiant DL360 Gen10 servers running VMware ESXi connected to a shared storage device. The customer requires deduplication because they are concerned about the required storage capacity for the full clone images.
Which storage device would best address their concerns?
- A. HPE MSA 1040
- B. HPE MSA 2052
- C. HPE Nimble AF20
- D. HPE Nimble HF20C
Answer : D
Reference:
https://h20628.www2.hp.com/km-ext/kmcsdirect/emr_na-a00050816en_us-5.pdf
Question 9
Refer to the exhibit.
A customer needs a server with four 10Gb network adapters. They need it to be configured for the best possible network throughput.

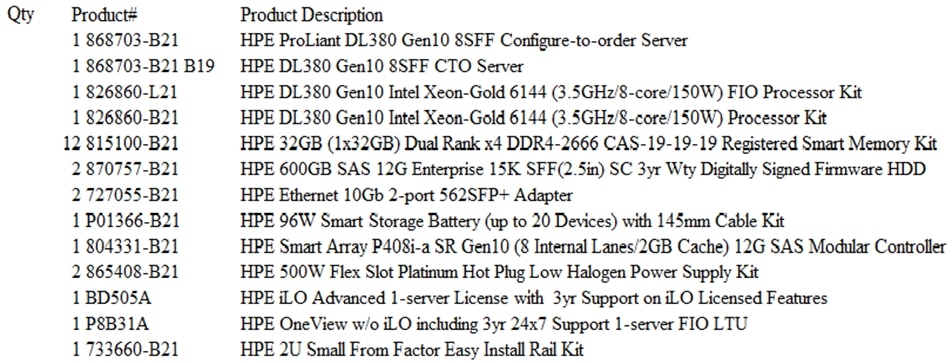

Given the BOM in the exhibit, what do you need to add to this server to meet the customer requirement?
- A. Workload Accelerator
- B. SSD Drives
- C. Smart Storage Hybrid Capacitor
- D. Secondary Riser Kit
Answer : D
Question 10
DRAG DROP -

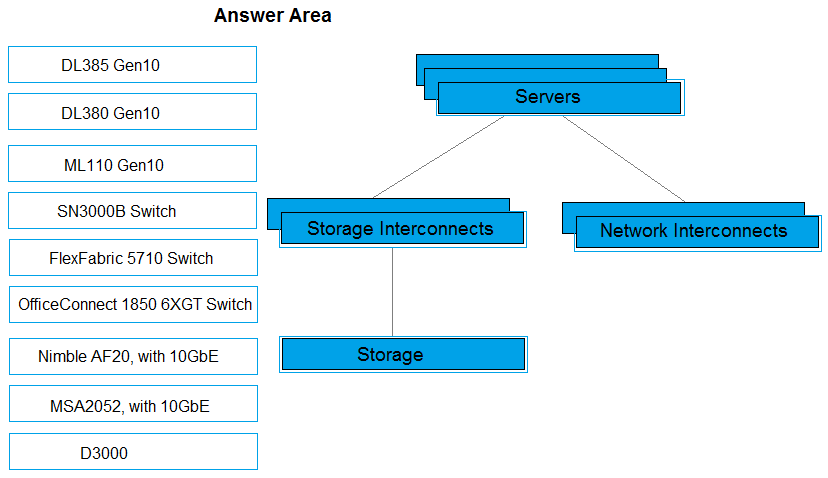

A customer needs a new environment to support an ERP system. The sizing information you received shows the following requirements:
✑ 3 servers with dual AMD processors, 256GB RAM, and 10Gb network connectivity
✑ 10TB of high performance shared storage
✑ Cloud-based performance monitoring and analytics
The customer prefers rack mounted equipment.
Identify the components that will meet the customer requirements, then drag the correct components on the left to their appropriate location in the environment on the right.
Select and Place:
Answer :
Question 11
A customer needs a shared storage solution for a virtualization platform that will host a database application. The customer is considering an HPE Nimble array.
Which feature would lead you to propose an HPE Nimble AF40 over an HPE 3PAR All Flash array?
- A. Fibre Channel Connectivity
- B. 10Gb iSCSI support
- C. Supported by Infosight for predictive analytics
- D. Predictable performance event with one failed controller
Answer : D
Question 12
DRAG DROP -

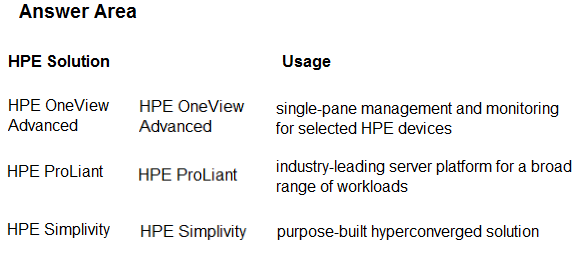

Match each HPE solution to its corresponding technology usage.
Select and Place:
Answer :
Question 13
A customer needs to verify inbound packet statistics for interface Ten-GigabitEthernet 1/0/10 on an HPE FlexFabric 5900 series switch used by an iSCSI storage array.
Which command can be used in the CLI to perform this operation?
- A. show inbound counters port 1/0/10
- B. display counters inbound interface Ten-GigabitEthernet 1/0/10
- C. display all statistics from port 1/0/10
- D. interface Ten-GigabitEthernet 1/0/10 show counters
Answer : B
Question 14
What is a primary benefit of DAS?
- A. It takes advantage of Common Internet File System (CIFS).
- B. It is presented as an iSCSI LUN to the attached server.
- C. It can be accessed by both server and non-server devices simultaneously.
- D. It is connected directly to a server.
Answer : C
Question 15
Refer to the exhibit.

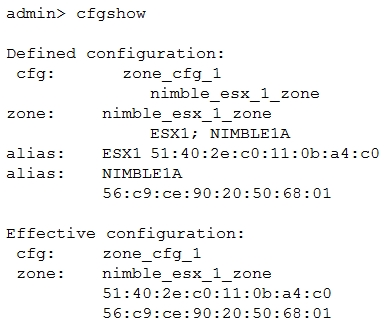

When performing a code upgrade on an HPE Nimble array, you noticed a connection failure on ESX1. Refer to the exhibit showing the complete zoning configuration of one of the HPE SN3000B switches.
What should you do to ensure storage access is not interrupted when doing the next update?
- A. Create and ISL between the two HPE SN3000B switches.
- B. Create a new zone for ESX1 and the second storage controller.
- C. Change the timeout values on the SN3000B switch.
- D. Configure the same zone on a second HPE SN3000B.
Answer : C
