Applying HP FlexNetwork Fundamentals v8.0

Page:    1 / 8
Exam contains 116 questions

A network administrator needs to restrict access to the console port of an HPE Comware switch. When a user connects to the console port and opens a terminal session, the switch should prompt the user for a password. How should the administrator configure user interfaces on the Comware switch?

  • A. Set the authentication mode to password on the VTY 0 15 interfaces and then set the password on the VTY 0 15 interfaces.
  • B. Set the authentication mode to scheme on the VTY 0 15 interfaces and then set the password globally.
  • C. Set the authentication mode to password on the AUX 0 interface and then set the password on the AUX 0 interface.
  • D. Set the authentication mode to scheme on the AUX 0 interface and then set the password globally.


Answer : C

A network administrator wants to establish an LACP link aggregation between an HP
Comware switch and an HP ProVision switch. Which settings should the administrator configure?

  • A. The link aggregation mode should be set to static on the Comware bridge interface, and the ProVision trunk should be set to lacp.
  • B. The link aggregation mode should be set to dynamic on the Comware bridge interface, and the ProVision trunk should be set to trunk.
  • C. The link aggregation mode should be set to static on the Comware bridge interface, and the ProVision trunk should be set to trunk.
  • D. The link aggregation mode should be set to dynamic on the Comware bridge interface, and the ProVision trunk should be set to lacp.


Answer : D

Refer to the Exhibit.
Exhibit: HP Comware switch configuration.
[Comware] vlan 100
[Comware-vlan100] quit
[Comware] vlan 200
[Comware-vlan200] quit
[Comware] interface g1/0/22
[Comware-GigabitEthernet1/0/22] port link-type trunk
[Comware-GigabitEthernet1/0/22] port trunk permit vlan 100 200
[Comware-GigabitEthernet1/0/22] quit
A network administrator configures the Comware switch, as shown in the exhibit. The network administrator then connects a cable from the Comwares g1/0/22 interface to port
5 on an HP ProVision switch. Which configuration will successfully establish connection for
VLAN 1, 100, and 200 between the two switches?

  • A. ProVision (config) # vlan 100ProVision (config) # vlan 200ProVision (config) # vlan 100 tagged 5ProVision (config) # vlan 200 tagged 5
  • B. ProVision (config) # vlan 100ProVision (config) # vlan 200ProVision (config) # interface 5 tagged 100 200
  • C. ProVision (config) # vlan 100ProVision (config) # vlan 200ProVision (config) # interface 5 tagged 100ProVision (config) # interface 5 tagged 200
  • D. ProVision (config) # vlan 100 200ProVision (config) # vlan 100 200 tagged 5


Answer : A

A network administrator configures several HP Comware switches to be part of a single
Intelligent Resilient Framework (IRF) virtual device. What is correct about the domain and member IDs in this configuration?

  • A. The switches have different domain IDs and different member IDs.
  • B. The switches have the same domain ID and the same member ID.
  • C. The switches have the same domain ID and different member IDs.
  • D. The switches have different domain IDs and the same member ID.


Answer : C

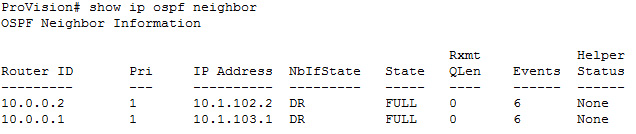

Refer to the exhibit.


Based on the output shown in this exhibit, which statement is true about the 10.0.0.2 neighbor?

  • A. The neighbor is communicating with this switch, but it cannot hold any more routes in its database.
  • B. The neighbor is communicating with this switch, and they have exchanged all topology information.
  • C. The neighbor has mismatched settings and cannot exchange information with this switch.
  • D. The neighbor is rejecting communications because it already has its maximum number of neighbors.


Answer : B

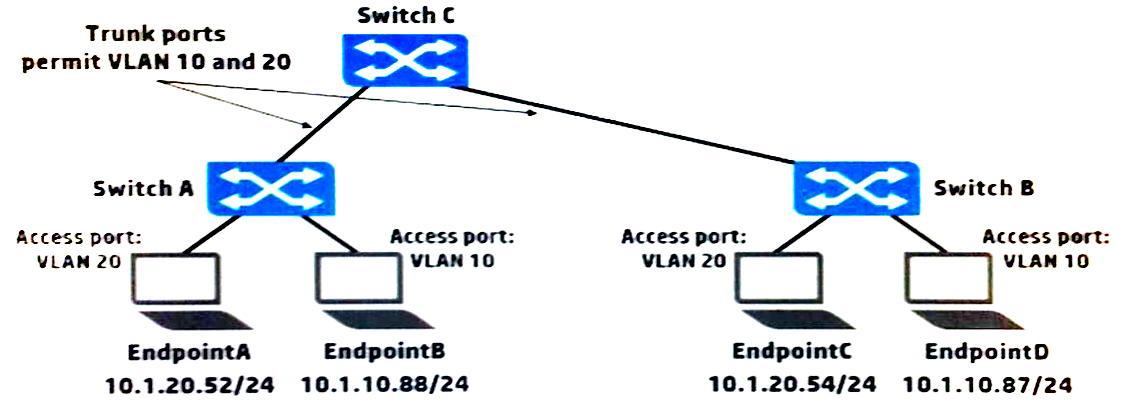

Refer to the exhibit.


Which endpoint or endpoints receive broadcast ARP requests sent by EndpointA?

  • A. EndpointB, EndpointC, and EndpointD
  • B. EndpointB only
  • C. EendpointB and EndpointC only
  • D. EndpointC only


Answer : D

An HP ProVision switch is operating at its factory default settings. A network administrator connects the switch to a VLAN with a DHCP server. The switch-to-switch connection is carrying untagged traffic. The administrator wants to log in to the switch CLI using Telnet.
How should the administrator contact the switch and log in?

  • A. Contact the switch at its DHCP-assigned IP address and log in with the default password hp.
  • B. Contact the switch at its default IP address 192.168.1.1/24 and log in without entering a password.
  • C. Contact the switch at its DHCP-assigned IP address and log in without entering a password.
  • D. Contact the switch at its default IP address 192.168.1.1/24 and log in with the default password hp.


Answer : B

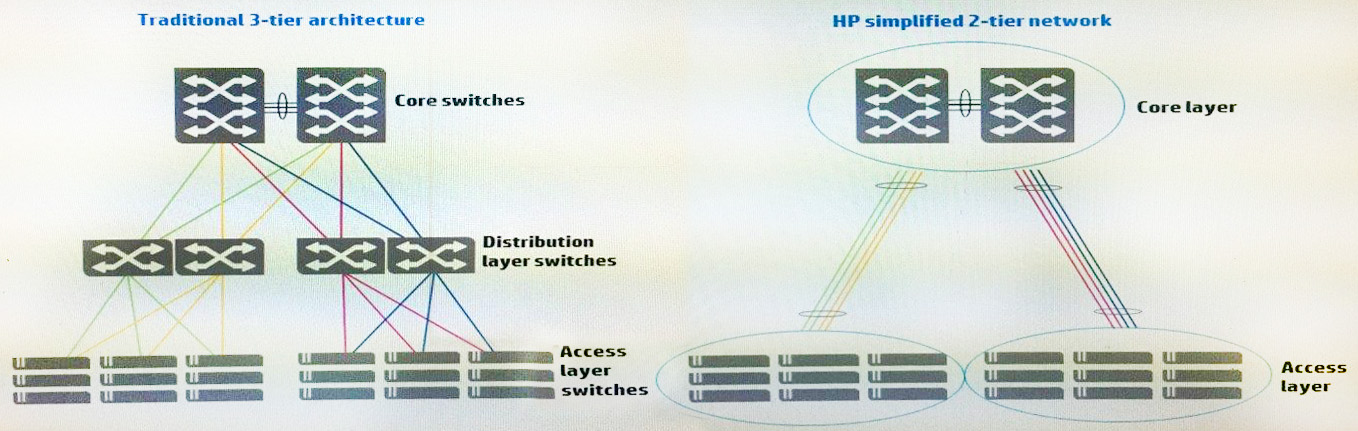

Refer to the exhibit.


The topology shown on the left of the exhibit illustrates a traditional three-tier architecture.
Which technology allows a company to simplify their network with a two-tier topology as illustrated on the right of the exhibit.

  • A. Intelligent Resilient Framework
  • B. Software-defined Networking
  • C. Multiple Spanning Tree Protocol
  • D. Equal Cost Multi-Pathing


Answer : A

A company wants a modular switch for the access layer at its main campus and for several branch offices. Which HP Switch Series is best suited for this role?

  • A. HP 11900
  • B. HP 12900
  • C. HP 5900
  • D. HP 5400R


Answer : C

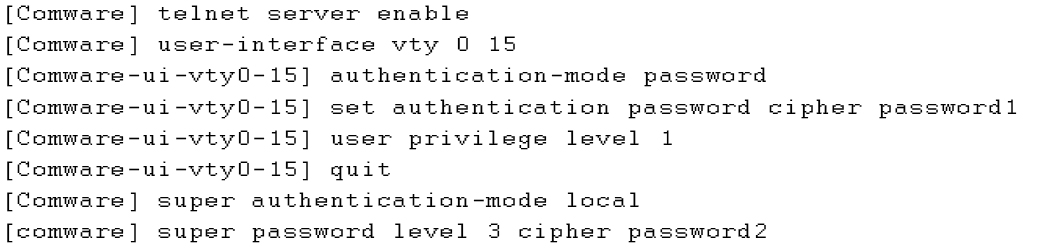

Refer to the exhibit.


An HP Comware switch is using its default user-interface settings. The network administrator then enters the commands shown in the exhibit. What correctly describes how an admin user must now log in?

  • A. When the admin user logs in to the console port, the admin user must enter either a password of password1 or password2.
  • B. When the admin user logs in using Telnet, the admin user must enter either a password of password1 or password2.
  • C. When the admin logs in using Telnet, the admin user must enter a password of password1 and is given level 1 privileges.
  • D. When the admin user logs in to the console port, the admin user must enter a password of password1 and is given level 3 privileges.


Answer : D

Which statement correctly defines the management capabilities of an HP MultiService
Mobility (MSM) access point (AP)?

  • A. The AP only supports controlled mode.
  • B. The AP operates in autonomous mode by default, but can be changed to controlled mode.
  • C. The AP operates in controlled mode by default, but can be changed to autonomous mode.
  • D. The AP only supports autonomous mode.


Answer : C

A network administrator wants to disable physical interfaces 13-24 on an HP ProVision switch. How can the administrator do this?

  • A. Create a named port group for interfaces 13-24. Then disable the named port group.
  • B. Use the interface <ID> disable command. Specify 13-24 for the ID.
  • C. Assign the range of interfaces to a VLAN. Then, disable the VLAN.
  • D. Create a named range for interfaces 13-24. Then, disable the named range.


Answer : D

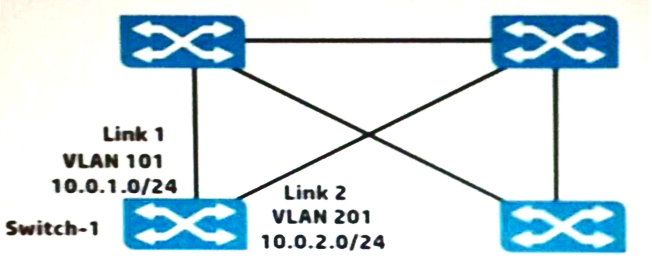

Refer to the exhibit.


Switch-1 is an HP ProVision switch.
A network administrator wants Switch-1 to run Open Shortest Path First (OSPF) and create neighbor relationship on Links 1 and 2. What should the administrator do to accomplish this?

  • A. Access the VLAN context for the VLANs assigned to Links 1 and 2, and enable OSPF.
  • B. Access the global configuration context, and create OSPF routes to 10.0.1.0/24 and 10.0.2.0/24.
  • C. Access the physical interface context for the Link 1 and 2 ports, and enable OSPF.
  • D. Access the OSPF area 0 context and specify the networks on Links 1 and 2 (10.0.1.0 0.0.0.255 and 10.0.2.0 0.0.0.255).


Answer : B

An endpoint device requests an address by using DHCP. What is the first message the client sends to initiate this process?

  • A. DHCPREQUEST
  • B. DHCPQUERY
  • C. DHCPDISCOVER
  • D. DHCPOFFER


Answer : C

Where is priority information stored in an Ethernet frame?

  • A. 802.1Q VLAN tag
  • B. IP Precedence field
  • C. DSCP field
  • D. TOS tag


Answer : A
