VMAX Family Specialist Exam for Platform Engineers v7.0

Page:    1 / 5
Exam contains 65 questions

What will support the SRDF/A Multi-Cycle mode when multiple SRDF/A cycles are created on the R1 side?

  • A. VMAX3 source and VMAX target
  • B. DMX sourceand VMAX3 target
  • C. VMAX3 source and VMAX3 target
  • D. VMAX source and VMAX3 target


Answer : D

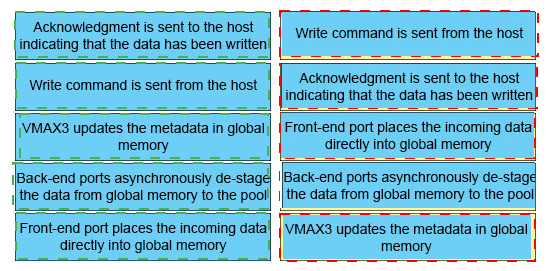

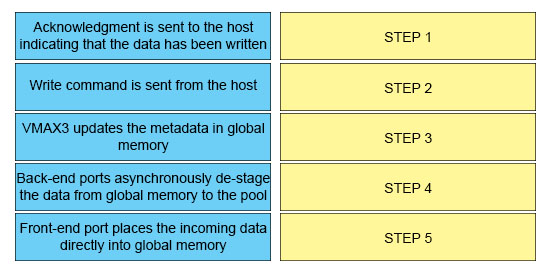

What is the correct sequence of steps for VMAX3 HYPERMAX OS FAST write operations?




Answer :

Explanation:
Step 1 write command is sent from the host
Step 2 - acknowledgment is sent to the host indicating that the data has been written
Step 3 - Front-end port places theincoming data directly into global memory
Step 4 - Back-end ports asynchronously de-stage the data from global memory to the pool
Step 5 - VMAX3 updates the metadata in global memory

Which task is performed on a VMAX 40K when running the Configure and Install New script?

  • A. Configure the installed software
  • B. Configure the SRP
  • C. Verify MMCS connectivity
  • D. Load the license file


Answer : D

You have selected to run an MMCS-1 replacement from MMCS-2. What will happen to
MMCS-2 when run the MMCS-1 replacement task is clicked?

  • A. Secondary MMCS-2 becomes the Primary MMCS-2
  • B. Secondary MMCS-2 becomes the Elevated Secondary MMCS-2
  • C. Secondary MMCS-2 becomes the Elevated Primary MMCS-2
  • D. MMCS-1 becomes the Elevated Primary MMCS-1


Answer : A

What is the maximum host device size on a VMAX3?

  • A. 5 TB
  • B. 8 TB
  • C. 16 TB
  • D. 32 TB


Answer : C

What is the maximum number of front-end ports for host connectivity in a VMAX 100K?

  • A. 32
  • B. 64
  • C. 128
  • D. 256


Answer : D

On a VMAX3, how many different user roles are available when using user-based authorization?

  • A. 4
  • B. 6
  • C. 7
  • D. 9


Answer : A

On a VMAX3, how many I/O module slots are available per director?

  • A. 10
  • B. 11
  • C. 12
  • D. 15


Answer : A

You are working on a VMAX dual engine system bay that includes three SPS trays. Which system bay number(s) will support this SPS configuration?

  • A. System Bay 1 only
  • B. System Bays 1-4
  • C. System Bay 2 only
  • D. System Bay 4 only


Answer : A

Which VMAX model can have up to eight engines (1 or 2 system bays), 3200 drives (2.5),
4 PBu capacity, 2 TB cache, and 128 ports?

  • A. 20K
  • B. 40K
  • C. 200K
  • D. 400K


Answer : B

In a VMAX3 bay configured with only one engine, to which component(s) does SPS 3A/3B supply power?

  • A. InfiniBand switches
  • B. Engine only
  • C. Engine and Fabric
  • D. Fabric only


Answer : B

You are working on a VMAX family array with a S/N Identifier of x987. Based on the S/N
Identifier given, what is the array model?

  • A. 10K
  • B. 40K
  • C. 100K
  • D. 200K


Answer : A

You are inspecting a VMAX3 at a customer site. Which physical component will differentiate a VMAX 400K from other VMAX models?

  • A. Dual 12-port InfiniBand fabric switches
  • B. Dual 18-port InfiniBand fabric switches
  • C. Dual Ethernet switches
  • D. Dual MMCS


Answer : B

You are connected to a VMAX or VMAX3 system using Simplified SymmWin. Where in the
GUI do you navigate to in order to conduct a FRU?

  • A. Replacements Log View Block
  • B. Tasks View Block
  • C. Bad FRUs Tab
  • D. FRU Procedure Wizard


Answer : A

What is the maximum number of linked targets, per source, allowed with TimeFinder
SnapVX?

  • A. 256
  • B. 512
  • C. 1024
  • D. 2048


Answer : C
