VPLEX Specialist Exam for Implementation Engineers v8.0

Page:    1 / 14
Exam contains 210 questions

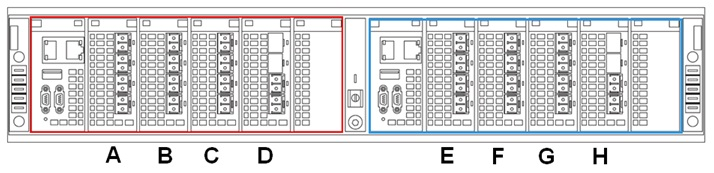

Refer to the exhibit.


Which two modules are used for WAN-COM connectivity?

  • A. C and G
  • B. C and D
  • C. D and E
  • D. G and H


Answer : A

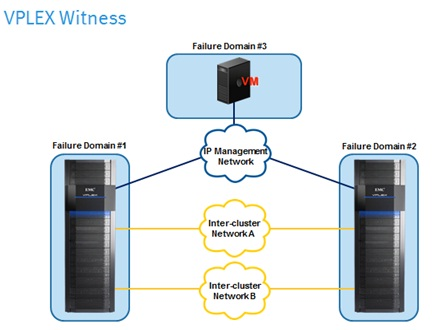

Refer to the exhibit.


What is the purpose of VPLEX Witness in a Metro environment?

  • A. Prevent cluster link failure and stop I/O transfer. Split consistency groups and failover consistency groups.
  • B. Send notifications and pause I/O transfer. Initiate vault dump and failover consistency groups.
  • C. Observe state of the clusters and suspend I/O. Execute health check and resume I/O.
  • D. Observe the state of the clusters and distinguish link outages. Intercluster failures and resume or suspend I/O.


Answer : D

What is a group of VPLEX directors that participate in the cache coherence protocol for a virtual volume?

  • A. Share Group
  • B. Consistency Group
  • C. Storage View
  • D. Administrative Domain


Answer : A

Refer to the exhibit.

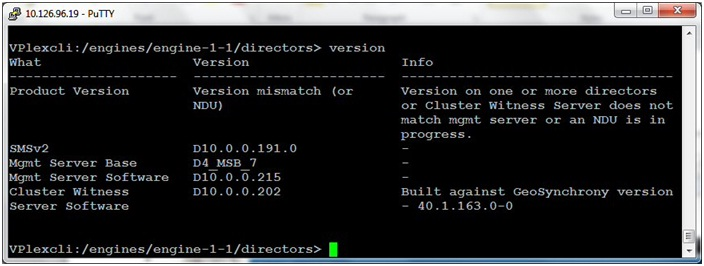

You are preparing to upgrade a VPLEX Metro system. You ran the version command to begin the verification process and received the output shown.
What is the most likely reason for the warning?

  • A. The Metadata volume is in an NDU state.
  • B. The Cluster Witness is at the wrong version.
  • C. The Management Server is at the wrong version.
  • D. The directors are in an NDU state.


Answer : B

What three elements are part of the VPLEX Storage View?

  • A. VPLEX FE Port Top-Level Device Host IP address
  • B. VPLEX FE Port Initiator Port Virtual Volume
  • C. VPLEX BE Port VPLEX FE Port Virtual Volume
  • D. VPLEX BE Port Initiator Port Virtual Volume


Answer : B

Following EMC best practices, which information is required to register a VPLEX on an
ESRS portal?

  • A. Site ID; cluster TLA serial number; Management server eth3 IP address
  • B. License ID; engine serial number; Management server eth3 IP address
  • C. Site ID; engine serial number; Management server eth3 IP address
  • D. Site ID; cluster TLA serial number; Witness IP address


Answer : A

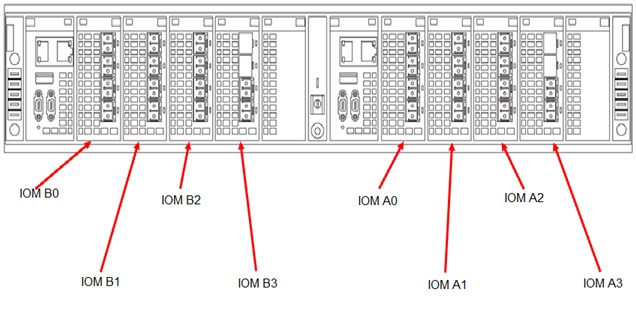

Refer to the exhibit.


What is the module at IOM A0 used for?

  • A. Director A Back-end Connectivity
  • B. Director A WAN COM Connectivity
  • C. Director A Front-end Connectivity
  • D. Director A Local Com Connectivity


Answer : C

A customer is moving some VMAX devices under a VPLEX Local and is using PowerPath as multipath software.
What is the SCSI product ID assigned to VPLEX volumes?

  • A. Invista
  • B. VPLEX
  • C. PowerPath
  • D. VMAX


Answer : A

medium-sized VPLEX clusters are connected via IP with a round-trip latency of approximately 35 ms.
What type of configuration is this?

  • A. Geo
  • B. Metro
  • C. Local
  • D. Global


Answer : A

Refer to the exhibit:


Which two modules are used for WAN-COM connectivity?

  • A. C and G
  • B. A and E
  • C. D and E
  • D. C and F


Answer : A

What should be the maximum latency between a VPLEX Management Server and the
Cluster Witness?

  • A. 1 sec
  • B. 50 ms
  • C. 5 ms
  • D. 1 ms


Answer : A

How do you verify that the VPLEX upgrade has completed successfully?

  • A. Log into the VPLEX Unisphere interface.
  • B. Run the cluster-summary command.
  • C. Check that the system LED is green on each director.
  • D. Run the ndu pre-check command.


Answer : D

Do virtual volumes need to be taken off-line prior to upgrading VPLEX software, and why or whynot?

  • A. Yes, to preserve data integrity
  • B. Yes, because the host-based multi-pathing software provides direct access during the upgrade
  • C. No, because VPLEX software can be upgraded non-disruptively
  • D. No, because the upgrading can be undone


Answer : C

What unique logical identifier is recommended when determining the relationship between a virtual volume and the back-end storage array?

  • A. WWPN
  • B. LUN ID
  • C. VPD ID
  • D. FCID


Answer : C

What is EMC's best practice for fault tolerance when zoning a VPLEX Metro together over fibre channel for successful communication between the sites?

  • A. Ensure that all fibre channel WAN-COM ports are zoned to each other in both SAN fabrics (Many-to-Many Zoning).
  • B. Ensure that all fibre channel Local-COM ports are zoned to the WAN-COM ports in both SAN fabrics (One-to-Many Zoning).
  • C. Ensure that all fibre channel Local-COM ports are zoned to each other in both SAN fabrics (Many-to-Many Zoning).
  • D. Ensure that all fibre channel WAN-COM ports are zoned to each other in both SAN fabrics (One-to-Many Zoning).


Answer : D
