Specialist - Implementation Engineer, Campus Networking Exam v1.0
Question 1
You need to configure OSPF on a DNOS 6 switch and have entered the following:
Switch-1(config)# ip routing -
Switch-1(config)# interface vlan 20
Switch-1(config-if-vlan20)# ip address 10.1.20.1 255.255.255.0
Switch-1(config)# router ospf -
Switch-1(config-router)# router-id 10.1.1.1
Based on the information referenced above, what is missing from the configuration?
- A. area 0 is missing from the ip routing command
- B. ip ospf area 0 is missing from the interface vlan 20 section
- C. router ospf is missing the routing instance
- D. area 0 is missing from the router-id command
Answer : B
Question 2
A network administrator is setting up several stacks in their network that includes different Dell EMC N-Series models.
Which N-Series switch models require mini-SAS stacking cables?
- A. N1100 and N1500
- B. N1500 and N3000
- C. N2000 and N3000
- D. N3000 and N4000
Answer : C
Reference:
https://cdn.cnetcontent.com/syndication/mediaserverredirect/c1ddae5629f69c40c5da9c0d36cb045f/original.pdf
Question 3
A network administrator added a new Dell EMC N-Series switch into their network with RSTP configured. The spanning-tree priority on all existing switches has been left at the default value.
If the administrator wants this new switch to become the spanning tree root, which command should be used?
- A. spanning-tree priority 4096
- B. spanning-tree priority 32768
- C. spanning-tree priority 36864
- D. spanning-tree priority 61440
Answer : A
Reference:
https://www.dell.com/support/article/en-us/how10394/how-to-manage-rapid-spanning-tree-rstp-thru-command-line-on-dell-networking-powerconnect- switches?lang=en
Question 4
A network administrator has configured a 4-port port-channel between two Dell EMC Campus networking switches. The physical interfaces show as administratively up and operationally up on both switches. However, the port-channel shows as operationally up on Switch A and operationally down on Switch B.
What is a potential reason for the inconsistent port-channel state?
- A. Switch A is configured to use dynamic port-channels and Switch B is configured to use static port-channels
- B. Ports in the port-channel on Switch A are all the same speed but the ports in the port-channel on Switch B are a mix of speeds
- C. Switch A is configured using channel-group # mode on and Switch B is configured using channel-group # mode auto
- D. N-Series supports a maximum number of physical interfaces that can be included in port-channels on a per-device basis
Answer : C
Question 5
What describes the POE+ capabilities of the Dell EMC N1100P Series?
- A. Supported on any of the first half of switch ports or the first 12 switch ports, whichever is fewer. May only be enabled on a maximum of half of the supported ports.
- B. Supported on any of the first 12 switch ports or all switch ports, whichever is fewer. May only be enabled on a maximum of half of the supported ports.
- C. Supported on all of the first 12 switch ports or all switch ports, whichever is fewer.
- D. Supported on all of the first half of switch ports or the first 12 switch ports, whichever is fewer.
Answer : B
Question 6
Which port security method converts existing dynamically learned MAC addresses on an interface to this mode and not age out?
- A. Static
- B. MAC address
- C. Sticky
- D. Dynamic
Answer : D
Reference:
https://www.dell.com/support/manuals/us/en/04/networking-s4148f-on/smartfabric-os-user-guide-10-5-1/port-security?guid=guid-c27a9d47-ea59-48cc- b19d-90a9f6d52629&lang=en-us
Question 7

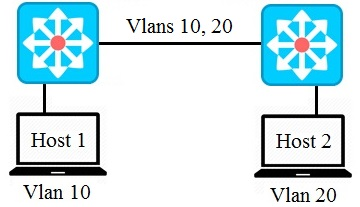

Refer to the Exhibit.
A network administrator needs to configure the switches to allow traffic to communicate from Host 1 to Host 2.
Which recommended switch port mode should the interconnecting switch ports be configured?
- A. Access
- B. Trunk
- C. VLAN Stacking
- D. Hybrid
Answer : B
Question 8
Two switches are part of the same VRRP group with the following priorities configured:
Switch1: Priority 110 -
Switch2: Priority 90 -
Switch2 is required to be the Master if interface GigabitEthernet 0/2 on Switch1 fails.
Which configuration should be part of the setup?
- A. Switch1(conf-if-vlan10)# vrrp 1 track interface vlan 20 decrement 100 Switch1(conf-if-vlan10)# no vrrp 1 preempt
- B. Switch2(conf-if-vlan10)# vrrp 1 track interface vlan 20 decrement 100 Switch2(conf-if-vlan10)# no vrrp 1 preempt
- C. Switch1(conf-if-vlan10)# vrrp 1 track interface vlan 20 decrement 100 Switch1(conf-if-vlan10)# vrrp 1 preempt
- D. Switch2(conf-if-vlan10)# vrrp 1 track interface vlan 20 decrement 100 Switch2(conf-if-vlan10)# vrrp 1 preempt
Answer : C
Question 9
Which technologies can be implemented when configuring policy-based routing?
- A. Policy-maps, Extended ACLs, and MAC ACLs
- B. Policy-maps, Route-maps, and Extended ACLs
- C. Route-maps, Extended ACLs, and MAC ACLs
- D. Route-maps, Policy-maps, and MAC ACLs
Answer : B
Question 10
A network has two switches with the following IP addresses:
Switch1: 192.168.1.240 -
Switch2: 192.168.1.241 -
The administrator wants to add VRRP on an existing switch configuration using the virtual IP 192.168.1.240.
What is a VRRP requirement for this configuration?
- A. Priority 241 on Switch2
- B. Priority 255 on Switch1
- C. Virtual Router ID 1
- D. Virtual Router ID 240
Answer : B
Question 11
Which RSTP-PV features are embedded and cannot be disabled?
- A. DirectLink Rapid Convergence and DirectLink Fast Rapid Convergence
- B. InditectLink Rapid Convergence and IndirectLink Fast Rapid Convergence
- C. DirectLink Rapid Convergence and IndirectLink Fast Rapid Convergence
- D. DirectLink Fast Rapid Convergence and IndirectLink Rapid Convergence
Answer : C
Reference:
https://www.manualslib.com/manual/858353/Dell-Networking-N4000-Series.html?page=724
Question 12
A Master switch failed in a Dell EMC N-Series three-unit switch stack and the Standby switch assumed the role of Master.
What happens when the failed Master switch rejoins the stack after the new Master has taken over?
- A. Switch joins the stack as the Standby
- B. Switch must be manually configured to rejoin the stack
- C. Switch joins the stack as a Member
- D. Switch joins the stack and resumes as the Master
Answer : C
Question 13
What is the maximum number of dynamic MAC addresses that can be learned on a Dell EMC N-Series switchport that is configured for dynamic locking?
- A. 100
- B. 300
- C. 400
- D. 600
Answer : A
Reference:
https://www.dell.com/support/article/en-us/how10392/how-to-configure-mac-based-port-security-on-dell-n2000-n3000-and-n4000-series-switches? lang=en
Question 14
A network administrator is setting up a Class 5 powered device in their network.
Which Dell EMC N-Serves switch model(s) will support this device?
- A. N1100P and N2000P
- B. N1500P
- C. N2000 and N3000P
- D. N3000P only
Answer : C
Question 15
Which switchport mode is recommended for ports on a Dell EMC N-Series switch with IP phones using voice VLAN?
- A. Access
- B. Active
- C. Hybrid
- D. General
Answer : D
