Specialist – Implementation Engineer, SC Series Exam v1.0
Question 1
You are deploying a new SCv2020 system with four additional SCv100 expansion enclosures. What is the spare-to-managed drive ratio?
- A. 1 spare for every drive of that type per enclosure
- B. 1 spare for every 24 managed drives of that drive type
- C. 1 spare per enclosure regardless of the drive type
- D. 1 spare for every 20 managed drives of that drive type
Answer : D
Question 2
How many SC420 enclosures can be supported by the SC7020 controller?
- A. 4
- B. 8
- C. 6
- D. 12
Answer : B
Reference:
http://topics-cdn.dell.com/pdf/storage-sc7020_owners-manual_en-us.pdf
Question 3
When configuring an SC Series array, why should a 4 MB data page size be selected?
- A. When systems have large files with infrequent snapshots
- B. This is the default data page size
- C. This is an invalid data page size and cannot be selected
- D. When applications have high performance needs
Answer : A
Reference:
https://www.google.com/url?
sa=t&rct=j&q=&esrc=s&source=web&cd=3&cad=rja&uact=8&ved=2ahUKEwi3q7b4saPcAhXlyYUKHeA7DwQQFjACegQIAhAC&url=http%3A%2F%
2Fen.community.dell.com%2Fcfs-file%2F__key%2Ftelligent-evolution-components-attachments%2F13-4491-00-00-20-43-80-40%
2FSC_2D00_Series_2D00_storage_2D00_MySQL_2D00_best_2D00_practices_2D00_Dell_2D00_2016_2D002800_3063_2D00_BP_2D00_O_2900_.pdf%
3Fforcedownload%3Dtrue&usg=AOvVaw2rmM_IZMcWAd0miqxbdnz7
Question 4

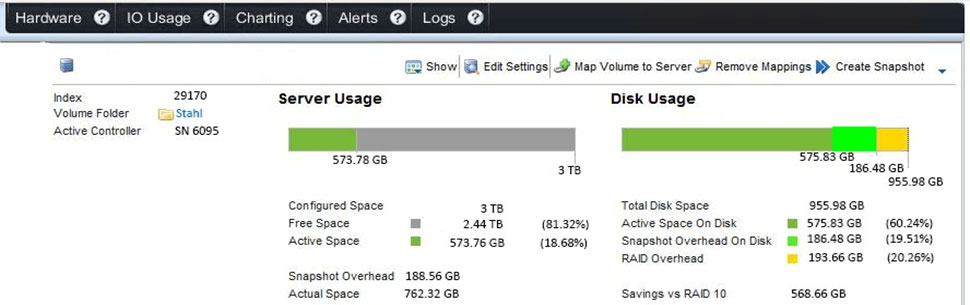

A customer notices a volume is using an above average amount of Tier 1 RAID 10 space. What can be done to force this data into a lower RAID set/Tier?
- A. Stop I/O to the volume
- B. Change the storage profile of the volume
- C. Take a manual snapshot
- D. Move data to a different volume
Answer : C
Question 5
Which SC Series licenses are applied at the factory?
- A. SC4020 and SC7020
- B. SC7020 and SCv2000
- C. SC8000 and SC9000
- D. SCv2000 and SC8000
Answer : B
Question 6
Which SC Series array feature simplifies iSCSI connectivity and allows access to all ports through redirection?
- A. Legacy Port Mode
- B. ISNS
- C. ALUA
- D. Virtual Port Mode
Answer : D
Reference:
https://www.dell.com/storagehelp/dellstorageclient/2016R3.10/en-US/GUID-2D6A2482-F78D-4598-ADA3-D9E49ED3ED7F.html
Question 7
When an RS-232 serial cable is connected between a service laptop and SC Series hardware, which parameters need to be selected?
- A. Baud Rate = 9600, Parity = None Data Bits = 8, Stop Bits =1, Flow Control = XON/XOFF
- B. Baud Rate = 115200, Parity = None Data Bits = 8, Stop Bits = 1, Flow Control = XON/XOFF
- C. Baud Rate = 115200, Parity =None Data Bits = 8, Stop Bits = 1, Flow Control = None
- D. Baud Rate = 115200, Parity = Even Data Bits = 8, Stop Bits = 1, Flow Control = XON/XOFF
Answer : A
Question 8

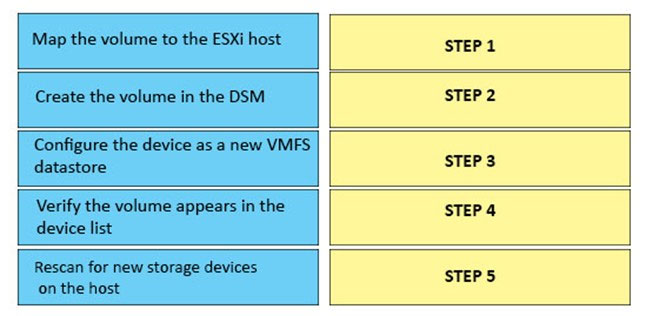

DRAG DROP -
What is the correct sequence of steps to present a volume to an ESXi host?
Select and Place:
Answer :
Question 9
You are about to perform the post-setup tasks with the Storage-Center wizard. What information is required before proceeding?
- A. Customer contact information for the Storage Center
- B. Management IPv4 address for the Storage Center
- C. Email address for the default administrator
- D. NTP server IPv4 address for the Storage Center
Answer : B
Question 10

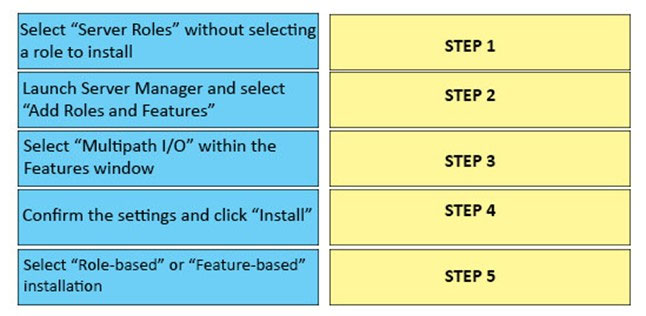

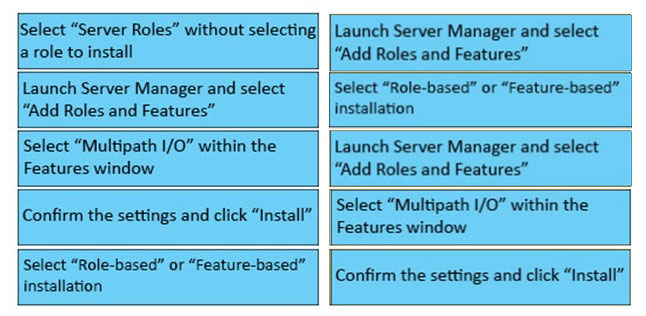

DRAG DROP -
What is the correct sequence of steps to enable MPIO on a Microsoft Windows 2012 Server?
Select and Place:
Answer :
Reference:
https://www.google.com/url?
sa=t&rct=j&q=&esrc=s&source=web&cd=1&cad=rja&uact=8&ved=2ahUKEwiJp4ycsqPcAhVHExoKHepYCMwQFjAAegQIAhAC&url=http%3A%2F%
2Fen.community.dell.com%2Fcfs-file%2F__key%2Ftelligent-evolution-components-attachments%2F13-4491-00-00-20-43-79-17%
2FMicrosoft_2D00_MPIO_2D00_Best_2D00_Practices_2D00_SC_2D00_Series_2D00_Dell_2D00_EMC_2D00_2018_2D002800_CML1004_2900_.pdf%
3Fforcedownload%3Dtrue&usg=AOvVaw2foebDH3pmaXkf7qJue_Vb
Question 11
While setting up replication, you see an option for ג€Replication Deduplicationג€. What is the function of this option?
- A. Provides the same function as Data Reduction, Deduplication
- B. Compresses and deduplicates data prior to replicating
- C. Replicates only the data that has changed in a page
- D. Replicates the entire page and deduplicates on the destination system
Answer : C
Reference:
https://www.google.com/url?
sa=t&rct=j&q=&esrc=s&source=web&cd=1&cad=rja&uact=8&ved=2ahUKEwje0buSuKPcAhVDLBoKHYHGAhMQFjAAegQIARAC&url=http%3A%2F%
2Fen.community.dell.com%2Ftechcenter%2Fextras%2Fm%2Fwhite_papers%2F20442456%2Fdownload&usg=AOvVaw1SJ46HpaEGy-2VLZi0ugSK
Question 12
How much memory does the Dell Storage Manager (DSM) Virtual Appliance require to manage seven SC Series arrays?
- A. 2 GB
- B. 4 GB
- C. 8 GB
- D. 16 GB
Answer : B
Question 13
A customer wants to add an SC420 and an SC200 to a SC7020 storage array. What is the recommended approach to adding the new enclosures?
- A. One single SAS chain connected to a 6 Gb SAS card
- B. One single SAS chain connected to a 12 Gb SAS card
- C. Two separate SAS chains connected to a 6 Gb SAS card
- D. Two separate SAS chains connected to a 12 Gb SAS card
Answer : D
Question 14

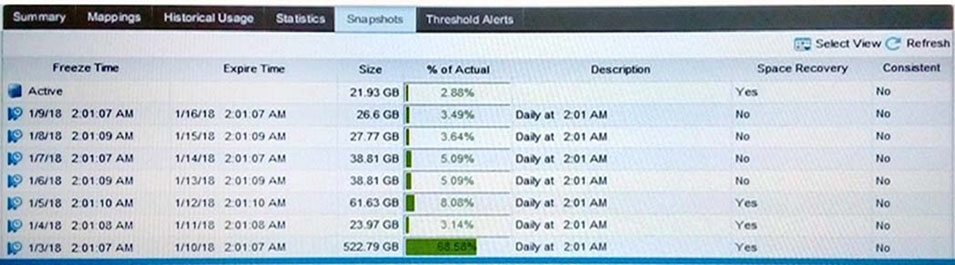

Refer to the Exhibit.
A customer needs your assistance in recovering files that were deleted from an SC Series array volume. The files were deleted around 1:00 AM on January 7
.
Based on the exhibit of the Dell Storage Manager (DSM), which recommendation allows the customer to recover the most recent deleted files?
- A. Take a manual snapshot and then select ג€Create Volume from Snapshotג€
- B. Select ג€Create Volume from Snapshotג€ taken on January 7 and map to a server
- C. Recover from backup, deleted files are unrecoverable from the storage array
- D. Select ג€Create Volume from Snapshotג€ taken on January 6 and map to a server
Answer : D
Question 15

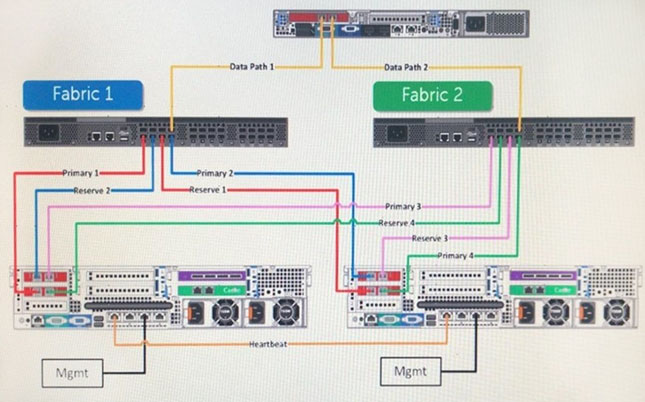

Refer to the Exhibit.
A customer has asked you to perform a port failover test to demonstrate system resiliency. What is needed to complete this task?
- A. Add more cables per switch
- B. Switch to Legacy Port Mode
- C. Add more switches per controller
- D. Switch to Virtual Port Mode
Answer : C
