Designing and Deploying Microsoft Exchange Server 2016 v1.0
Question 1
Overview -
General Overview -
Contoso, Ltd. is an international company that has 3,000 employees. The company has sales, marketing, research, and human resource departments.
Physical Locations -
Contoso has two main offices. The offices are located in New York and Chicago. Each office has a data center.
The New York office uses a network subnet of 10.1.0.0/16. The Chicago office uses a network subnet of 10.128.0.0/16.
The offices connect to each other by using a WAN link. Each office connects directly to the Internet.
Existing Environment -
Active Directory -
The network contains an Active Directory forest named contoso.com. The forest contains a single domain. All domain controllers run Windows Server 2012 R2.
The forest functional level is Windows Server 2012 R2.

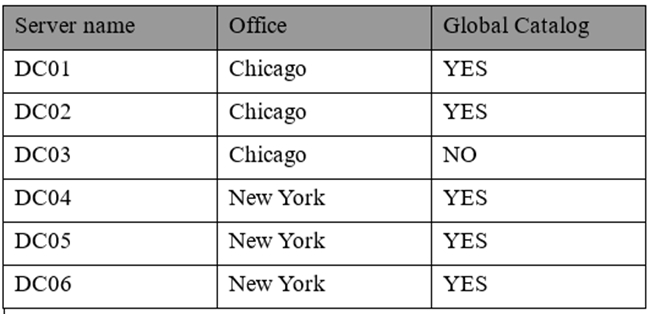

The forest contains six domain controllers configured as shown in the following table.
The forest is configured as a single Active Directory site.
Active Directory administrators manage the Active Directory schema. Exchange Server administrators do not have access to modify the schema.
Contoso has deployed Active Directory Rights Management Services (AD RMS).
Current Business Model -
Contoso partners with a company names Fabrikam, Inc. on manufacturing initiatives. The partnership between Contoso and Fabrikam requires that both companies share confidential information frequently.
Requirements -
Business Goals -
Contoso plans to install Exchange Server 2016 to provide messaging services for its users.
It must be as easy as possible for the users at Contoso to share free/busy information with the users at Fabrikam.
As much as possible, Contoso plans to minimize the costs associated with purchasing hardware and software.
Planned Changes -
Contoso plans to implement the following changes before installing Exchange Server 2016:
Install hardware Network Load Balancing (NLB) devices in the New York and Chicago offices.
Implement Microsoft Office Online Servers in the New York and Chicago offices.
Provide Contoso users with company-approved tablets.
Planned Messaging Infrastructure
You plan to create an Exchange Server 2016 organization named Contoso. You plan to deploy seven servers that will have Exchange Server 2016 installed. The servers will be configured as shown in the following table.

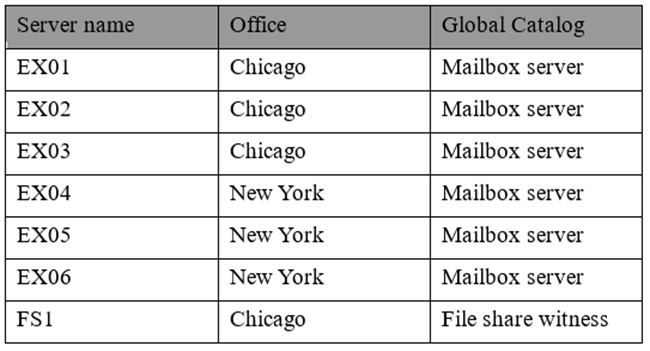

All of the servers will be members of a database availability group (DAG) named DAG01.
Client Access Requirements -
Contoso identifies the following client access requirements for the planned deployment:
Users must be able to configure their tablet to synchronize email by using Autodiscover.
Users must be able to access the Exchange Server organization by using the following names:
- Mail.contoso.com
- Autodiscover.contoso.com
Users must be able to access Outlook on the web internally and externally from their tablet.
Users must be able to access Office Online Server by using the URL of office-online.contoso.com.
Security Requirements -
Contoso identifies the following security requirements for the planned deployment:
Exchange Server mailbox databases must be encrypted while at rest.
Users must be prevented from using Outlook on the web while they are offline.
Contoso users must be able to share Calendar details with approved external domains only.
Email messages sent to the users in the fabrikam.com SMTP domain must be encrypted automatically.
Whenever possible, client computers must be directed to the same Exchange server for log collection.
Users must be able to access their mailbox by using Exchange ActiveSync on the company-approved tablets only.
Email messages sent from the users in the human resources department of Contoso must be protected by using AD RMS, regardless of the mail client.
Availability Requirements -
Contoso identifies the following high-availability requirements for the planned deployment:
Servers must be able to complete a restart without administrative intervention.
The network load balancer must be able to probe the health of each workload.
If a data center fails, the databases in the other data center must be activated automatically.
Redundant copies of all email messages must exist in the transport pipeline before and after delivery.
Email messages must be made highly available by the Exchange Server organization before and after delivery.
If you manually mount the databases following the data center failure, the databases in the failed site must be prevented from mounting automatically.

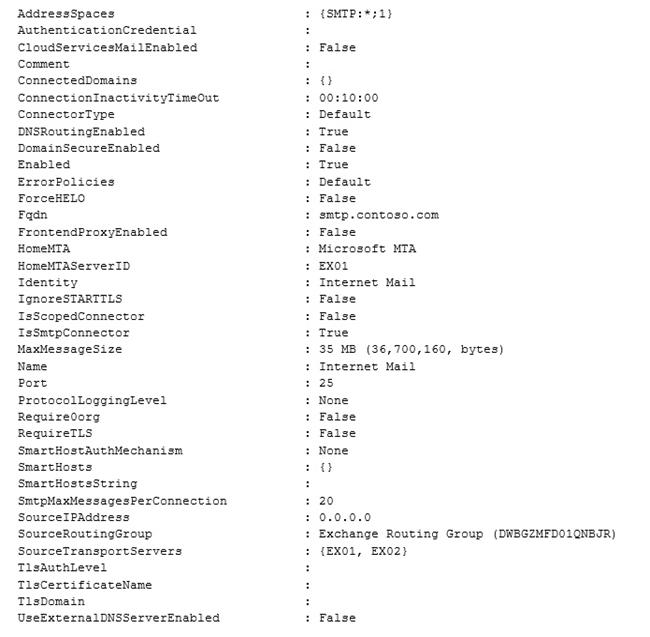

You run the Get-SendConnector cmdlet and you receive the following output.
You need to recommend which actions are required to secure email connectivity between the contoso.com SMTP domain and the fabrikam.com SMTP domain.
Which two actions should you recommend? Each correct answer presents part of the solution.
- A. Import a server certificate that has a subject name of ex01.contoso.com and a subject alternate name of ex02.contoso.com.
- B. Create an Outlook protection rule.
- C. Import a server certificate that has a subject name of smtp.contoso.com.
- D. Configure the TLSSendDomainSecureList parameter for the organization.
- E. Modify the ConnectorType parameter for the Send connector.
Answer : CD
References:
https://technet.microsoft.com/en-gb/library/bb123543(v=exchg.141).aspx
Question 2
Case study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there are may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study -
To display the first question in this cases study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. Note that the information displayed on the All Information tab is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview -
Litware, Inc. is a rapidly growing, multinational manufacturing company. The company has 25,000 employees worldwide.
Litware has offices in Houston and London. The manufacturing, sales, and human resources departments are in the Houston office. The research and development and the auditing departments are in the London office. The London office has 1,000 employees. The Houston office connects to the London office by using a high-speed WAN link. Both offices connect directly to the Internet.
The research and development department works on several high-security government contracts.
Existing Environment -
Active Directory -
The network contains an Active Directory Domain Services (AD DS) forest named litware.com that has Active Directory Certificate Services (AD CS) deployed.
The forest contains a site in Houston and a site in London. All domain controllers run Windows Server 2016.
Exchange Server -
Litware has an Exchange Server 2016 organization that uses the namespaces of mail.litware.com and autodiscover.litware.com.

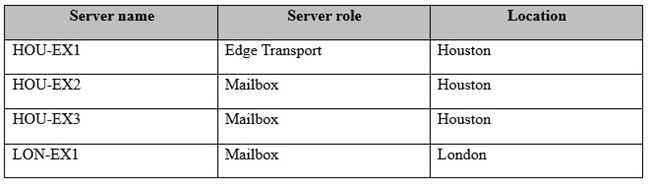

The organization contains the servers configured as shown in the following table.
All Internet email is routed through HOU-EX1.
Requirements -
Business Goals -
Litware has security concerns about the data and messaging content of the research and development department. Preventing information leaks is a priority.
All users must be able to access their corporate email from any device.
Litware plans to minimize the costs associated with changing the Exchange Server environment.
Planned Changes -
Litware plans to implement a site resilience solution ensuring that outbound email messages can be delivered if one of the sites fail. The site resilience solution must allow all users to access their mailbox if a server fails in each site.
Availability Requirements -
Litware identifies the following availability requirements:
Load balancing must support the following functionalities:
Load balancing must support the following functionalities:
- Provide SSL termination
- Remove failed Mailbox servers from the server pool.
- Data collected by Managed Availability from Outlook on the web must be used.
- Target server health must be configured as per-protocol so that only the affected client protocol is directed to another server if a server fails.
The site resilience solution must follow the bound namespace model.
Security Requirements -
Litware identifies the following security requirements:
Users in the research and development department must be able to encrypt documents sent to external users. The encrypted email messages must never be forwarded by the external recipients.
Only specific research and development department users must be able to access confidential internal email regarding the high-security government contracts.
All certificates deployed to the Exchange organization must be issued by a trusted third-party certification authority (CA).
The principle of least privilege must be applied to all users and permissions.
Compliance Requirements -
Litware identifies the following compliance requirements:
Any new mailbox created for the auditing department must have a retention policy named Audit immediately applied manually after the mailbox is created.
Each week, a team of regulation auditors must review the email messages sent and received by all the research and development department users.
The regulation auditors must be able to review the email messages of mailboxes placed on Litigation Hold.
The regulation auditors must be able to gain quick access to the email messages.
You plan to configure the Exchange organization for site failovers.
You need to recommend how many certificates must be deployed to meet the availability requirements and the security requirements.
What is the minimum number of certificates you should recommend deploying?
- A. one
- B. two
- C. three
- D. four A
Answer : Explanation
Question 3
Case study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there are may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study -
To display the first question in this cases study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. Note that the information displayed on the All Information tab is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview -
Litware, Inc. is a rapidly growing, multinational manufacturing company. The company has 25,000 employees worldwide.
Litware has offices in Houston and London. The manufacturing, sales, and human resources departments are in the Houston office. The research and development and the auditing departments are in the London office. The London office has 1,000 employees. The Houston office connects to the London office by using a high-speed WAN link. Both offices connect directly to the Internet.
The research and development department works on several high-security government contracts.
Existing Environment -
Active Directory -
The network contains an Active Directory Domain Services (AD DS) forest named litware.com that has Active Directory Certificate Services (AD CS) deployed.
The forest contains a site in Houston and a site in London. All domain controllers run Windows Server 2016.
Exchange Server -
Litware has an Exchange Server 2016 organization that uses the namespaces of mail.litware.com and autodiscover.litware.com.
The organization contains the servers configured as shown in the following table.
All Internet email is routed through HOU-EX1.
Requirements -
Business Goals -
Litware has security concerns about the data and messaging content of the research and development department. Preventing information leaks is a priority.
All users must be able to access their corporate email from any device.
Litware plans to minimize the costs associated with changing the Exchange Server environment.
Planned Changes -
Litware plans to implement a site resilience solution ensuring that outbound email messages can be delivered if one of the sites fail. The site resilience solution must allow all users to access their mailbox if a server fails in each site.
Availability Requirements -
Litware identifies the following availability requirements:
Load balancing must support the following functionalities:
Load balancing must support the following functionalities:
- Provide SSL termination
- Remove failed Mailbox servers from the server pool.
- Data collected by Managed Availability from Outlook on the web must be used.
- Target server health must be configured as per-protocol so that only the affected client protocol is directed to another server if a server fails.
The site resilience solution must follow the bound namespace model.
Security Requirements -
Litware identifies the following security requirements:
Users in the research and development department must be able to encrypt documents sent to external users. The encrypted email messages must never be forwarded by the external recipients.
Only specific research and development department users must be able to access confidential internal email regarding the high-security government contracts.
All certificates deployed to the Exchange organization must be issued by a trusted third-party certification authority (CA).
The principle of least privilege must be applied to all users and permissions.
Compliance Requirements -
Litware identifies the following compliance requirements:
Any new mailbox created for the auditing department must have a retention policy named Audit immediately applied manually after the mailbox is created.
Each week, a team of regulation auditors must review the email messages sent and received by all the research and development department users.
The regulation auditors must be able to review the email messages of mailboxes placed on Litigation Hold.
The regulation auditors must be able to gain quick access to the email messages.
HOTSPOT -

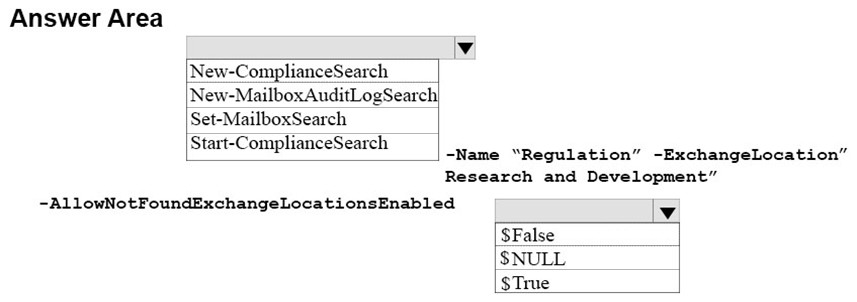

You need to build a command to meet the compliance requirements for the regulation auditors.
How should you complete the command? To answer, select the appropriate options in the answer area.
Each correct selection is worth one point.
NOTE:
Hot Area:

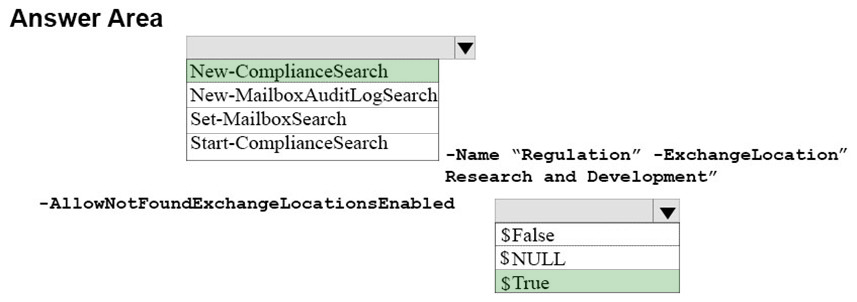

Answer :
Question 4
Case study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there are may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study -
To display the first question in this cases study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. Note that the information displayed on the All Information tab is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview -
Litware, Inc. is a rapidly growing, multinational manufacturing company. The company has 25,000 employees worldwide.
Litware has offices in Houston and London. The manufacturing, sales, and human resources departments are in the Houston office. The research and development and the auditing departments are in the London office. The London office has 1,000 employees. The Houston office connects to the London office by using a high-speed WAN link. Both offices connect directly to the Internet.
The research and development department works on several high-security government contracts.
Existing Environment -
Active Directory -
The network contains an Active Directory Domain Services (AD DS) forest named litware.com that has Active Directory Certificate Services (AD CS) deployed.
The forest contains a site in Houston and a site in London. All domain controllers run Windows Server 2016.
Exchange Server -
Litware has an Exchange Server 2016 organization that uses the namespaces of mail.litware.com and autodiscover.litware.com.
The organization contains the servers configured as shown in the following table.
All Internet email is routed through HOU-EX1.
Requirements -
Business Goals -
Litware has security concerns about the data and messaging content of the research and development department. Preventing information leaks is a priority.
All users must be able to access their corporate email from any device.
Litware plans to minimize the costs associated with changing the Exchange Server environment.
Planned Changes -
Litware plans to implement a site resilience solution ensuring that outbound email messages can be delivered if one of the sites fail. The site resilience solution must allow all users to access their mailbox if a server fails in each site.
Availability Requirements -
Litware identifies the following availability requirements:
Load balancing must support the following functionalities:
Load balancing must support the following functionalities:
- Provide SSL termination
- Remove failed Mailbox servers from the server pool.
- Data collected by Managed Availability from Outlook on the web must be used.
- Target server health must be configured as per-protocol so that only the affected client protocol is directed to another server if a server fails.
The site resilience solution must follow the bound namespace model.
Security Requirements -
Litware identifies the following security requirements:
Users in the research and development department must be able to encrypt documents sent to external users. The encrypted email messages must never be forwarded by the external recipients.
Only specific research and development department users must be able to access confidential internal email regarding the high-security government contracts.
All certificates deployed to the Exchange organization must be issued by a trusted third-party certification authority (CA).
The principle of least privilege must be applied to all users and permissions.
Compliance Requirements -
Litware identifies the following compliance requirements:
Any new mailbox created for the auditing department must have a retention policy named Audit immediately applied manually after the mailbox is created.
Each week, a team of regulation auditors must review the email messages sent and received by all the research and development department users.
The regulation auditors must be able to review the email messages of mailboxes placed on Litigation Hold.
The regulation auditors must be able to gain quick access to the email messages.
You need to recommend how many database availability groups (DAGs) and how many namespaces must be added to the site resilience solution to meet the availability requirements.
How many namespaces and DAGs should you recommend adding? To answer, select the appropriate options in the answer area.
Each correct selection is worth one point.
NOTE:
Hot Area:
Answer :
Explanation:
From scenario:
-> The site resilience solution must follow the bound namespace model.
-> The forest contains a site in Houston and a site in London.
-> Litware plans to implement a site resilience solution ensuring that outbound email messages can be delivered if one of the sites fails. The site resilience solution must allow all users to access their mailbox if a server fails in each site.
Box 1: Four -
Deploy a dedicated namespace for each datacenter in the site resilient pair (bound model).
In a bound model, multiple namespaces are preferred, two per datacenter (primary and failback namespaces), to prevent clients trying to connect to the datacenter where they may have no connectivity
Box 2: Two -
As its name implies, in a bound model, users are associated (or bound) to a specific datacenter. In other words, there is preference to have the users operate out of one datacenter during normal operations and only have the users operate out of the second datacenter during failure events. There is also a possibility that users do not have equal connectivity to both datacenters. Typically, in a bound model, there are two DAGs deployed in the datacenter pair. Each DAG contains a set of mailbox databases for a particular datacenter; by controlling where the databases are mounted, you control connectivity.
Incorrect Answers:
Deploy a unified namespace for the site resilient datacenter pair (unbound model).
In an unbound model, you have a single DAG deployed across the datacenter pair.
Question 5
Case study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there are may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study -
To display the first question in this cases study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. Note that the information displayed on the All Information tab is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview -
Litware, Inc. is a rapidly growing, multinational manufacturing company. The company has 25,000 employees worldwide.
Litware has offices in Houston and London. The manufacturing, sales, and human resources departments are in the Houston office. The research and development and the auditing departments are in the London office. The London office has 1,000 employees. The Houston office connects to the London office by using a high-speed WAN link. Both offices connect directly to the Internet.
The research and development department works on several high-security government contracts.
Existing Environment -
Active Directory -
The network contains an Active Directory Domain Services (AD DS) forest named litware.com that has Active Directory Certificate Services (AD CS) deployed.
The forest contains a site in Houston and a site in London. All domain controllers run Windows Server 2016.
Exchange Server -
Litware has an Exchange Server 2016 organization that uses the namespaces of mail.litware.com and autodiscover.litware.com.
The organization contains the servers configured as shown in the following table.
All Internet email is routed through HOU-EX1.
Requirements -
Business Goals -
Litware has security concerns about the data and messaging content of the research and development department. Preventing information leaks is a priority.
All users must be able to access their corporate email from any device.
Litware plans to minimize the costs associated with changing the Exchange Server environment.
Planned Changes -
Litware plans to implement a site resilience solution ensuring that outbound email messages can be delivered if one of the sites fail. The site resilience solution must allow all users to access their mailbox if a server fails in each site.
Availability Requirements -
Litware identifies the following availability requirements:
Load balancing must support the following functionalities:
Load balancing must support the following functionalities:
- Provide SSL termination
- Remove failed Mailbox servers from the server pool.
- Data collected by Managed Availability from Outlook on the web must be used.
- Target server health must be configured as per-protocol so that only the affected client protocol is directed to another server if a server fails.
The site resilience solution must follow the bound namespace model.
Security Requirements -
Litware identifies the following security requirements:
Users in the research and development department must be able to encrypt documents sent to external users. The encrypted email messages must never be forwarded by the external recipients.
Only specific research and development department users must be able to access confidential internal email regarding the high-security government contracts.
All certificates deployed to the Exchange organization must be issued by a trusted third-party certification authority (CA).
The principle of least privilege must be applied to all users and permissions.
Compliance Requirements -
Litware identifies the following compliance requirements:
Any new mailbox created for the auditing department must have a retention policy named Audit immediately applied manually after the mailbox is created.
Each week, a team of regulation auditors must review the email messages sent and received by all the research and development department users.
The regulation auditors must be able to review the email messages of mailboxes placed on Litigation Hold.
The regulation auditors must be able to gain quick access to the email messages.
You need to recommend a load balancing solution that meets the availability requirements.
Which load balancing solution should you recommend?
- A. a Layer-7 load balancer with a single namespace and without session affinity
- B. a Network Load Balancing (NLB) cluster
- C. DNS round robin
- D. a Layer-4 load balancer with multiple namespaces and without session affinity
Answer : A
Layer 7 load balancing benefits include:
-> Needs only a single IP address.
-> Inspects content and can direct traffic.
-> Provides notification of failed service that can be taken offline.
-> Handles load balancer SSL termination.
Distributes traffic at the application layer and understands the destination URL.
From scenario:
-> Load balancing must support the following functionalities:
-> Provide SSL termination
-> Remove failed Mailbox servers from the server pool.
Data collected by Managed Availability from Outlook on the web must be used.
-> Target server health must be configured as per-protocol so that only the affected client protocol is directed to another server if a server fails.
References:
https://docs.microsoft.com/en-us/exchange/architecture/client-access/load-balancing
Question 6
Case study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there are may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study -
To display the first question in this cases study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. Note that the information displayed on the All Information tab is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview -
Litware, Inc. is a rapidly growing, multinational manufacturing company. The company has 25,000 employees worldwide.
Litware has offices in Houston and London. The manufacturing, sales, and human resources departments are in the Houston office. The research and development and the auditing departments are in the London office. The London office has 1,000 employees. The Houston office connects to the London office by using a high-speed WAN link. Both offices connect directly to the Internet.
The research and development department works on several high-security government contracts.
Existing Environment -
Active Directory -
The network contains an Active Directory Domain Services (AD DS) forest named litware.com that has Active Directory Certificate Services (AD CS) deployed.
The forest contains a site in Houston and a site in London. All domain controllers run Windows Server 2016.
Exchange Server -
Litware has an Exchange Server 2016 organization that uses the namespaces of mail.litware.com and autodiscover.litware.com.
The organization contains the servers configured as shown in the following table.
All Internet email is routed through HOU-EX1.
Requirements -
Business Goals -
Litware has security concerns about the data and messaging content of the research and development department. Preventing information leaks is a priority.
All users must be able to access their corporate email from any device.
Litware plans to minimize the costs associated with changing the Exchange Server environment.
Planned Changes -
Litware plans to implement a site resilience solution ensuring that outbound email messages can be delivered if one of the sites fail. The site resilience solution must allow all users to access their mailbox if a server fails in each site.
Availability Requirements -
Litware identifies the following availability requirements:
Load balancing must support the following functionalities:
Load balancing must support the following functionalities:
- Provide SSL termination
- Remove failed Mailbox servers from the server pool.
- Data collected by Managed Availability from Outlook on the web must be used.
- Target server health must be configured as per-protocol so that only the affected client protocol is directed to another server if a server fails.
The site resilience solution must follow the bound namespace model.
Security Requirements -
Litware identifies the following security requirements:
Users in the research and development department must be able to encrypt documents sent to external users. The encrypted email messages must never be forwarded by the external recipients.
Only specific research and development department users must be able to access confidential internal email regarding the high-security government contracts.
All certificates deployed to the Exchange organization must be issued by a trusted third-party certification authority (CA).
The principle of least privilege must be applied to all users and permissions.
Compliance Requirements -
Litware identifies the following compliance requirements:
Any new mailbox created for the auditing department must have a retention policy named Audit immediately applied manually after the mailbox is created.
Each week, a team of regulation auditors must review the email messages sent and received by all the research and development department users.
The regulation auditors must be able to review the email messages of mailboxes placed on Litigation Hold.
The regulation auditors must be able to gain quick access to the email messages.
All the research and development department users are members of a distribution group named rdev. Rdev receives an average of 2,000 email messages daily.
You need to ensure that email sent to the rdev distribution group meets the security requirements for confidential email. The solution must minimize administrative effort.
What should you do?
- A. Create linked mailboxes for users without security clearance.
- B. Create a transport rule that filters based on keyword predicates.
- C. Create mail contacts for users without security clearance.
- D. Edit the distribution group properties and enable moderation of the group.
Answer : B
Actions in mail flow rules (also known as transport rules) specify what you want to do to messages that match conditions of the rule.
References:
https://technet.microsoft.com/en-us/library/aa998315(v=exchg.160).aspx
Question 7
Case study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there are may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study -
To display the first question in this cases study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. Note that the information displayed on the All Information tab is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview -
Litware, Inc. is a rapidly growing, multinational manufacturing company. The company has 25,000 employees worldwide.
Litware has offices in Houston and London. The manufacturing, sales, and human resources departments are in the Houston office. The research and development and the auditing departments are in the London office. The London office has 1,000 employees. The Houston office connects to the London office by using a high-speed WAN link. Both offices connect directly to the Internet.
The research and development department works on several high-security government contracts.
Existing Environment -
Active Directory -
The network contains an Active Directory Domain Services (AD DS) forest named litware.com that has Active Directory Certificate Services (AD CS) deployed.
The forest contains a site in Houston and a site in London. All domain controllers run Windows Server 2016.
Exchange Server -
Litware has an Exchange Server 2016 organization that uses the namespaces of mail.litware.com and autodiscover.litware.com.
The organization contains the servers configured as shown in the following table.
All Internet email is routed through HOU-EX1.
Requirements -
Business Goals -
Litware has security concerns about the data and messaging content of the research and development department. Preventing information leaks is a priority.
All users must be able to access their corporate email from any device.
Litware plans to minimize the costs associated with changing the Exchange Server environment.
Planned Changes -
Litware plans to implement a site resilience solution ensuring that outbound email messages can be delivered if one of the sites fail. The site resilience solution must allow all users to access their mailbox if a server fails in each site.
Availability Requirements -
Litware identifies the following availability requirements:
Load balancing must support the following functionalities:
Load balancing must support the following functionalities:
- Provide SSL termination
- Remove failed Mailbox servers from the server pool.
- Data collected by Managed Availability from Outlook on the web must be used.
- Target server health must be configured as per-protocol so that only the affected client protocol is directed to another server if a server fails.
The site resilience solution must follow the bound namespace model.
Security Requirements -
Litware identifies the following security requirements:
Users in the research and development department must be able to encrypt documents sent to external users. The encrypted email messages must never be forwarded by the external recipients.
Only specific research and development department users must be able to access confidential internal email regarding the high-security government contracts.
All certificates deployed to the Exchange organization must be issued by a trusted third-party certification authority (CA).
The principle of least privilege must be applied to all users and permissions.
Compliance Requirements -
Litware identifies the following compliance requirements:
Any new mailbox created for the auditing department must have a retention policy named Audit immediately applied manually after the mailbox is created.
Each week, a team of regulation auditors must review the email messages sent and received by all the research and development department users.
The regulation auditors must be able to review the email messages of mailboxes placed on Litigation Hold.
The regulation auditors must be able to gain quick access to the email messages.
HOTSPOT -
You need to assign user roles to two administrative users to meet the following requirements:
-> A user named AdminUser1 must be able to reset user account passwords.
-> A user named AdminUser2 must be able to create retention policies and message classifications.
The solution must meet the security requirements.
To which role should you assign each user? To answer, select the appropriate options in the answer area.
Each correct selection is worth one point.
NOTE:
Hot Area:
Answer :
Question 8
Case study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there are may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study -
To display the first question in this cases study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. Note that the information displayed on the All Information tab is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview -
Litware, Inc. is a rapidly growing, multinational manufacturing company. The company has 25,000 employees worldwide.
Litware has offices in Houston and London. The manufacturing, sales, and human resources departments are in the Houston office. The research and development and the auditing departments are in the London office. The London office has 1,000 employees. The Houston office connects to the London office by using a high-speed WAN link. Both offices connect directly to the Internet.
The research and development department works on several high-security government contracts.
Existing Environment -
Active Directory -
The network contains an Active Directory Domain Services (AD DS) forest named litware.com that has Active Directory Certificate Services (AD CS) deployed.
The forest contains a site in Houston and a site in London. All domain controllers run Windows Server 2016.
Exchange Server -
Litware has an Exchange Server 2016 organization that uses the namespaces of mail.litware.com and autodiscover.litware.com.
The organization contains the servers configured as shown in the following table.
All Internet email is routed through HOU-EX1.
Requirements -
Business Goals -
Litware has security concerns about the data and messaging content of the research and development department. Preventing information leaks is a priority.
All users must be able to access their corporate email from any device.
Litware plans to minimize the costs associated with changing the Exchange Server environment.
Planned Changes -
Litware plans to implement a site resilience solution ensuring that outbound email messages can be delivered if one of the sites fail. The site resilience solution must allow all users to access their mailbox if a server fails in each site.
Availability Requirements -
Litware identifies the following availability requirements:
Load balancing must support the following functionalities:
Load balancing must support the following functionalities:
- Provide SSL termination
- Remove failed Mailbox servers from the server pool.
- Data collected by Managed Availability from Outlook on the web must be used.
- Target server health must be configured as per-protocol so that only the affected client protocol is directed to another server if a server fails.
The site resilience solution must follow the bound namespace model.
Security Requirements -
Litware identifies the following security requirements:
Users in the research and development department must be able to encrypt documents sent to external users. The encrypted email messages must never be forwarded by the external recipients.
Only specific research and development department users must be able to access confidential internal email regarding the high-security government contracts.
All certificates deployed to the Exchange organization must be issued by a trusted third-party certification authority (CA).
The principle of least privilege must be applied to all users and permissions.
Compliance Requirements -
Litware identifies the following compliance requirements:
Any new mailbox created for the auditing department must have a retention policy named Audit immediately applied manually after the mailbox is created.
Each week, a team of regulation auditors must review the email messages sent and received by all the research and development department users.
The regulation auditors must be able to review the email messages of mailboxes placed on Litigation Hold.
The regulation auditors must be able to gain quick access to the email messages.
You plan to create a new mailbox for the auditing department.
You need to recommend which task must be performed immediately after the mailbox is created. The solution must meet the compliance requirements.
What should you recommend?
- A. Enable an archive for the new mailbox.
- B. Place the new mailbox on Litigation Hold.
- C. Run the Set-Mailbox cmdlet.
- D. Run the Start-ManagedFolderAssistant cmdlet.
Answer : C
Explanation:
"Any new mailbox created for the auditing department must have a retention policy named Audit immediately applied manually after the mailbox is created."
We need to run the Set-Mailbox cmdlet to apply the retention policy.
Question 9
Case study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there are may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study -
To display the first question in this cases study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. Note that the information displayed on the All Information tab is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview -
Litware, Inc. is a rapidly growing, multinational manufacturing company. The company has 25,000 employees worldwide.
Litware has offices in Houston and London. The manufacturing, sales, and human resources departments are in the Houston office. The research and development and the auditing departments are in the London office. The London office has 1,000 employees. The Houston office connects to the London office by using a high-speed WAN link. Both offices connect directly to the Internet.
The research and development department works on several high-security government contracts.
Existing Environment -
Active Directory -
The network contains an Active Directory Domain Services (AD DS) forest named litware.com that has Active Directory Certificate Services (AD CS) deployed.
The forest contains a site in Houston and a site in London. All domain controllers run Windows Server 2016.
Exchange Server -
Litware has an Exchange Server 2016 organization that uses the namespaces of mail.litware.com and autodiscover.litware.com.
The organization contains the servers configured as shown in the following table.
All Internet email is routed through HOU-EX1.
Requirements -
Business Goals -
Litware has security concerns about the data and messaging content of the research and development department. Preventing information leaks is a priority.
All users must be able to access their corporate email from any device.
Litware plans to minimize the costs associated with changing the Exchange Server environment.
Planned Changes -
Litware plans to implement a site resilience solution ensuring that outbound email messages can be delivered if one of the sites fail. The site resilience solution must allow all users to access their mailbox if a server fails in each site.
Availability Requirements -
Litware identifies the following availability requirements:
Load balancing must support the following functionalities:
Load balancing must support the following functionalities:
- Provide SSL termination
- Remove failed Mailbox servers from the server pool.
- Data collected by Managed Availability from Outlook on the web must be used.
- Target server health must be configured as per-protocol so that only the affected client protocol is directed to another server if a server fails.
The site resilience solution must follow the bound namespace model.
Security Requirements -
Litware identifies the following security requirements:
Users in the research and development department must be able to encrypt documents sent to external users. The encrypted email messages must never be forwarded by the external recipients.
Only specific research and development department users must be able to access confidential internal email regarding the high-security government contracts.
All certificates deployed to the Exchange organization must be issued by a trusted third-party certification authority (CA).
The principle of least privilege must be applied to all users and permissions.
Compliance Requirements -
Litware identifies the following compliance requirements:
Any new mailbox created for the auditing department must have a retention policy named Audit immediately applied manually after the mailbox is created.
Each week, a team of regulation auditors must review the email messages sent and received by all the research and development department users.
The regulation auditors must be able to review the email messages of mailboxes placed on Litigation Hold.
The regulation auditors must be able to gain quick access to the email messages.
You implement the load balancing solution.
You need to configure the health probes to meet the availability requirements.
Which URL should you configure for the probe?
- A. https://mail.litware.com/owa/probe.htm
- B. https://mail.litware.com/owa/healthcheck.htm
- C. http://litware.com/owa/healthcheck.htm
- D. http://litware/owa/probe.htm
Answer : B
Question 10
Case study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there are may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study -
To display the first question in this cases study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. Note that the information displayed on the All Information tab is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview -
Litware, Inc. is a rapidly growing, multinational manufacturing company. The company has 25,000 employees worldwide.
Litware has offices in Houston and London. The manufacturing, sales, and human resources departments are in the Houston office. The research and development and the auditing departments are in the London office. The London office has 1,000 employees. The Houston office connects to the London office by using a high-speed WAN link. Both offices connect directly to the Internet.
The research and development department works on several high-security government contracts.
Existing Environment -
Active Directory -
The network contains an Active Directory Domain Services (AD DS) forest named litware.com that has Active Directory Certificate Services (AD CS) deployed.
The forest contains a site in Houston and a site in London. All domain controllers run Windows Server 2016.
Exchange Server -
Litware has an Exchange Server 2016 organization that uses the namespaces of mail.litware.com and autodiscover.litware.com.
The organization contains the servers configured as shown in the following table.
All Internet email is routed through HOU-EX1.
Requirements -
Business Goals -
Litware has security concerns about the data and messaging content of the research and development department. Preventing information leaks is a priority.
All users must be able to access their corporate email from any device.
Litware plans to minimize the costs associated with changing the Exchange Server environment.
Planned Changes -
Litware plans to implement a site resilience solution ensuring that outbound email messages can be delivered if one of the sites fail. The site resilience solution must allow all users to access their mailbox if a server fails in each site.
Availability Requirements -
Litware identifies the following availability requirements:
Load balancing must support the following functionalities:
Load balancing must support the following functionalities:
- Provide SSL termination
- Remove failed Mailbox servers from the server pool.
- Data collected by Managed Availability from Outlook on the web must be used.
- Target server health must be configured as per-protocol so that only the affected client protocol is directed to another server if a server fails.
The site resilience solution must follow the bound namespace model.
Security Requirements -
Litware identifies the following security requirements:
Users in the research and development department must be able to encrypt documents sent to external users. The encrypted email messages must never be forwarded by the external recipients.
Only specific research and development department users must be able to access confidential internal email regarding the high-security government contracts.
All certificates deployed to the Exchange organization must be issued by a trusted third-party certification authority (CA).
The principle of least privilege must be applied to all users and permissions.
Compliance Requirements -
Litware identifies the following compliance requirements:
Any new mailbox created for the auditing department must have a retention policy named Audit immediately applied manually after the mailbox is created.
Each week, a team of regulation auditors must review the email messages sent and received by all the research and development department users.
The regulation auditors must be able to review the email messages of mailboxes placed on Litigation Hold.
The regulation auditors must be able to gain quick access to the email messages.
You need to recommend a solution that meets the security requirements for outbound email delivery.
What should you recommend?
- A. Microsoft Azure Information Protection
- B. data loss prevention (DLP) policies
- C. Outlook protection rules
- D. Active Directory Rights Management Services (AD RMS)
Answer : D
Question 11
You have three Hyper-V hosts that each have 20 processor cores and 64 GB of RAM. Nine virtual machines are deployed to the hosts as shown in the following table.
Host1 is located in New York, Host2 is located in Los Angeles, and Host3 is located in Denver. None of the virtual machines use dynamic memory.
You plan to deploy a two-node Exchange Server 2016 database availability group (DAG) by using the virtual machines. Each node will have 12 processor cores and 24 GB of memory.
You are evaluating whether you can use the existing servers for the deployment or whether you must purchase additional servers.
You need to recommend where to place the Exchange servers. The solution must minimize costs.
What is the best recommendation to achieve the goal? More than one answer choice may achieve the goal. Select the BEST answer.
- A. One Exchange server on Host1 and one Exchange server on a new Hyper-V host.
- B. One Exchange server on Host1 and one Exchange server on Host3.
- C. Both Exchange servers on Host1.
- D. One Exchange server on Host1 and one Exchange server on Host2.
- E. One Exchange server on Host2 and one Exchange server on Host3.
Answer : A
Explanation:
First, look at the CPU requirements for Exchange 2016.
"Exchange supports a virtual processor-to-logical processor ratio no greater than 2:1, although we recommend a ratio of 1:1. For example, a dual processor system using quad core processors contains a total of 8 logical processors in the host system. On a system with this configuration, don"™t allocate more than a total of 16 virtual processors to all guest virtual machines combined."
Furthermore, the host operating system also needs 2 processors. source: https://technet.microsoft.com/en-us/library/jj619301(v=exchg.160).aspx
Host 1 uses 12 out of 20 cores -
Host 2 uses 20 out of 20 cores -
Host 3 uses 32 out of 20 cores -
You need 12 cores, so Host 3 lacks the resources.
This leaves hosts 1 and 2.
Now, let"™s look to the memory requirements:
""¦using dynamic memory or memory overcommit features for Exchange isn"™t supported." source: https://technet.microsoft.com/en-us/library/jj619301(v=exchg.160).aspx
Host 1 uses 20 out of 64 GB -
Host 2 uses 48 out of 64 GB -
Host 3 uses 44 out of 64 GB -
You need 24 GB for each VM.
Only host 1 has the resources for it.
It is not recommended to put both VM"™s on one host.
So, the answer should be: A.
Question 12
You have an Exchange Server 2016 organization. The organization contains five Mailbox servers. The servers are members of a database availability group
(DAG). All of the databases in the DAG are replicated to all of the members.
You plan to perform scheduled maintenance on a Mailbox server named MBX3 that will place the server offline for up to an hour.
You need to ensure that any active databases on MBX3 are activated on other DAG members before performing the maintenance.
Which cmdlet should you use?
- A. Set-MailboxDatabaseCopy
- B. Stop-DatabaseAvailabilityGroup
- C. Resume-MailboxDatabaseCopy
- D. Set-MailboxServer
Answer : D
Explanation:
Use the DatabaseCopyActivationDisabledAndMoveNow parameter.
References:
https://technet.microsoft.com/en-us/library/aa998651(v=exchg.160).aspx?f=255&MSPPError=-2147217396
Question 13
You have an Exchange Server 2016 organization. The organization contains a database availability group (DAG).
You need to identify the number of transaction logs that are in replay queue.
Which cmdlet should you use?
- A. Test-ServiceHealth
- B. Test-ReplicationHealth
- C. Get-DatabaseAvailabilityGroup
- D. Get-MailboxDatabaseCopyStatus D
Answer : Explanation
References:
https://technet.microsoft.com/en-us/library/bb691314(v=exchg.160).aspx?f=255&MSPPError=-2147217396
Question 14
Your company has a data center. The data center contains a server that has Exchange Server 2016 and the Mailbox server role installed. Outlook Anywhere clients connect to the Mailbox server by using the name outlook.contoso.com.
The company plans to open a second data center and to provision a database availability group (DAG) that spans both data centers.
You need to ensure that Outlook Anywhere clients can connect if one of the data centers becomes unavailable.
What should you add to DNS?
- A. one A record
- B. two TXT records
- C. two SRV records
- D. one MX record
Answer : A
References:
https://technet.microsoft.com/en-gb/library/dd638104(v=exchg.150).aspx?f=255&MSPPError=-2147217396
Question 15
HOTSPOT -
You deploy a server named ex01.contoso.com that has Exchange Server 2016 installed.
You need to ensure that when users connect to the URL of http://ex01.contoso.com, they access Outlook on the web over a secure connection.
How should you configure the Default Web Site? To answer, select appropriate options in the selected area.
Hot Area:
Answer :
