Advanced IP NGN Architecture Field Engineer (PANGNFE) v7.1
Question 1
Which of the following features is available in MPLS-TP?
- A. penultimate hop popping
- B. LSP merge
- C. OAM
- D. equal cost multipath
Answer : C
Question 2
What is the benefit of the 7600 Series over the ASR1000 Series Routers?
- A. various service modules
- B. modular switch fabric
- C. faster cryptography
- D. smaller size
Answer : B
Question 3
Which three statements are true about the OSPFv3 routing protocol? (Choose three.)
- A. router ID is based on IPv4 address
- B. OSPFv3 routing protocol is Layer 3 agnostic
- C. OSPFv3 routing protocol adds new Link LSAs (Type 8)
- D. OSPFv3 routing protocol adds new intra-area prefix LSAs (Type 8)
- E. OSPFv3 routing protocol uses IPv6 link-local multicast address FF02::5 for OSPF routers
Answer : ACE
Question 4

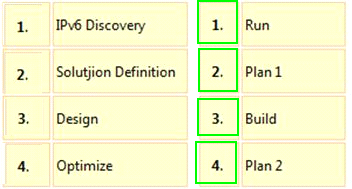

Match each 7-tier detailed service on the left to its correct 3-tier high-level service on the right.
Answer :
Question 5

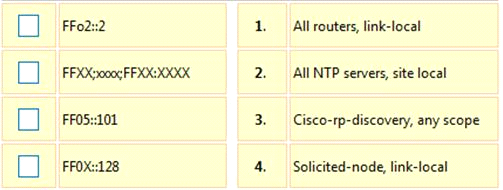

Match each reserved multicast addresses on the left to its correct meaning and scope on the right.
Answer :
Question 6

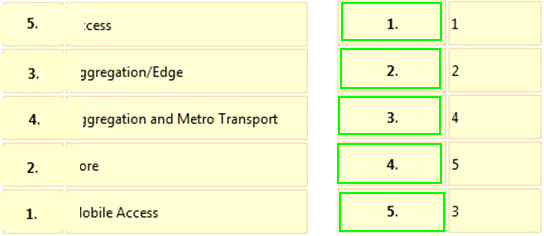

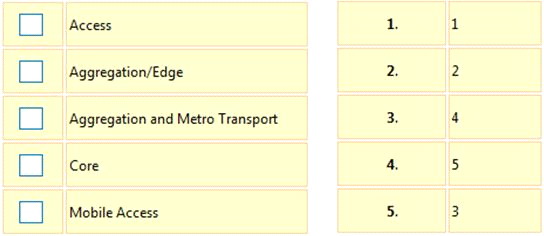

Match the network architectural layer on the left to the correct position on the right, ordering them from outer (customer side) to inner.
Answer :
Question 7
Which two answers are correct regarding the configuration in Cisco IOS XR? (Choose two.)
- A. You apply the configuration by issuing the activate command.
- B. You do not have to do anything. The configuration is active as soon as you enter configuration commands.
- C. You apply the configuration by issuing the commit command.
- D. You save the configuration by issuing the save command.
- E. You do not have to do anything. The configuration is saved automatically after it is applied.
- F. You save the configuration by issuing the copy running-configuration startup- configuration command.
Answer : C,E
Question 8
Whatis the impact of RSP reload on the switch fabric on the ASR 9000 Series?
- A. None. The switch fabric resides on dedicated fabric cards and the reload of a separate RSP card has no impact.
- B. Interruption of service. The switch fabric resides on the same card as RSP and the reload of the card will cause packet loss.
- C. Performance degradation. The switch fabric resides on the same card as RSP and the reload will stop it. However, having a redundant RSP installed means traffic that all traffic will be redirected to another RSP and this will halve the throughput rate, but not cause any disruption.
- D. None. The switch fabric resides on the same physical card as RSP, but the circuits are independent.
Answer : B
Question 9
Which two platforms support IOS XE? (Choose two.)
- A. all ASR platforms
- B. ASR1000 Series
- C. ASR 9000 Series
- D. ASR 900 Series
- E. Nexus Series
Answer : BD
Question 10
Which of the following is a nonlinear impairment?
- A. phase modulation distortion
- B. chromatic dispersion
- C. four-wave mixing
- D. signal-to-noise ratio
Answer : C
Question 11
What does SBC stand for?
- A. Session Border Controller
- B. Smart Bitrate Control
- C. Sub-band Coding
- D. Single Board Computer
Answer : A
Question 12
What is the benefit of Metro Ethernet switches for service providers, compared to Catalyst switches?
- A. PoE
- B. port security
- C. MPLS support
- D. 802.1Q
Answer : C
Question 13
What is the benefit of SFP+ over XFP, X2, and XENPAK modules?
- A. larger size
- B. higher throughput
- C. lower power consumption
- D. various options for cable connectors
Answer : C
Question 14

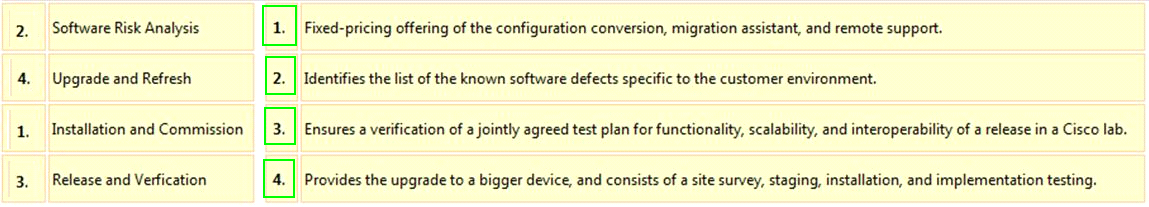

Match each fixed service on the left to the correct explanation on the right.
Answer :
Question 15
What are the two main advantages of IP NGN networks for service providers? (Choose two.)
- A. simplified management of one converged network, as opposed to multiple management systems for multiple networks
- B. diversification of network infrastructure, where every service is provided over independent and separately managed networks
- C. reduced expenditures
- D. reduced flexibility
Answer : AC
