Automating Cisco Enterprise Solutions (ENAUTO) v1.0

Page:    1 / 7
Exam contains 110 questions

DRAG DROP -

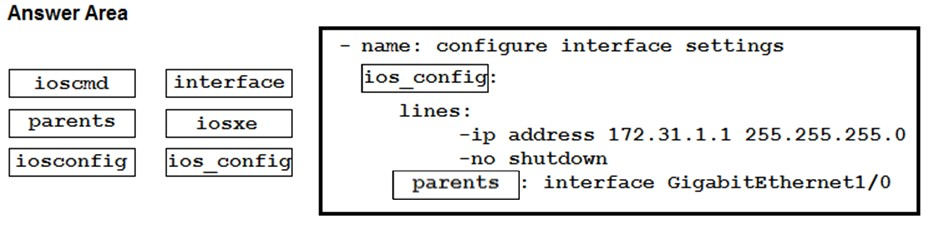

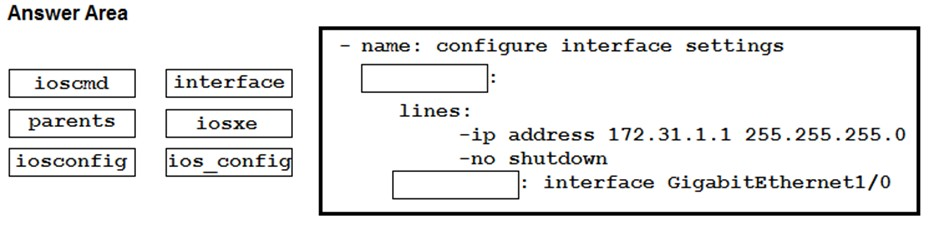

Drag and drop the commands to the Ansible playbook that applies configuration to an interface on a Cisco IOS XE device. Not all options are used.
Select and Place:




Answer :

Reference:
http://imxing.cn/?p=464

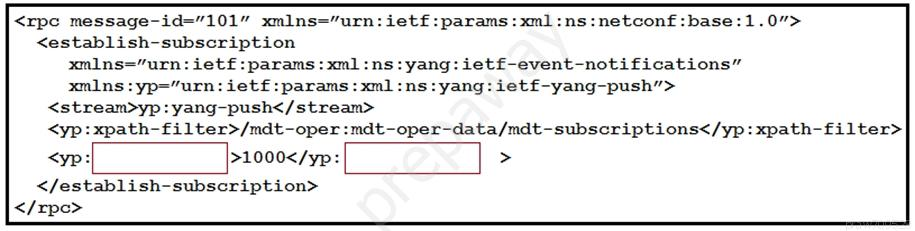

Refer to the exhibit. Which XML tag completes this NETCONF telemetry subscription with a Cisco IOS XE device?

  • A. crontab
  • B. cadence
  • C. frequency
  • D. period


Answer : D

Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/prog/configuration/1610/b_1610_programmability_cg/model_driven_telemetry.html

Which two statements are benefits of YANG-push telemetry data over traditional data collection methods? (Choose two.)

  • A. The subscription requests use less bandwidth than SNMP polls.
  • B. It uses UDP rather than TCP.
  • C. You can precisely define data subscriptions.
  • D. It scales better than SNMP.
  • E. It is supported on more devices than SNMP.


Answer : BC

Reference:
https://tools.ietf.org/id/draft-song-ntf-01.html

FILL BLANK -
Fill in the blank to complete the statement.




Answer : Zero touch provisioning (ZTP)

Reference:
https://developer.cisco.com/docs/ios-xe/#!day-zero-provisioning-quick-start-guide

Which tag is required when establishing a YANG-push subscription with a Cisco IOS XE device?

  • A. <yp:period>
  • B. <yp:subscription-result>
  • C. <yp:subscription-id>
  • D. <yp:xpath-filter>


Answer : D

Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/prog/configuration/1612/b_1612_programmability_cg/model_driven_telemetry.html

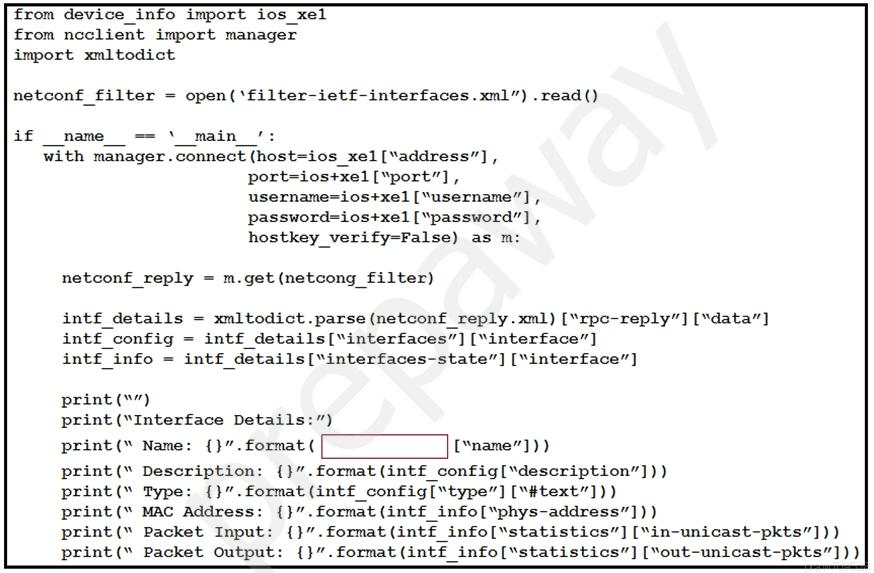

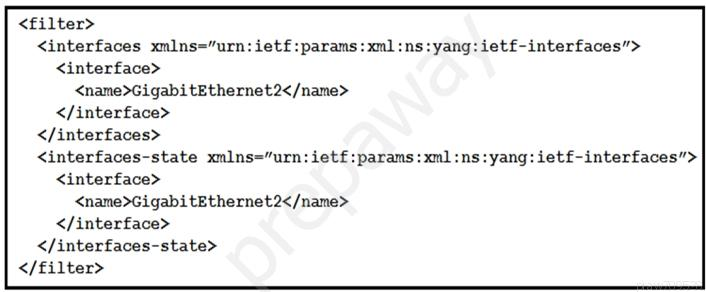

Refer to the exhibits. An engineer creates a Python scripts using ncclient to display interface information. The code must be completed so that it can be tested.
Which expression completes the highlighted section in the format call?

  • A. intf_info
  • B. intf_config
  • C. intf_get
  • D. intf_config[0]


Answer : A

Explanation:
The highlighted format cell for print is for the host.
Reference:
https://github.com/CiscoDevNet/dnac-python-path-trace/blob/master/path_trace.py

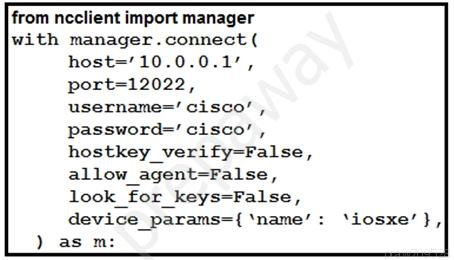

Refer to the exhibit. What is the correct ncclient method to use to collect the running configuration of a Cisco IOS XE device that uses NETCONF?

  • A. config=m.copy_config(source=ג€™runningג€™)
  • B. config=m.get(source=ג€™runningג€™)
  • C. config=m.collect_config(source=ג€™runningג€™)
  • D. config=m.get_config(source=ג€™runningג€™)


Answer : A

Reference:
https://ncclient.readthedocs.io/en/latest/

FILL BLANK -
Fill in the blanks to complete this API request against the Cisco SD_WAN vManage Statistics API, which specified a deviceId of 260faff9-2d31-4312-cf96-
143b46db0211, a local-color of biz-internet, and a remote-color of gold.




Answer : deviceID=, local-color, remote-color

Reference:
https://sdwan-docs.cisco.com/Product_Documentation/Command_Reference/Command_Reference/vManage_REST_APIs/Real-Time_Monitoring_APIs/
Application-Aware_Routing#Statistics

What does the command boot ipxe forever switch 1 perform when executed on a Cisco IOS XE device?

  • A. It continuously sends DHCP requests for iPXE until the device boots with an image.
  • B. It continuously sends DNS requests for iPXE until the device restarts.
  • C. It continuously sends DNS requests for iPXE until the device boots with an image.
  • D. It continuously sends DHCP requests for iPXE until the device restarts.


Answer : A

Reference:
https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3850/software/release/16-5/configuration_guide/prog/b_165_prog_3850_cg/ipxe.html

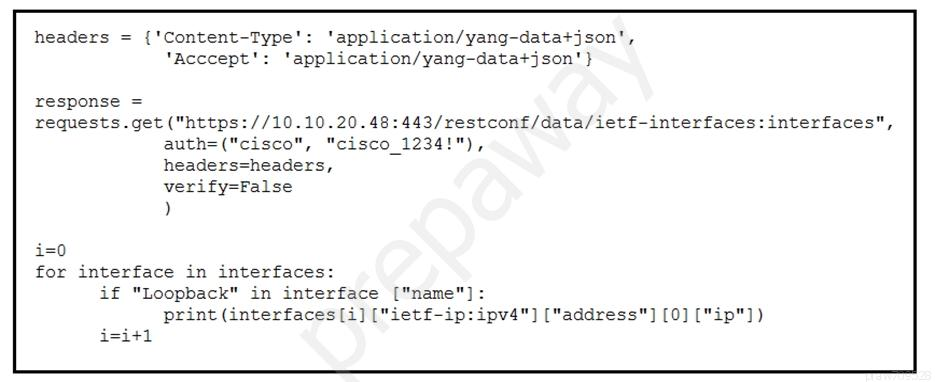

Refer to the exhibit. A Python script is used to configure a Cisco IOS XE device. The script must be updated to print the IP addresses of all the loopback interfaces. Which statement should be added before the loop?

  • A. interfaces = response.json()[ג€ietf-interfaces:interfacesג€]
  • B. interface = response.json()[ג€ietf-interfaces:interfacesג€]
  • C. interface = response.json()[ג€ietf-interfaces:interfacesג€][ג€interfaceג€]
  • D. interfaces = response.json()[ג€ietf-interfaces:interfacesג€][ג€interfaceג€]


Answer : D

Reference:
https://blog.wimwauters.com/networkprogrammability/2020-04-04_restconf_python/

Which environment must be enabled to complete the Zero-Touch Provisioning process on a Cisco IOS XE device?

  • A. TCL
  • B. ZTP Open Service Container
  • C. EEM
  • D. Guest Shell


Answer : D

Reference:
https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3850/software/release/16-5/configuration_guide/prog/b_165_prog_3850_cg/ zero_touch_provisioning.pdf

FILL BLANK -
Fill in the blank to complete the statement.
___________________ is a solution for automating the configuration of a device when it is first powered on, using DHCP and TFTP.



Answer : Zero-touch provisioning

Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/prog/configuration/169/b_169_programmability_cg/zero_touch_provisioning.html

DRAG DROP -

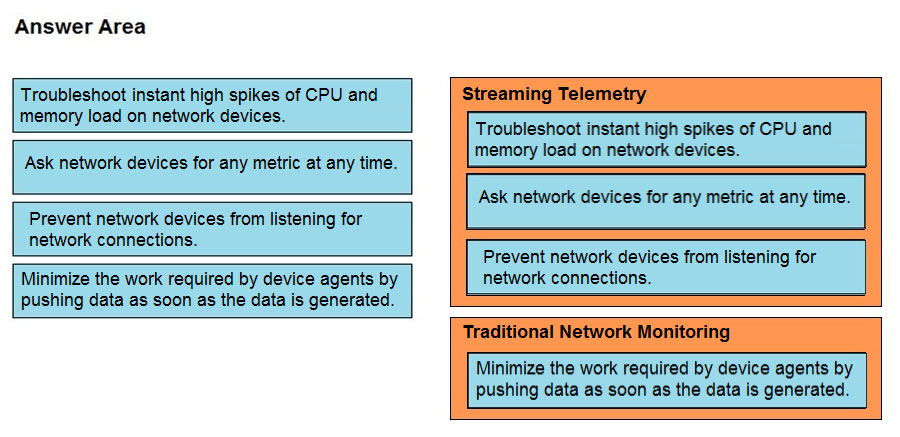

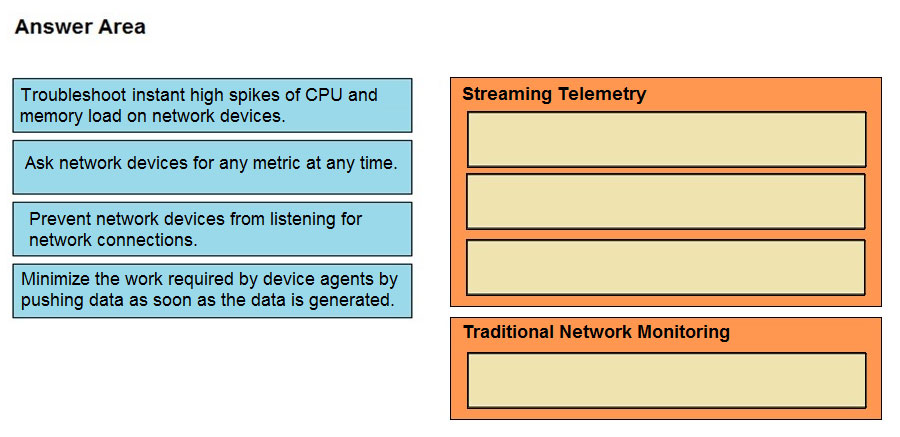

Drag and drop the characteristic from the left onto the monitoring type described on the right.
Select and Place:




Answer :

Reference:
https://www.cisco.com/c/en/us/td/docs/iosxr/ncs5500/telemetry/70x/b-telemetry-cg-ncs5500-70x/b-telemetry-cg-ncs5500-70x_chapter_010.html

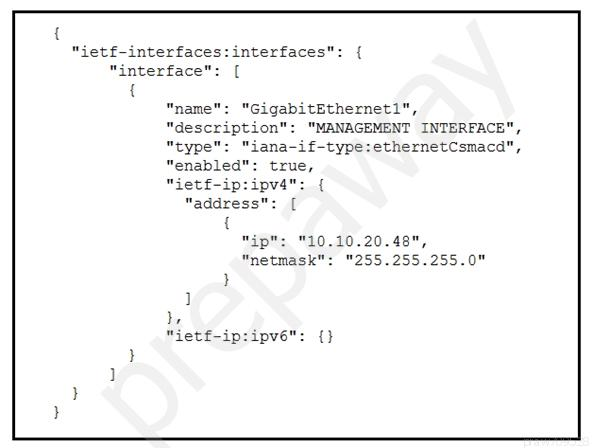

Refer to the exhibit. A RESTCONF GET request is sent to a Cisco IOS XE device. A portion of the response is shown in the exhibit. Which module name corresponds to the YANG model referenced in the request?

  • A. ietf-interfaces:ietf-ipv4
  • B. iana-if-type:ethernetCsmacd
  • C. ietf-interfaces:interfaces
  • D. ietf-interfaces


Answer : A

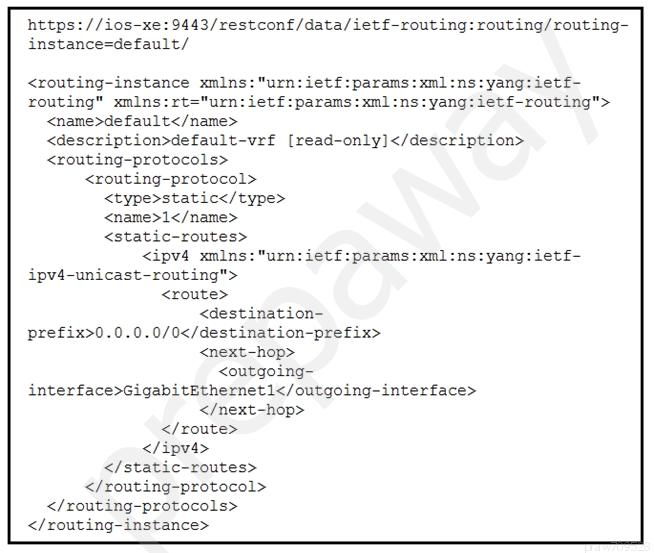

Refer to the exhibit. A RESTCONF GET request is sent to a Cisco IOS XE device. The base URL of the request and the response in XML format are shown in the exhibit. What is the YANG data node that is referenced in the response?

  • A. route is a leaf list
  • B. static-routes is a container
  • C. static-routes is a list
  • D. routing-instance is a container


Answer : A

Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/prog/configuration/166/b_166_programmability_cg/restconf_prog_int.pdf
