Which are valid modes for a switch port used as a VLAN trunk? (Choose three.)

  • A. transparent
  • B. auto
  • C. on
  • D. desirable
  • E. blocking
  • F. forwarding


Answer : B,C,D

Which statement about VLAN operation on Cisco Catalyst switches is true?

  • A. When a packet is received from an 802.1Q trunk, the VLAN ID can be determined from the source MAC address and the MAC address table.
  • B. Unknown unicast frames are retransmitted only to the ports that belong to the same VLAN.
  • C. Broadcast and multicast frames are retransmitted to ports that are configured on different VLAN.
  • D. Ports between switches should be configured in access mode so that VLANs can span across the ports.


Answer : B

What are the possible trunking modes for a switch port? (Choose three.)

  • A. transparent
  • B. auto
  • C. on
  • D. desirable
  • E. client
  • F. forwarding


Answer : B,C,D

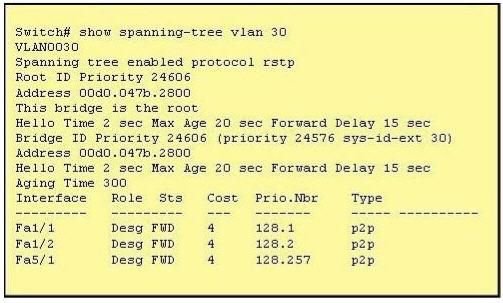

Refer to the exhibit.


The output that is shown is generated at a switch. Which three statements are true?
(Choose three.)

  • A. All ports will be in a state of discarding, learning, or forwarding.
  • B. Thirty VLANs have been configured on this switch.
  • C. The bridge priority is lower than the default value for spanning tree.
  • D. All interfaces that are shown are on shared media.
  • E. All designated ports are in a forwarding state.
  • F. This switch must be the root bridge for all VLANs on this switch.


Answer : ACE

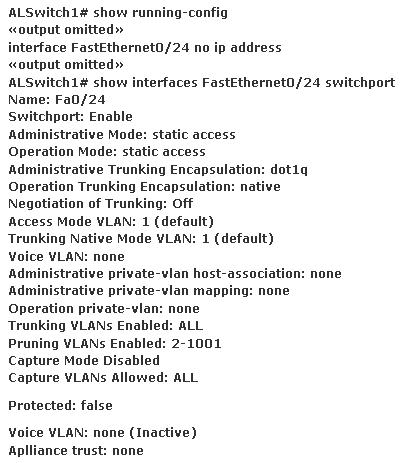

Refer to the exhibit.


Switch port FastEthernet 0/24 on ALSwitch1 will be used to create an IEEE 802.1Q- compliant trunk to another switch. Based on the output shown, what is the reason the trunk does not form, even though the proper cabling has been attached?

  • A. VLANs have not been created yet.
  • B. An IP address must be configured for the port.
  • C. The port is currently configured for access mode.
  • D. The correct encapsulation type has not been configured.
  • E. The “no shutdown” command has not been entered for the port.


Answer : C

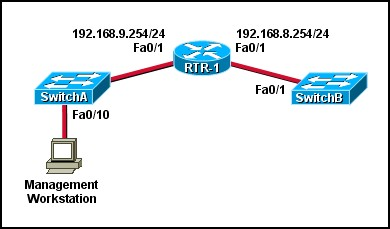

Refer to the exhibit.


A technician has installed SwitchB and needs to configure it for remote access from the

  • A. SwitchB(config)# interface FastEthernet 0/1 SwitchB(config-if)# ip address 192.168.8.252 255.255.255.0 SwitchB(config-if)# no shutdown
  • B. SwitchB(config)# interface vlan 1 SwitchB(config-if)# ip address 192.168.8.252 255.255.255.0 SwitchB(config-if)# ip default-gateway 192.168.8.254 255.255.255.0 SwitchB(config-if)# no shutdown
  • C. SwitchB(config)# ip default-gateway 192.168.8.254 SwitchB(config)# interface vlan 1 SwitchB(config-if)# ip address 192.168.8.252 255.255.255.0 SwitchB(config-if)# no shutdown
  • D. SwitchB(config)# ip default-network 192.168.8.254 SwitchB(config)# interface vlan 1 SwitchB(config-if)# ip address 192.168.8.252 255.255.255.0 SwitchB(config-if)# no shutdown
  • E. SwitchB(config)# ip route 192.168.8.254 255.255.255.0 SwitchB(config)# interface FastEthernet 0/1 SwitchB(config-if)# ip address 192.168.8.252 255.255.255.0 SwitchB(config-if)# no shutdown


Answer : C

Which IEEE standard protocol is initiated as a result of successful DTP completion in a switch over Fast Ethernet?

  • A. 802.3ad
  • B. 802.1w
  • C. 802.1D
  • D. 802.1Q


Answer : D

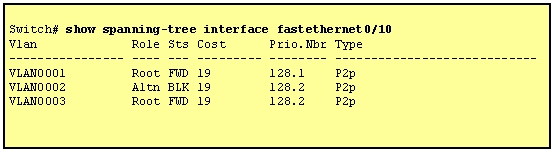

Refer to the exhibit.


Given the output shown from this Cisco Catalyst 2950, what is the reason that interface
FastEthernet 0/10 is not the root port for VLAN 2?

  • A. This switch has more than one interface connected to the root network segment in VLAN 2.
  • B. This switch is running RSTP while the elected designated switch is running 802.1d Spanning Tree.
  • C. This switch interface has a higher path cost to the root bridge than another in the topology.
  • D. This switch has a lower bridge ID for VLAN 2 than the elected designated switch.


Answer : C

Which two states are the port states when RSTP has converged? (Choose two.)

  • A. discarding
  • B. listening
  • C. learning
  • D. forwarding
  • E. disabled


Answer : A,D

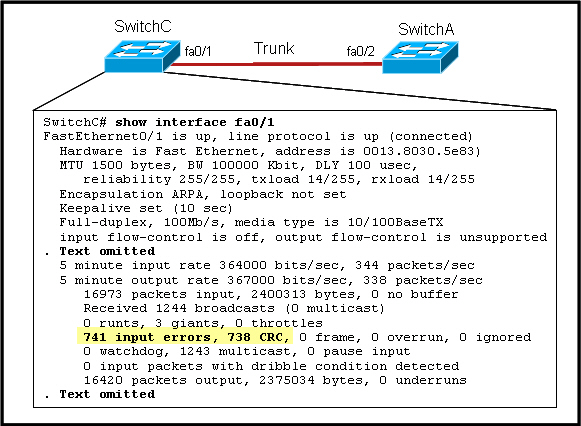

Refer to the exhibit.


Given this output for SwitchC, what should the network administrator's next action be?

  • A. Check the trunk encapsulation mode for SwitchC's fa0/1 port.
  • B. Check the duplex mode for SwitchC's fa0/1 port.
  • C. Check the duplex mode for SwitchA's fa0/2 port.
  • D. Check the trunk encapsulation mode for SwitchA's fa0/2 port.


Answer : C

Which switch would STP choose to become the root bridge in the selection process?

  • A. 32768: 11-22-33-44-55-66
  • B. 32768: 22-33-44-55-66-77
  • C. 32769: 11-22-33-44-55-65
  • D. 32769: 22-33-44-55-66-78


Answer : A

What parameter can be different on ports within an EtherChannel?

  • A. speed
  • B. DTP negotiation settings
  • C. trunk encapsulation
  • D. duplex


Answer : B

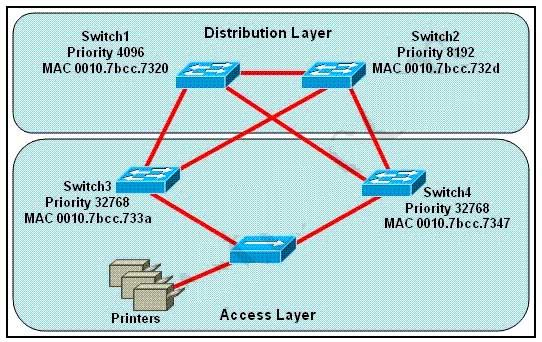

Refer to the exhibit.


Which switch provides the spanning-tree designated port role for the network segment that services the printers?

  • A. Switch1
  • B. Switch2
  • C. Switch3
  • D. Switch4


Answer : C

Which two benefits are provided by creating VLANs? (Choose two.)

  • A. added security
  • B. dedicated bandwidth
  • C. provides segmentation
  • D. allows switches to route traffic between subinterfaces
  • E. contains collisions


Answer : AC

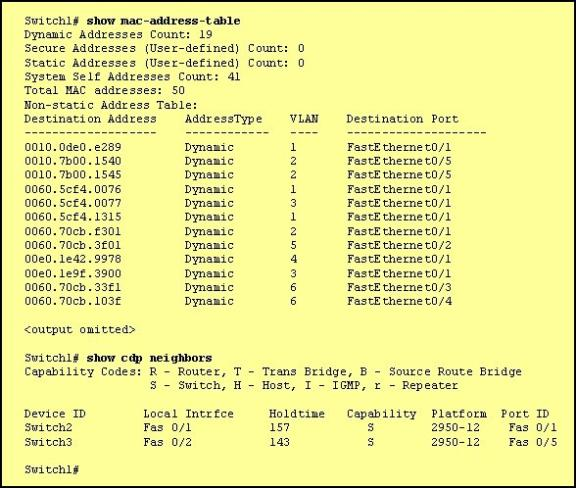

Refer to the exhibit.


Which two statements are true of the interfaces on Switch1? (Choose two.)

  • A. Multiple devices are connected directly to FastEthernet0/1.
  • B. A hub is connected directly to FastEthernet0/5.
  • C. FastEthernet0/1 is connected to a host with multiple network interface cards.
  • D. FastEthernet0/5 has statically assigned MAC addresses.
  • E. FastEthernet0/1 is configured as a trunk link.
  • F. Interface FastEthernet0/2 has been disabled.


Answer : B,E
