Citrix Virtual Apps and Desktops 7 Advanced Administration v1.0

Page:    1 / 7
Exam contains 102 questions

Scenario: A Citrix Engineer needs to use Citrix App Layering to create layered images for use with a Citrix Virtual Apps and Desktops environment.
The environment currently has the following (MCS) Machine Creation Services-provisioned images.
-Windows 10 Virtual Delivery Agent (VDA) machines with App A, App B, and App C installed
-Windows 10 VDA machines with App A and App B installed
Application A is a common app that is needed by all users. Application B is a time reporting app needed by all individual contributors, and Application C is a managerial app needed by executives, but restricted from use by everyone else.
The environment uses Citrix Hypervisor to host all VDA machines.
To meet the minimum requirements while reducing administrative effort, the engineer would need __________ layered image(s), using __________.

  • A. 1; an Elastic Layer
  • B. 1; a User Layer
  • C. 1; no Elastic or User Layers
  • D. 2; no Elastic or User Layers


Answer : B

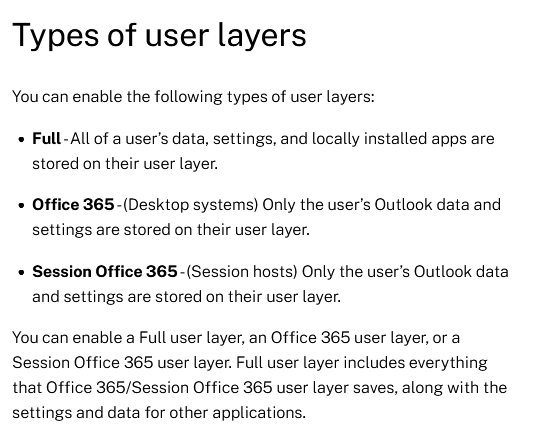

Which User Layer requires the least amount of administrative effort to store user settings limited to Microsoft Outlook data and settings for a hosted shared desktop solution based on Windows Server 2012?

  • A. Session Office 365
  • B. Citrix Profile Management with Full
  • C. Full
  • D. Office 365


Answer : A

Reference:
https://docs.citrix.com/en-us/citrix-app-layering/4/layer/enable-user-layers.html

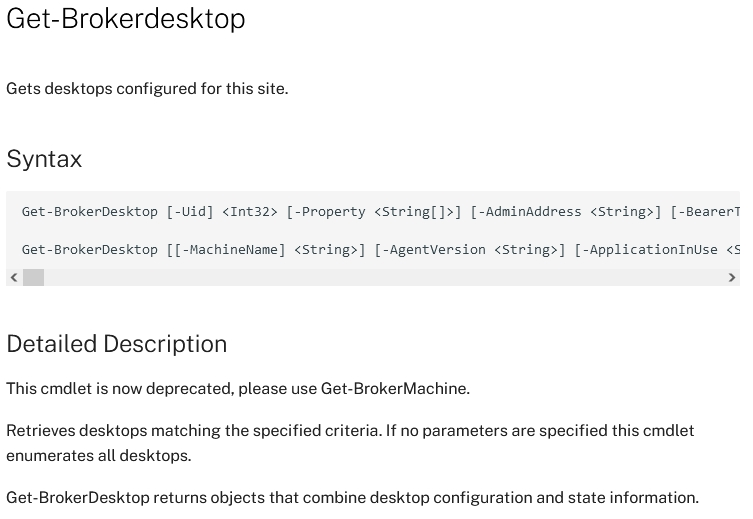

Which command can a Citrix Engineer use to get information about a Citrix Virtual Apps and Desktops setup?

  • A. Get-BrokerSite
  • B. Get-BrokerController
  • C. Get-BrokerDesktop
  • D. Get-BrokerSession


Answer : C

Reference:
https://developer-docs.citrix.com/projects/delivery-controller-sdk/en/latest/Broker/Get-BrokerDesktop/

Which two statements are true for Workspace Environment Management (WEM) Memory Management? (Choose two.)

  • A. WEM will NOT release the process's excess RAM to the page file when the process becomes idle.
  • B. WEM can exclude specific processes from being optimized.
  • C. WEM calculates how much RAM a process is using and the minimum amount of RAM a process needs.
  • D. WEM optimizes specific applications during a desktop session based on priority.


Answer : CD

Scenario: A Citrix Engineer needs to upgrade a large Citrix Virtual Apps and Desktops environment to a higher version. The engineer is looking for information on
Delivery Controller and Virtual Delivery Agent (VDA) machine Microsoft hotfixes and service packs along with the site information and the License Server information.
Which tool should the engineer use to extract the required information?

  • A. Citrix Diagnostic Facility (CDF) Control
  • B. Citrix Director
  • C. Citrix Diagnostic Facility (CDF) Monitor
  • D. Citrix Scout


Answer : B

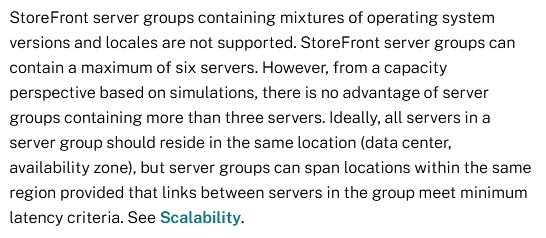

What does a Citrix Engineer need to know when adding a new StoreFront server, in terms of StoreFront scalability?

  • A. StoreFront server groups containing a combination of operating systems are supported.
  • B. All servers in a server group must reside in the same location.
  • C. All servers in a server group can reside in multiple locations.
  • D. StoreFront server groups containing a combination of StoreFront versions are supported.


Answer : B

Reference:
https://docs.citrix.com/en-us/storefront/3-12/system-requirements.html

Scenario: A Citrix Engineer needs to integrate the current Citrix Gateway with the StoreFront servers. During the wizard setup, the engineer was asked to add two
Secure Ticket Authority (STA) servers as Citrix leading practice for high availability.
The engineer should add two __________ servers as STA servers to accomplish this.

  • A. Delivery Controller
  • B. StoreFront
  • C. Citrix Cloud Connector
  • D. Domain Controller


Answer : C

Scenario: A Citrix Engineer administering a Citrix Virtual Apps and Desktops environment is experiencing inconsistency with Virtual Delivery Agent (VDA) registration. After much investigation, the engineer determined the issue is resulting from intermittent problems with the Windows services on the VDA machine and the Delivery Controller.
Which set of Citrix services should the engineer troubleshoot to find the root cause?

  • A. BrokerAgent.exe and BrokerService.exe
  • B. BrokerAgent.exe and Citrix.Host.exe
  • C. BrokerService.exe and Citrix.Host.exe
  • D. PicaSvc2.exe and BrokerService.exe


Answer : A

Scenario: A Citrix Engineer needs to make a change to the OS Layer. The OS Layer is currently used in several layered images that include different application layers.
Which two steps should the engineer take to make the necessary changes to the OS Layer and the layered images while minimizing administrative effort?
(Choose two.)

  • A. Update all application layers associated with the existing OS Layer.
  • B. Recreate all application layers associated with the existing OS Layer.
  • C. Create new templates that include the required layers.
  • D. Update the existing OS Layer with the needed changes.
  • E. Update all templates that include the existing OS Layer.
  • F. Create a new OS Layer with the needed changes.


Answer : BD

Scenario: A Citrix Engineer is managing Virtual Delivery Agent (VDA) registrations in a Citrix Virtual Apps and Desktops environment.
In which two types of deployments will the auto-update policy for VDA registration be self-managed? (Choose two.)

  • A. Deployments that use Citrix Provisioning with a write cache drive.
  • B. Deployments that use the Delivery Controllers or Controller SIDs policy setting.
  • C. Deployments that do NOT use Controller groups.
  • D. Deployments that use ListOfSIDs.


Answer : BD

Reference:
https://docs.citrix.com/en-us/xenapp-and-xendesktop/7-6-long-term-service-release/xad-controller-intro.html

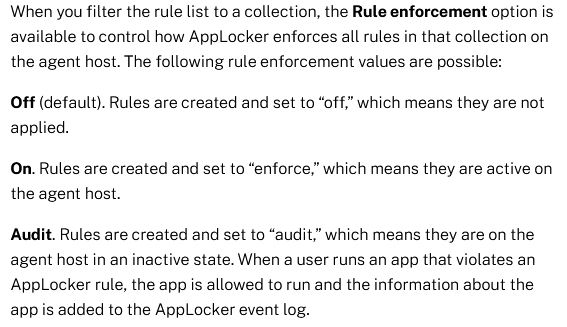

Which two statements are true regarding the Application Security feature of Workspace Environment Management (WEM)? (Choose two.)

  • A. It is recommended to NOT use both WEM Application Security and Windows AppLocker interfaces at the same time to manage rules.
  • B. Application Security rules set to "Audit" are still enforced.
  • C. Exported Windows AppLocker rules CANNOT be imported into WEM.
  • D. It provides control over which applications users are permitted to run on a given machine.


Answer : BD

Reference:
https://docs.citrix.com/en-us/workspace-environment-management/current-release/user-interface-description/security.html

Which two statements are valid regarding communication of Flexcast Management Architecture (FMA) services with the database? (Choose two.)

  • A. Monitoring Service will NOT have an additional separate connection to a secondary database.
  • B. Configuration Logging will NOT have an additional separate connection to a secondary database.
  • C. Each of the Citrix services establishes its own direct connection to the site database.
  • D. Each of the Citrix services use Citrix Configuration Service (CCS) to connect to the site database.
  • E. Configuration Logging will have an additional separate connection to a secondary database.


Answer : CD

Scenario: A Citrix Engineer is maintaining a Citrix Virtual Apps and Desktops environment and has deployed Workspace Environment Management (WEM) within the infrastructure to provide resources to users in their sessions. The engineer initially deployed a Network Printer and it is working correctly for all users in their sessions. Recently, the engineer added a second resource, a Network Share Drive, and users are reporting that it is never available in their sessions.
The engineer verified the Action for this Network Share Drive to ensure it is correctly configured, and the required Conditions are listed under the WEM Filters node. The Everyone group has already been added to the Assignments node within the WEM console.
What should the engineer enable from the Advanced Settings node to correct this issue?

  • A. The Agent Options to Enforce Network Drives Filters Processing
  • B. The Agent Actions option to Process Virtual Drivers
  • C. The Agent Actions option to Process Network Drivers
  • D. The Agent Options to Enforce Virtual Drives Filters Processing


Answer : C

In which two situations should a Citrix Engineer consider using Elastic App Layers? (Choose two.)

  • A. A few managers need to be able to install applications when accessing a layered image.
  • B. Specific applications have compatibility issues and are needed by all users in the company.
  • C. A specific suite of applications exhibits performance issues for users.
  • D. A specific application is only needed by a few users in the Marketing department.
  • E. A number of custom Human Resource applications are utilized by a few managers within the company.


Answer : AD

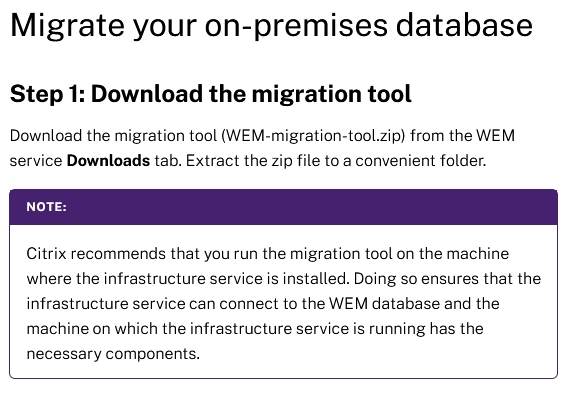

What is the first step in the migration process of an on-premises Workspace Environment Management (WEM) environment that is currently in production to a
WEM Citrix Cloud service?

  • A. Reinstall the WEM service agent on managed machines.
  • B. Export the data within the database to a SQL file.
  • C. Download the migration tool from the WEM service Downloads tab.
  • D. Modify permissions on the infrastructure service.


Answer : C

Reference:
https://docs.citrix.com/en-us/workspace-environment-management/service/migrate.html
