Supporting Cisco Data Center System Devices (DCTECH) v1.0
Question 1

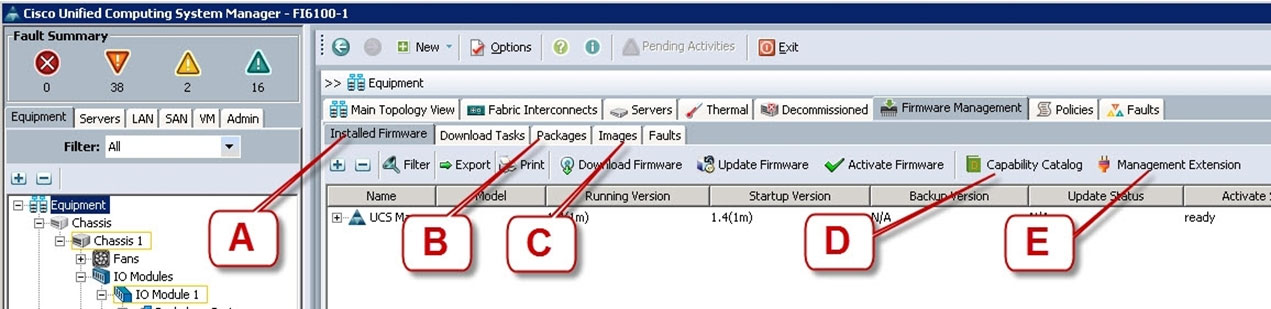

Refer to the exhibit.
Where is the best place to find the B200 BIOS version used in a specific Cisco UCS Manager version?
- A. A - Installed Firmware
- B. B - Packages
- C. C - Images
- D. D - Capability Catalog
- E. E - Management Extension
Answer : B
Question 2

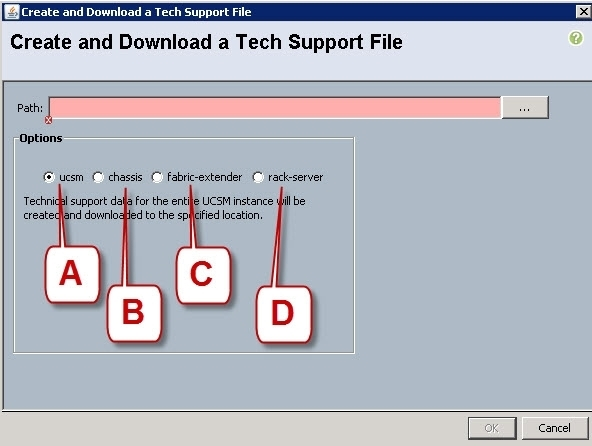

Refer to the exhibit.
Which option should you select to get the output of the show tech-support detail command for the Cisco UCS B-Series blade?
- A. A - ucsm
- B. B - chassis
- C. C - fabric-extender
- D. D - rack-server
Answer : B
Question 3

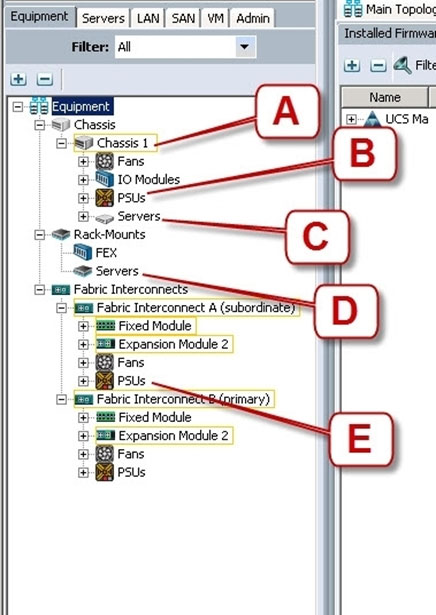

Refer to the exhibit.
Where is the best place to see the power supply status of the blade server enclosure?
- A. A - Chassis 1
- B. B - Chassis 1 - PSUs
- C. C - Chassis1 - Servers
- D. D - Rack-Mounts - Servers
- E. E - Fabric Interconnects A - PSUs
Answer : B
Question 4
To do a password recovery on a Cisco NX-OS Switch, which option shows the correct syntax to display the bootflash contents at the switch(boot)#?
- A. display bootflash:
- B. show bootflash:
- C. dir bootflash:
- D. find bootflash:
Answer : C
Question 5
Which Cisco NX-OS command displays kernel uptime?
- A. show module
- B. show version
- C. show license
- D. show boot
- E. show interface
Answer : B
Question 6
Which two commands display the version of Cisco NX-OS code that the device is currently running on? (Choose two.)
- A. show version
- B. show module
- C. show interface
- D. show boot
- E. show license
Answer : AB
Question 7
On the Sensors page from the CIMC view, which four tabs are displayed to view further information? (Choose four.)
- A. Power Supply
- B. Fan
- C. Memory
- D. CPU
- E. LEDs
- F. Temperature
Answer : ABEF
Question 8
Which three options are the minimum browser requirements to log into the Cisco CIMC GUI? (Choose three.)
- A. Java 1.6 or higher
- B. HTTP and HTTPS enabled
- C. Adobe Flash Player 10 or higher
- D. Internet Explorer version 10
- E. Firefox 26.0
- F. Adobe Shockwave Player 11 or higher
Answer : ABC
Question 9
Which tool does a network administrator not need when installing hardware?
- A. cable tester
- B. wrench set
- C. cable wraps
- D. needle-nose pliers
- E. PCMCIA memory
- F. soldering iron with grounded tip
Answer : F
Question 10
When the Cisco UCS Manager is used to verify the B- or C-Series device, which two types of Overall Status are acceptable and do not indicate a failure?
(Choose two.)
- A. Online
- B. OK
- C. Unassociated
- D. Active
Answer : BC
Question 11
What is the correct path to verify the Overall Status of Chassis 1 | Server 3?
- A. Equipment Tab > Chassis > Chassis 1 > Servers > Server 3 Status tab
- B. Equipment Tab > Chassis > Chassis 1 > Servers > Server 3 General tab
- C. Equipment Tab > Chassis > Chassis 1 > Servers > Server 3 FSM tab
- D. Servers Tab > Chassis > Server 3 General tab
- E. Status Tab > Chassis > Chassis 1 > Servers > Server 3
- F. Admin Tab > Chassis > Chassis 1 > Servers > Server 3 General tab
Answer : B
Question 12
If the Overall Status for a Cisco UCS B-Series Blade Server indicates a failure in the Cisco UCS Manager, such as discovery-failed, which statement is true?
- A. The server shuts down.
- B. The server automatically reboots reboot in 3 minutes.
- C. The endpoints on that server cannot be upgraded.
- D. The server is online, but the administrator cannot assign a service profile to that blade.
Answer : C
Question 13
Which action should the administrator take before physically removing a blade server for maintenance or replacement?
- A. Force the server to shut down.
- B. Disassociate the service profile.
- C. Decommission the server.
- D. Perform a graceful shutdown of the server.
Answer : C
Question 14
Which three statements about powering down a Cisco UCS C-Series Rack-Mount Server to perform maintenance or replacement are true? (Choose three.)
- A. Standby power mode: Power is supplied only to the service processor and the cooling fans, and it is safe to power off the server from this mode.
- B. Power status LED. Green indicates that the server is in main power mode and can be safely powered off.
- C. Graceful shutdown: Press and release the power button. The operating system performs a graceful shutdown, and the server goes to standby mode, which is indicated by an amber power status LED.
- D. Disconnect the power cords from the power supplies in your server to completely power off the server.
- E. Only an emergency shutdown can be performed using the power button on the server front panel.
- F. The Cisco UCS C-Series Rack-Mount Server has only one power mode.
Answer : ACD
Question 15
Which three components are hot swappable in a Cisco UCS Blade Server and Chassis? (Choose three.)
- A. Fabric Extender
- B. Power supply
- C. Heat sink
- D. SAS Hard Drive
- E. 2x8GB Kit DIMMs
- F. Mezzanine card
Answer : ABD
